IL30-95/6H-M20 FKL

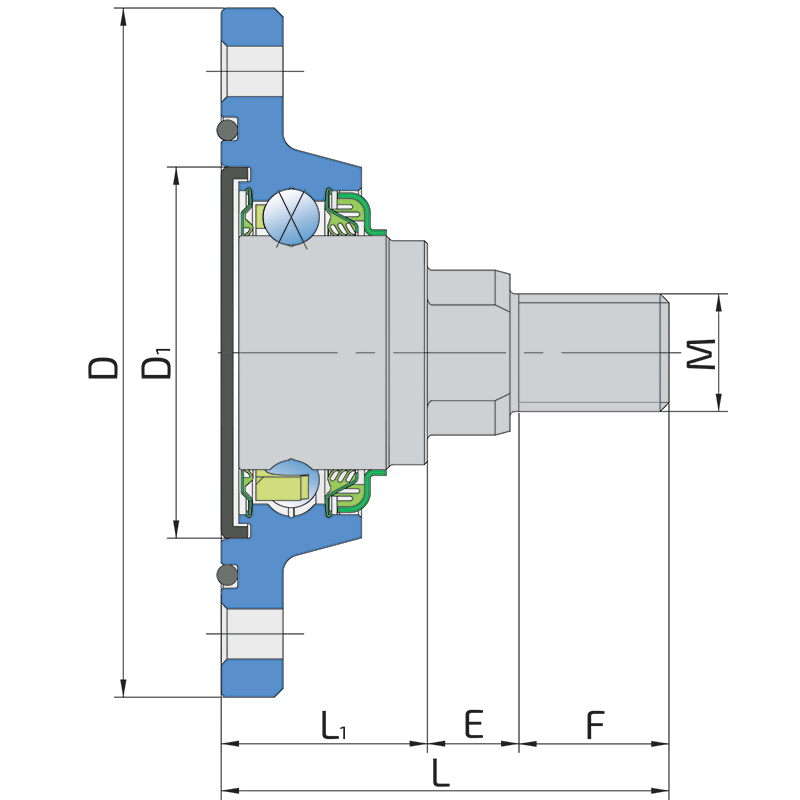

Technical datasheet:

J	Pitch circle diameter	95.5
D	Outside diameter	117
D1	Outside diameter	63
H/T	Hole/Thread	6x8.5
d	Bore diameter	28
C	D-shape hole cut out dimension	25.4
M	Outher Thread	M20
L	Total length	76
L1	Total flange length	35
E	Length of D shape	15.5
F	Length of threaded part	25.5
kg	Mass	1.21
Cdyn	Dynamic load rating	29.6
Co	Static load rating	21
Pu	Fatigue load limit	0.88

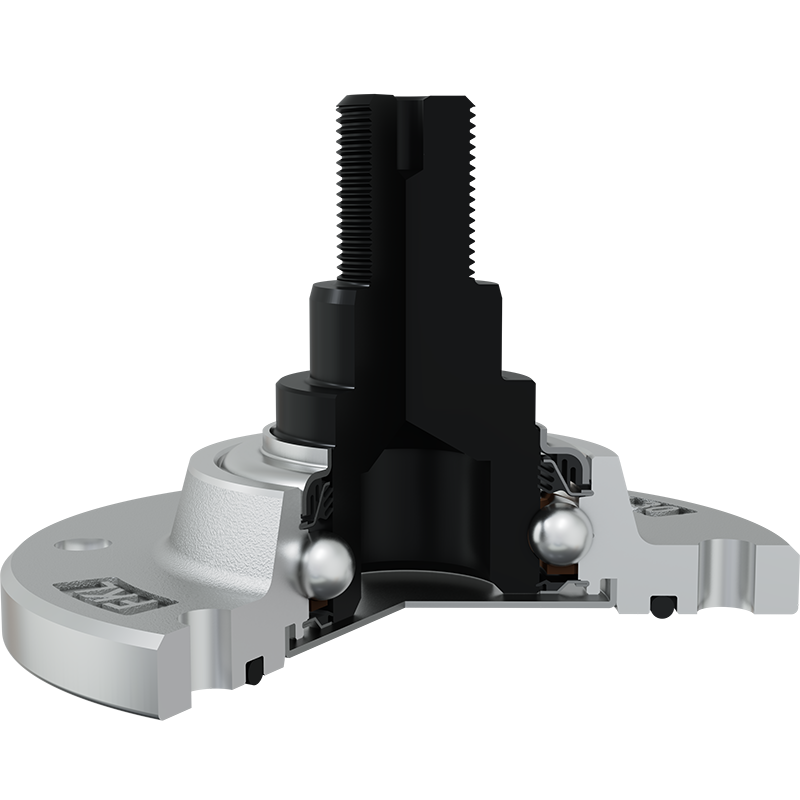

O-RING+SHEET METAL SHIELD+S SEAL / DOUBLE T SEAL+STEEL SHIELD

O-ring with Sheet metal shield and S seal on the base side and the double 3-lip seal with Steel shield on the front side. O-ring with Sheet metal shield and S seal on the base side completely excludes all contaminants. Double 3-lip seal protects the front side mauch longer than the just comaparing to the regular one 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
