IL30-98/4T-B30 FKL

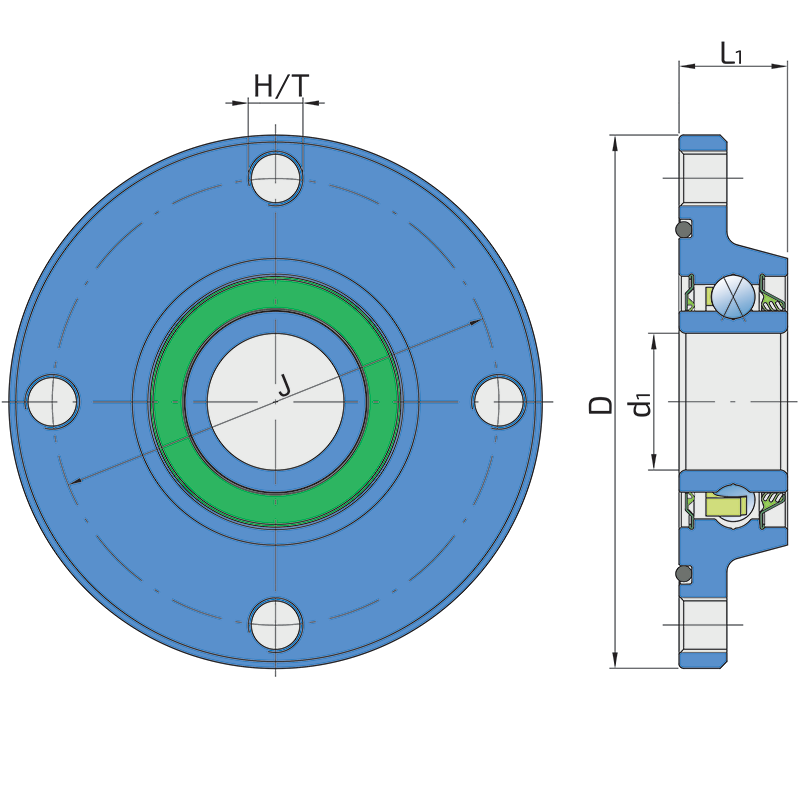

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
H/T	Hole/Thread	4xM12x1.25
d1	Bore diameter	30
L1	Total flange length	23.8
kg	Mass	0.91
Cdyn	Dynamic load rating	29.6
Co	Static load rating	21
Pu	Fatigue load limit	0.88

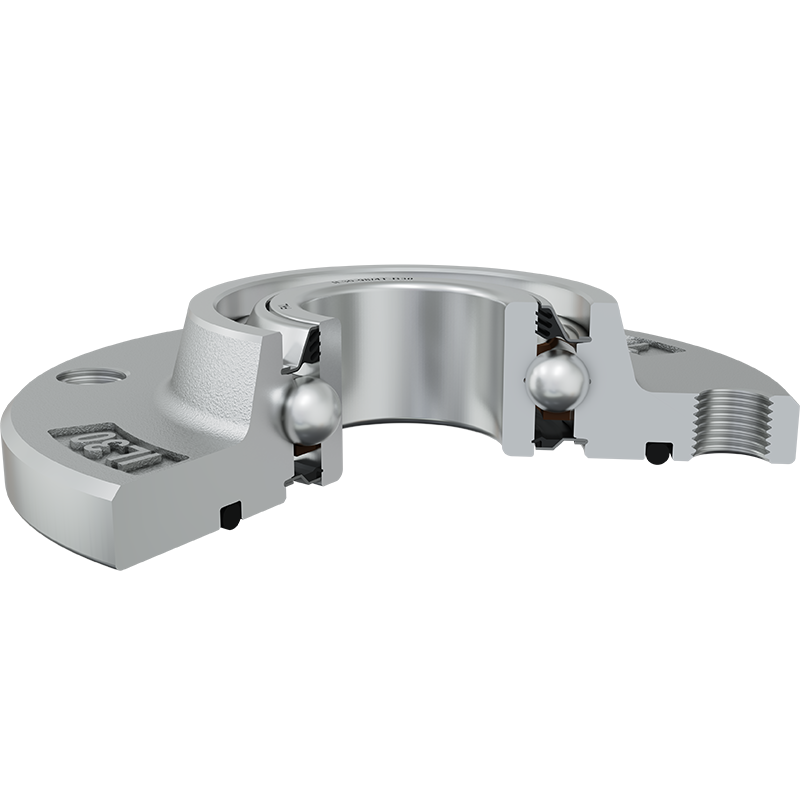

S SEAL / T SEAL

S seal on the base side and 3-lip seal on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration.
