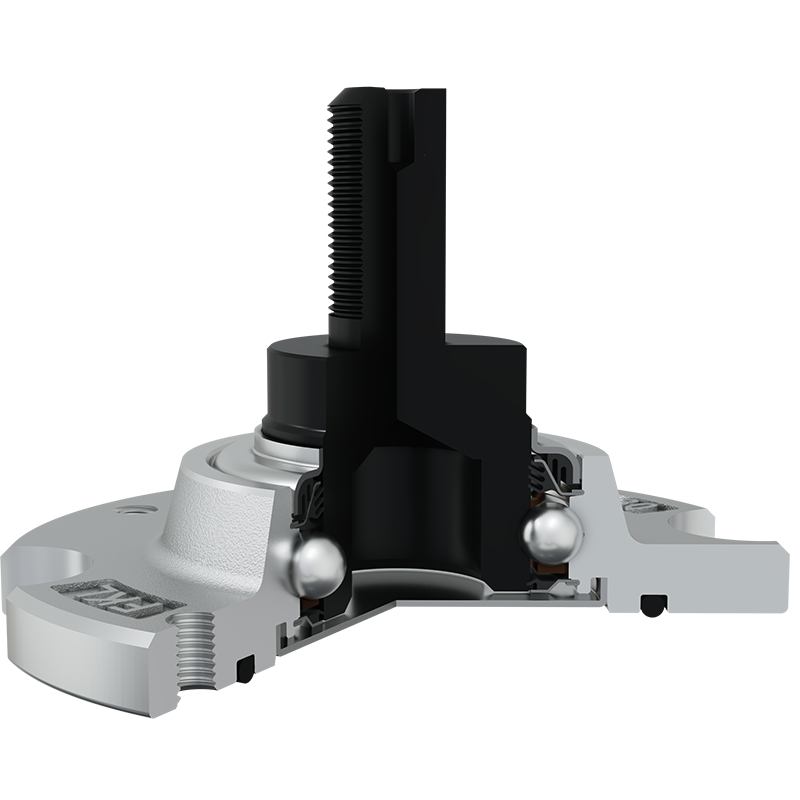

IL30-98/4T-M20 FKL

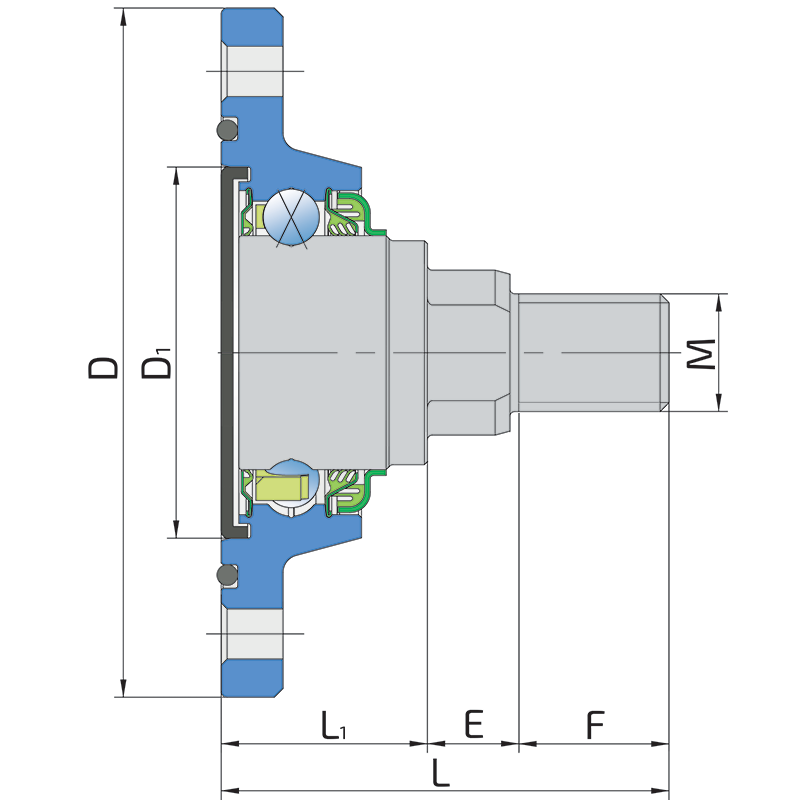

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
D1	Outside diameter	63
H/T	Hole/Thread	4xM8
d	Bore diameter	20
C	D-shape hole cut out dimension	17
M	Outher Thread	M20
L	Total length	77
L1	Total flange length	40
E	Length of D shape	7
F	Length of threaded part	30
kg	Mass	1.14
Cdyn	Dynamic load rating	29.6
Co	Static load rating	21
Pu	Fatigue load limit	0.88

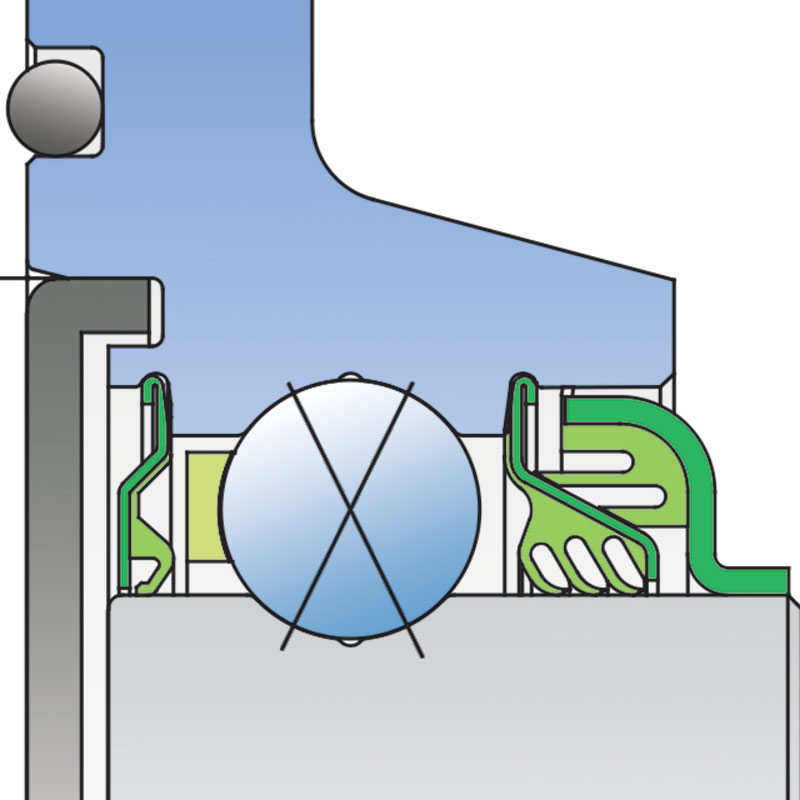

O-RING+SHEET METAL SHIELD+S SEAL / DOUBLE T SEAL+STEEL SHIELD

O-ring with Sheet metal shield and S seal on the base side and the double 3-lip seal with Steel shield on the front side. O-ring with Sheet metal shield and S seal on the base side completely excludes all contaminants. Double 3-lip seal protects the front side mauch longer than the just comaparing to the regular one 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
