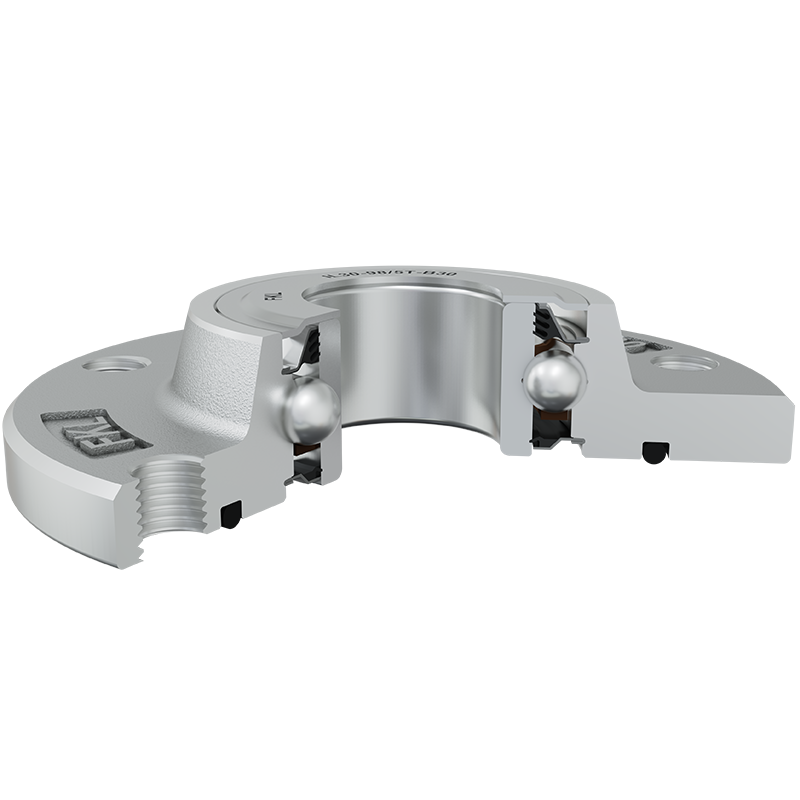

IL30-98/5T-B30 FKL

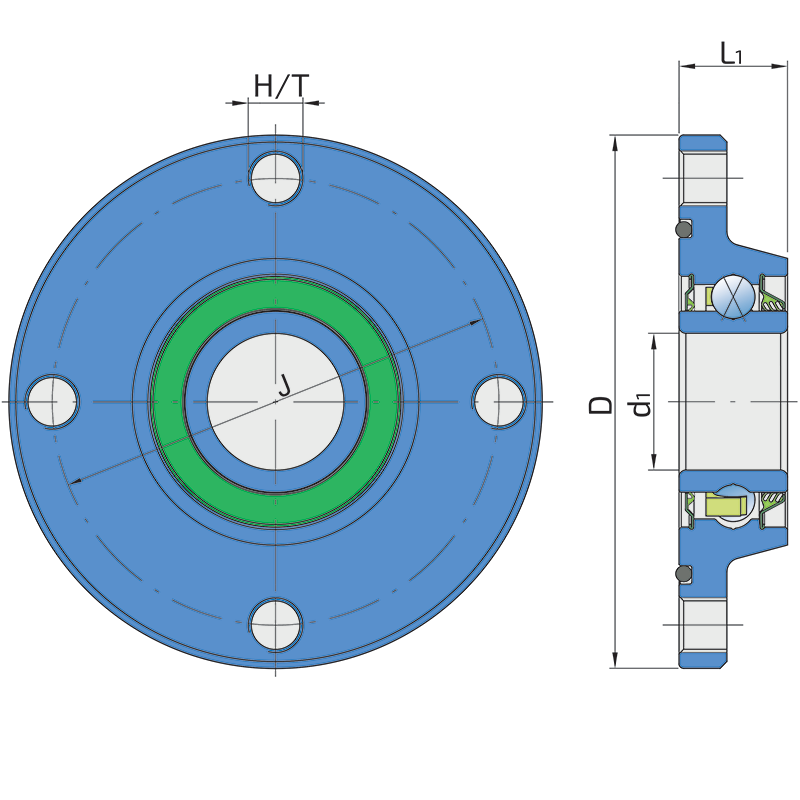

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
H/T	Hole/Thread	5xM12x1.5
d1	Bore diameter	30
L1	Total flange length	24.8
kg	Mass	0.93
Cdyn	Dynamic load rating	29.6
Co	Static load rating	21
Pu	Fatigue load limit	0.88

S SEAL / T SEAL

S seal on the base side and 3-lip seal on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration.
