IL35-88/4T-04 FKL

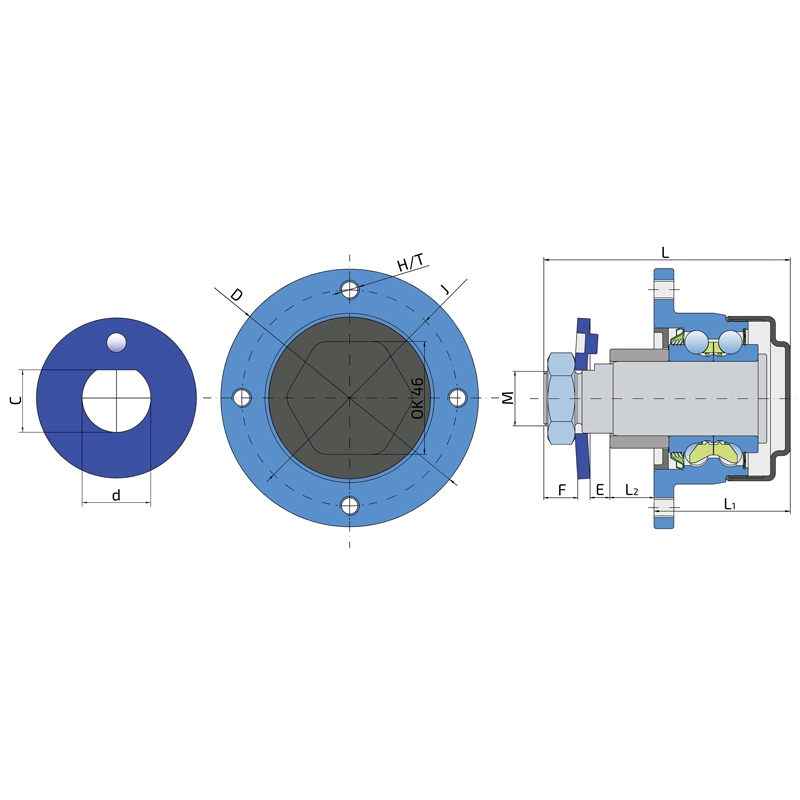

Technical datasheet:

J	Pitch circle diameter	88
D	Outside diameter	105
H/T	Hole/Thread	4xM8x1.25
d	Bore diameter	30
C	D-shape hole cut out dimension	24.7
M	Outher Thread	M22x1.5
L	Total length	99.5
L1	Total flange length	55
L2	The distance from the machine carrier to the disc	17,8
E	Length of D shape	8
F	Length of threaded part	13.5
kg	Mass	1.75
Cdyn	Dynamic load rating	37.5
Co	Static load rating	26.5
Pu	Fatigue load limit	1.11

PLASTIC COVER+T SEAL / RS SEAL+METAL PROTECTIVE CAP

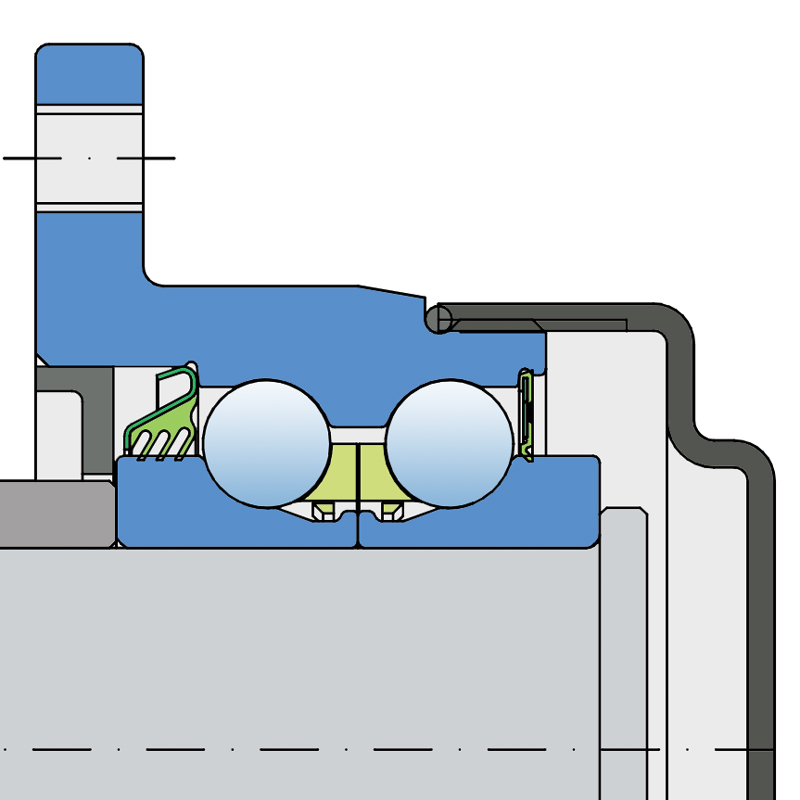

Sealing PLASTIC COVER+T SEAL / RS SEAL+METAL PROTECTIVE CAP 3-lip seal on the base side and the RS seal with metal protective cap on the front side. The plastic cover on the base side protects the seal from mechanical damage. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. The RS seal with a Metal protective cap on the front side eliminates bearing contaminants.
