IL35-88/4T-B30 FKL

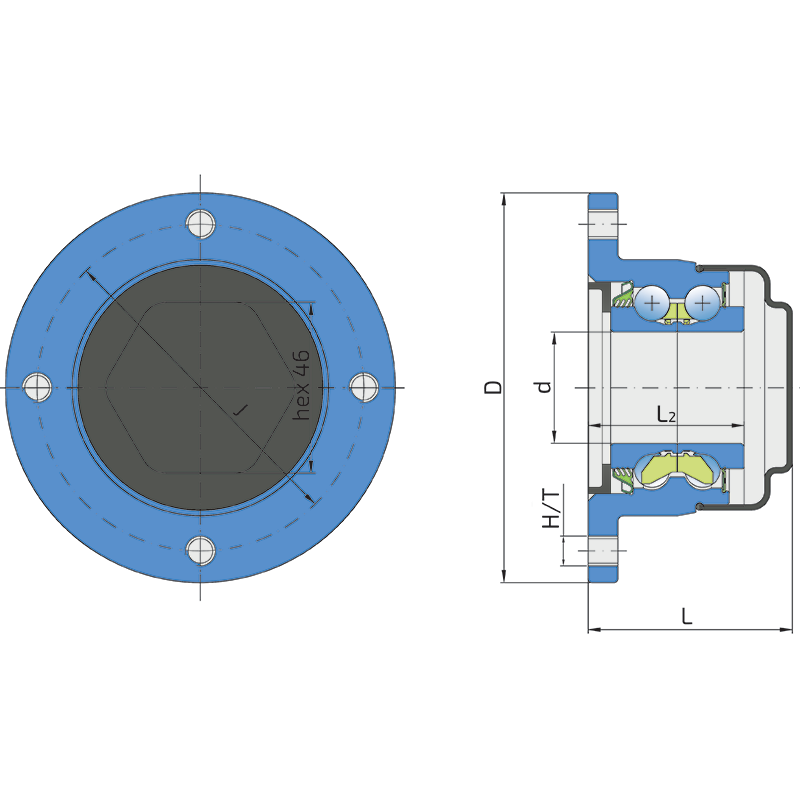

Technical datasheet:

J	Pitch circle diameter	88
D	Outside diameter	105
H/T	Hole/Thread	4x8x1.25
d	Bore diameter	30
L	Total length	55
L2	Bearing width	42
kg	Mass	1
Cdyn	Dynamic load rating	37.5
Co	Static load rating	26.5
Pu	Fatigue load limit	1.11

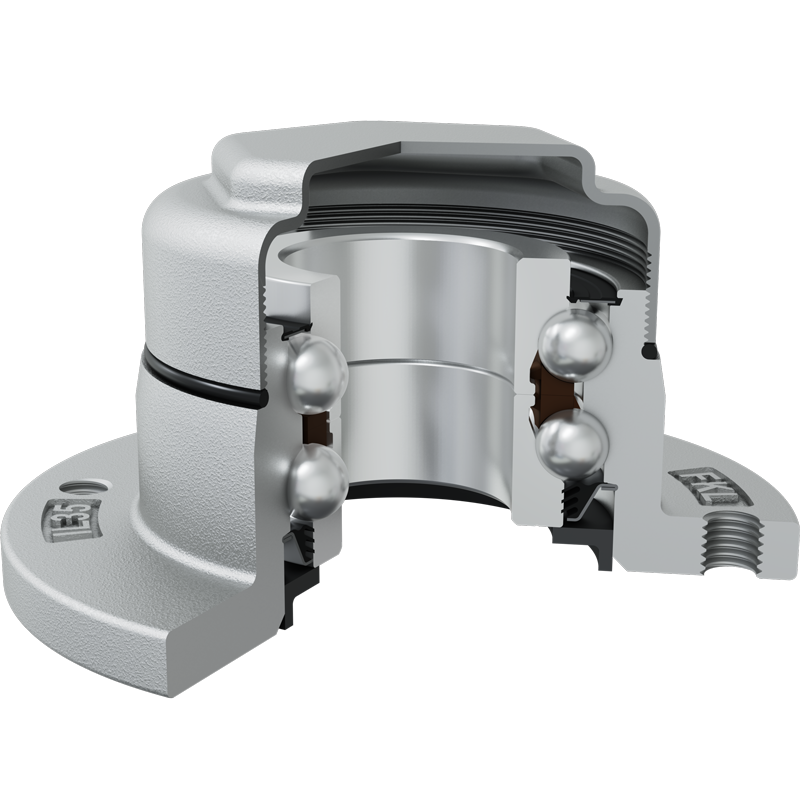

PLASTIC COVER+T SEAL / RS SEAL+METAL PROTECTIVE CAP

Sealing PLASTIC COVER+T SEAL / RS SEAL+METAL PROTECTIVE CAP 3-lip seal on the base side and the RS seal with metal protective cap on the front side. The plastic cover on the base side protects the seal from mechanical damage. 3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination. The RS seal with a Metal protective cap on the front side eliminates bearing contaminants.
