IL40-112/5T-M24x2 FKL

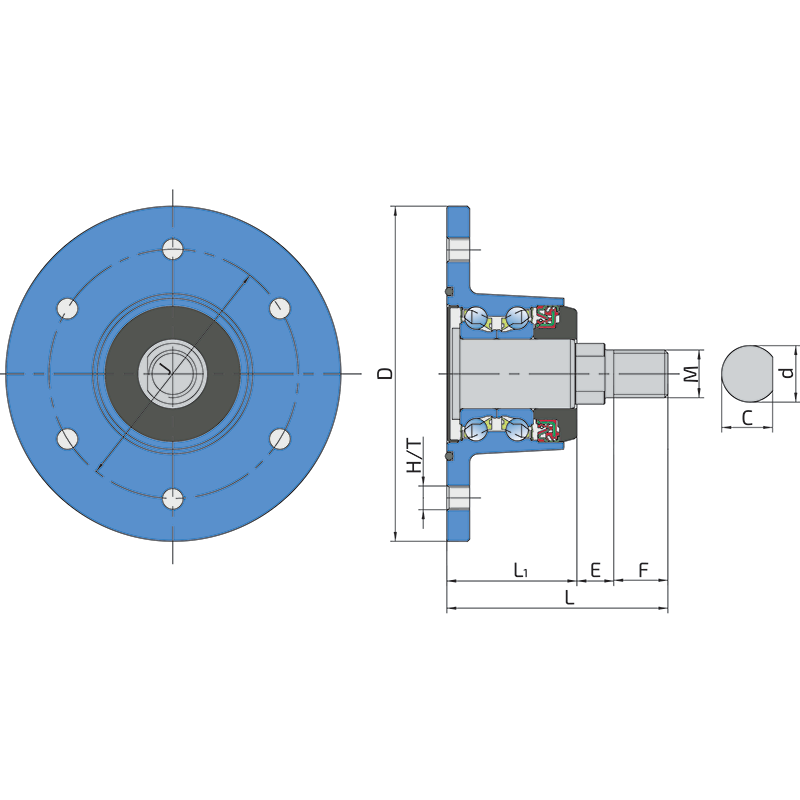

Technical datasheet:

J	Pitch circle diameter	112
D	Outside diameter	145
H/T	Hole/Thread	5xM12x1.5
d	Bore diameter	30
C	D-shape hole cut out dimension	28
M	Outher Thread	M24x2
L	Total length	101
L1	Total flange length	55
E	Length of D shape	21
F	Length of threaded part	25
kg	Mass	2.48
Cdyn	Dynamic load rating	42.9
Co	Static load rating	36.3
Pu	Fatigue load limit	1.53

Interchange:

OEM	Manufacturer	Comments
A135051530	KVERNELAND
A135413900	KVERNELAND
A139222778	KVERNELAND
AC357052	KVERNELAND
AC35705201	KVERNELAND
AGHK35112X5D-6L	SKF
AGHU35112X5D-6L	SKF
AGHU35112X5E-6L	SKF
AHU30140A-01	NWG
HUB-35MM	PEER
HUB-35MM-ASSY-A519	PEER
KIT-HUB-35MM-ASSY-A74	PEER
RF30701X0	KVERNELAND

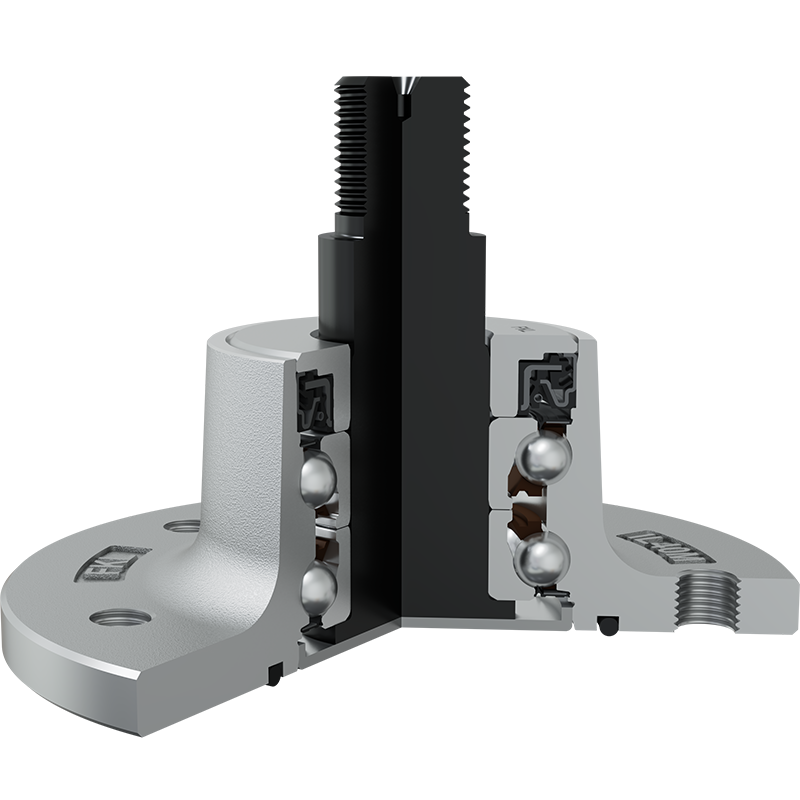

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
