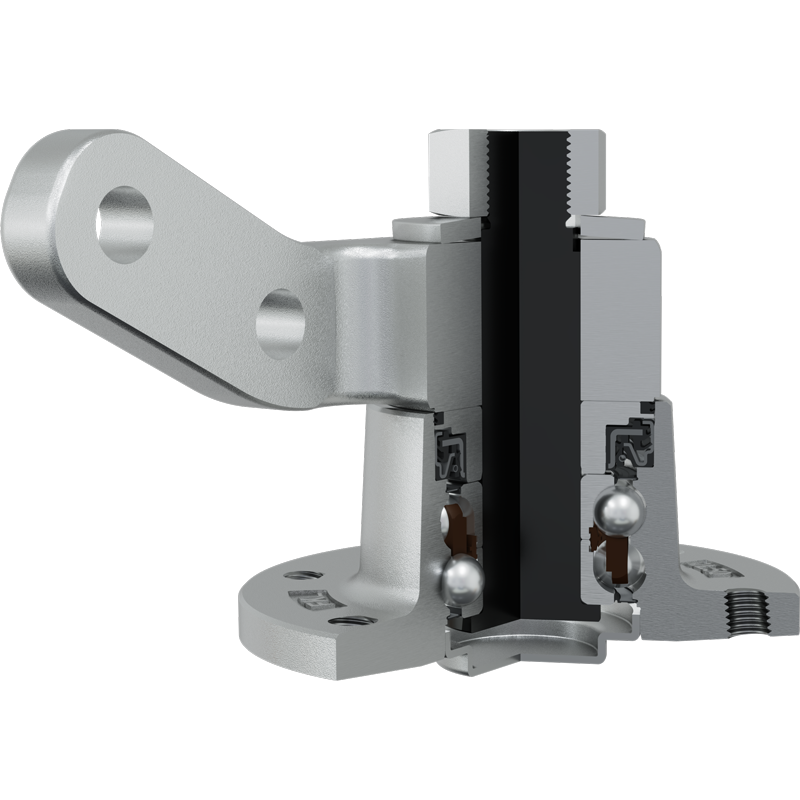

IL50-120/6T-44-R635-ED2 FKL

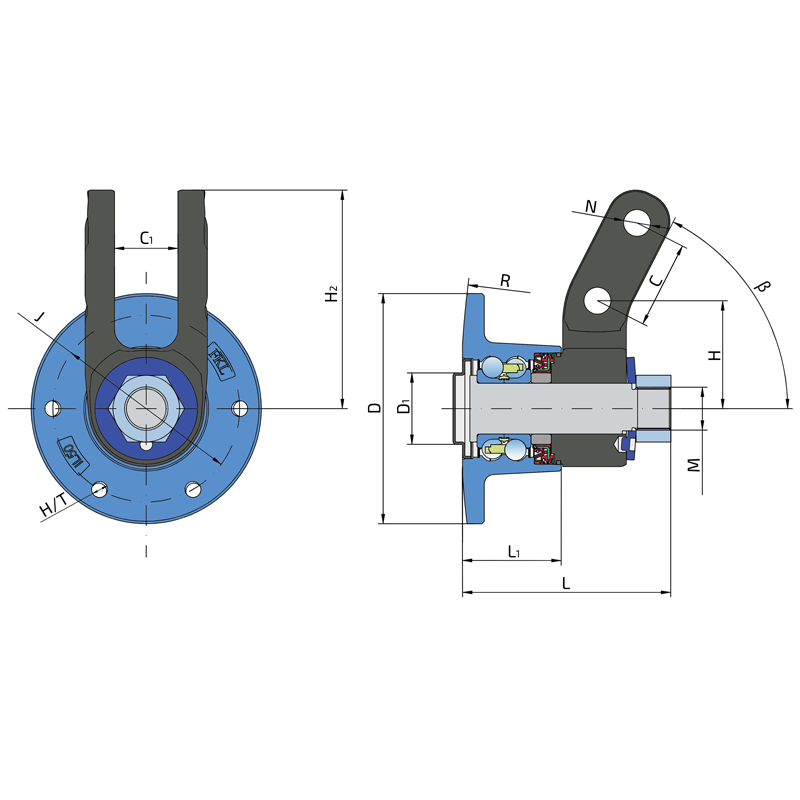

Technical datasheet:

J	Pitch circle diameter	120
D	Outside diameter	145
D1	Centar bore on the disc	45
C	Distance between holes	55
C1	Disk harrow arm width	40
M	Outher Thread	M27x2
H/T	Hole/Thread	6xM12x1.75
H	Distance between the bearing axis and the mounting hole	68
H2	Distance between the bearing axis and the end of the holder	137.7
N	Hole diameter	17
L	Total length	131.2
L1	Total flange length	62.2
R	The radius of the built-in disk	635
β	Angle of the holder	63
kg	Mass	6.08
Cdyn	Dynamic load rating	60
Co	Static load rating	45.8
Pu	Fatigue load limit	1.92

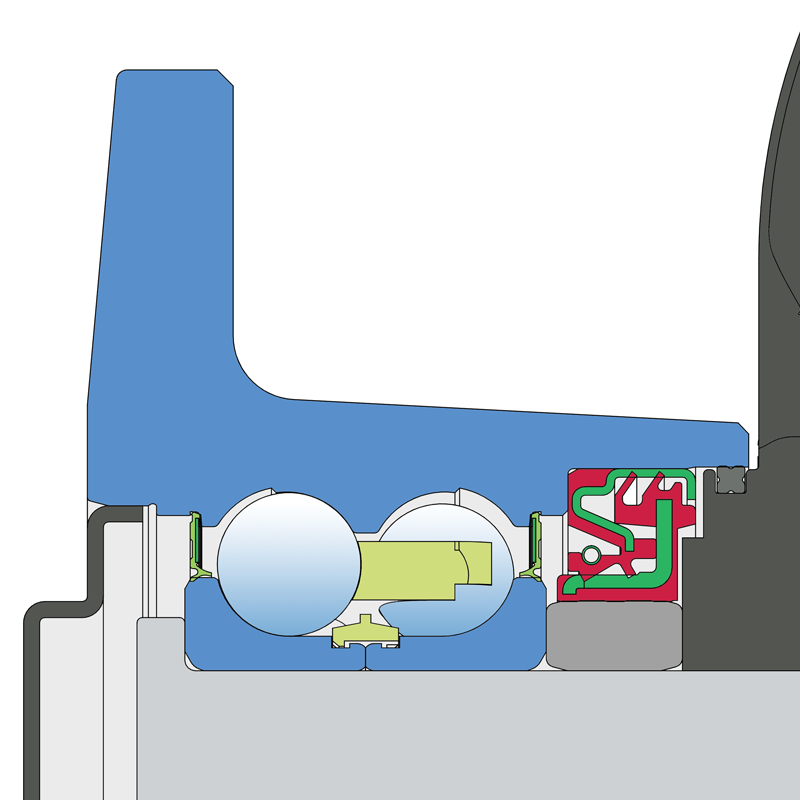

SHEET METAL SHIELD + RS SEAL / RS SEAL + DIRTBLOCK SEAL + X-RING + FORGED COVER PLATE

Sealing SHEET METAL SHIELD + RS SEAL / RS SEAL + DIRTBLOCK SEAL + X-RING + FORGED COVER PLATE Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal, X-ring and Forged cover plate on the front side which is exposed to contaminants. Sheet metal shield and RS seal together with attached special disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. Additional sealing in the form of an X-ring protects the bearing from contaminant penetration and ensures a longer service life of the bearing.
