IL50-125/6T-M30x2-164 FKL

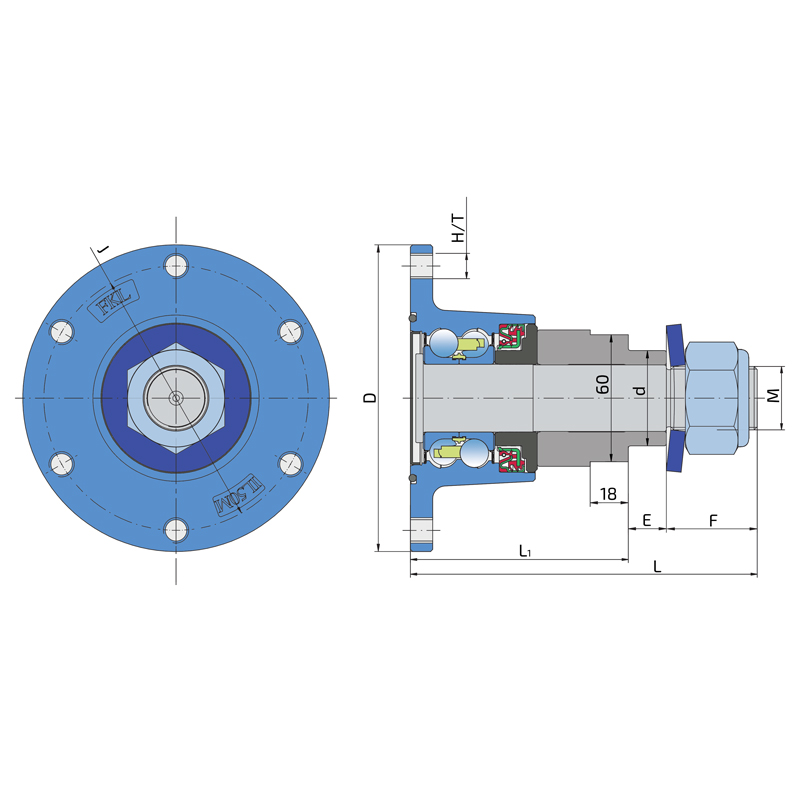

Technical datasheet:

J	Pitch circle diameter	125
D	Outside diameter	145
H/T	Hole/Thread	6xM12x1.5
d	Installation diameter of the shaft	45
M	Outher Thread	M30x2
L	Total length	164
L1	Total flange length	103
E	Length of D shape	18
F	Length of threaded part	43
kg	Mass	4.789
Cdyn	Dynamic load rating	60
Co	Static load rating	45.8
Pu	Fatigue load limit	1.92

Interchange:

OEM	Manufacturer	Comments
28283500	HORSCH
28283600	HORSCH
28288000	HORSCH

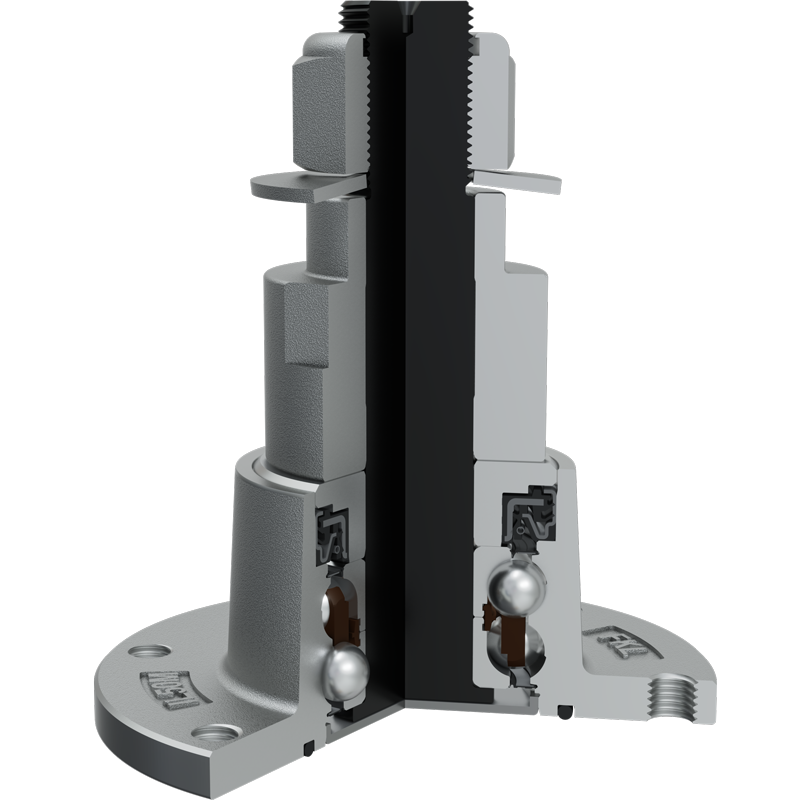

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
