Product number:

IL2-117-F(IL 50-98/4T-B30-F)

Brand:

Product name:

csapágyegység

Sizes:

30X117X61

Replacements:

152271 IL 50-98/4T-B30-F BAA-0003 A IL2-117-F 440488 PHA0003 PHA0003K AGRH0005

Inquiry Subscribe

IL50-98/4T-B30-F FKL

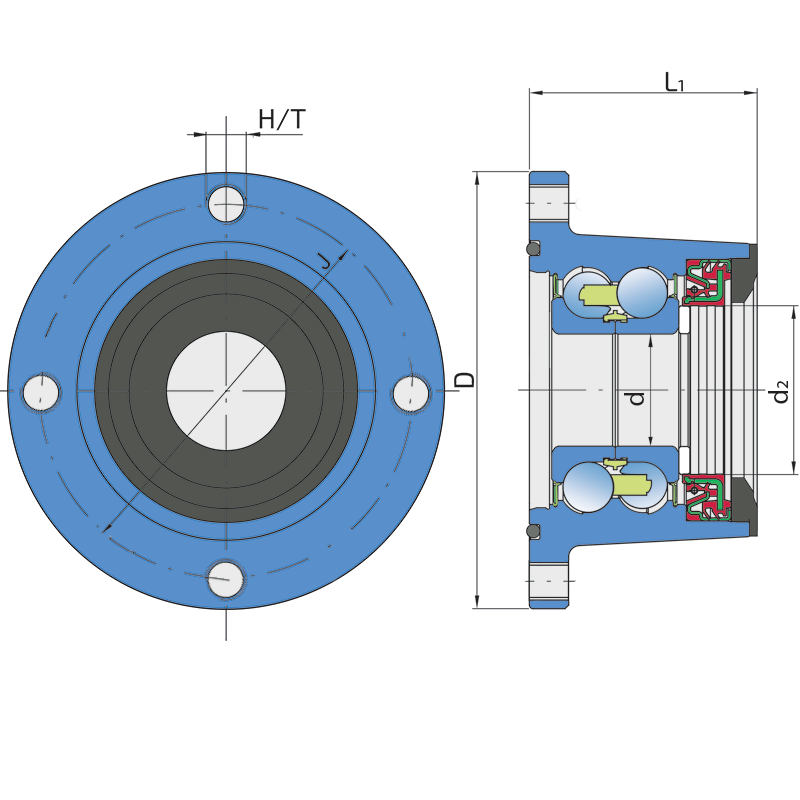

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
H/T	Hole/Thread	4xM12x1.25
d1	Bore diameter	30
d2	Mounting diameter	45
L1	Total flange length	61
kg	Mass	1.87
Cdyn	Dynamic load rating	60
Co	Static load rating	45.8
Pu	Fatigue load limit	1.92

Interchange:

OEM	Manufacturer	Comments
152271	VADERSTAD
152456	VADERSTAD
208062	VADERSTAD
424908	VADERSTAD
440488	VADERSTAD
441693	VADERSTAD
484430	VADERSTAD
BAA-0003A	SKF

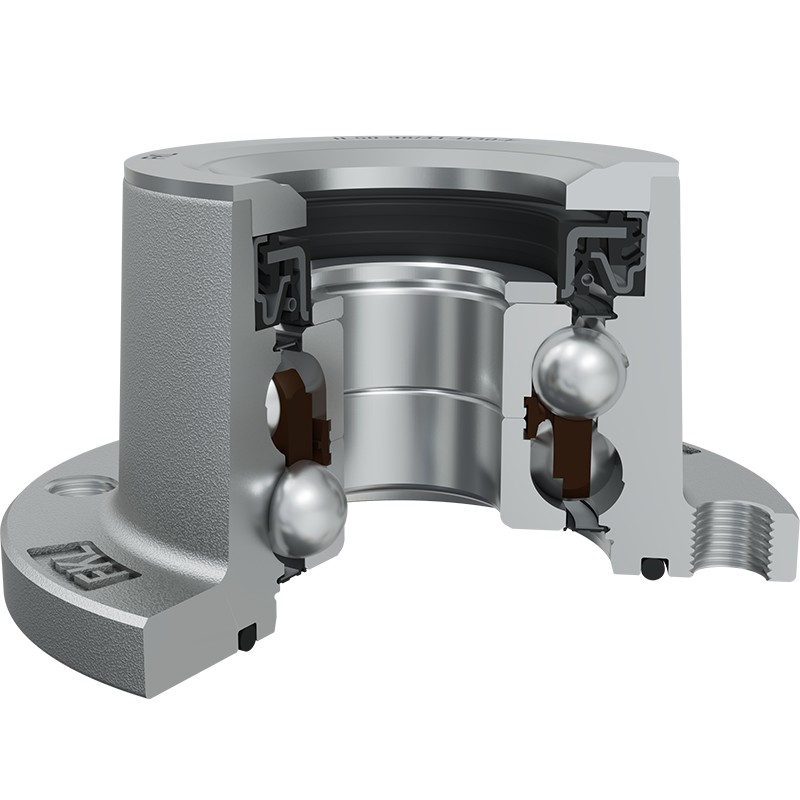

O-RING+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring and RS seal on the base side and RS seal, Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants. O-ring and RS seal together with attached special disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
