Product number:

IL 50-98/4T-M22

Brand:

Product name:

csapágyegység

Sizes:

27,95X117X102

Replacements:

F06160015 ZPK 001 BAA-0004 IL2-117-M22-D AHU28117AS-01 AHU28117A-01 PN60035 PHA0004 F-673270.04.TILL PR 040/4X98 ACB0605-A AGRH0001

Inquiry Subscribe

IL50-98/4T-M22 FKL

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
H/T	Hole/Thread	4xM12x1.25
d	Bore diameter	27.95
C	D-shape hole cut out dimension	25.4
M	Outher Thread	M22x1.5
L	Total length	102
L1	Total flange length	60
E	Length of D shape	17
F	Length of threaded part	25
kg	Mass	2.51
Cdyn	Dynamic load rating	60
Co	Static load rating	45.8
Pu	Fatigue load limit	1.92

Interchange:

OEM	Manufacturer	Comments
910974	KÖCKERLING
AGHK3098X4D-7LC	SKF
AH0004	KG
AHU28117A-01	NSK
AHU28117A-01	NWG
BAA-0004	SKF
F06160015	GASPARDO
HUA11-4M12-S01	SNR
KIT-HUB-30MM-ASSY-A221	PEER
KM040110	BEDNAR
M11308	FARMET
RA133200	VOGEL&NOOT
ZPK-001	PBF

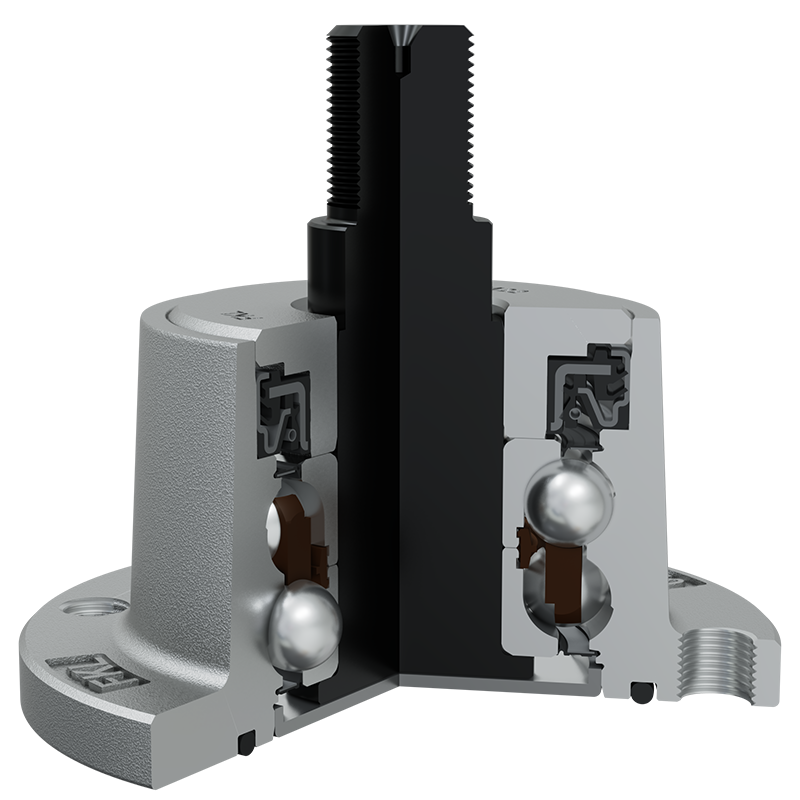

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
