Product number:

IL2-117-M24-H

Brand:

Product name:

csapágyegység

Sizes:

32X117X59/106

Replacements:

BAA-0005 PHA-0005 90314012 90314002

Inquiry Subscribe

IL50-98/4T-M24 FKL

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
H/T	Hole/Thread	4xM12x1.25
d	Bore diameter	30
C	D-shape hole cut out dimension	27.5
M	Outher Thread	M24x2
L	Total length	106
L1	Total flange length	60
E	Length of D shape	17
F	Length of threaded part	29
kg	Mass	2.55
Cdyn	Dynamic load rating	60
Co	Static load rating	45.8
Pu	Fatigue load limit	1.92

Interchange:

OEM	Manufacturer	Comments
9031.40.02	RABE
9031.40.12	RABE
9031.40.89	RABE
AGHU3098X4C-MBC-V03	SKF
AH0005	KG
AHU30117A-0	NSK
BAA-0005	SKF
BAA-0009	SKF
RA133000A	VOGEL&NOOT

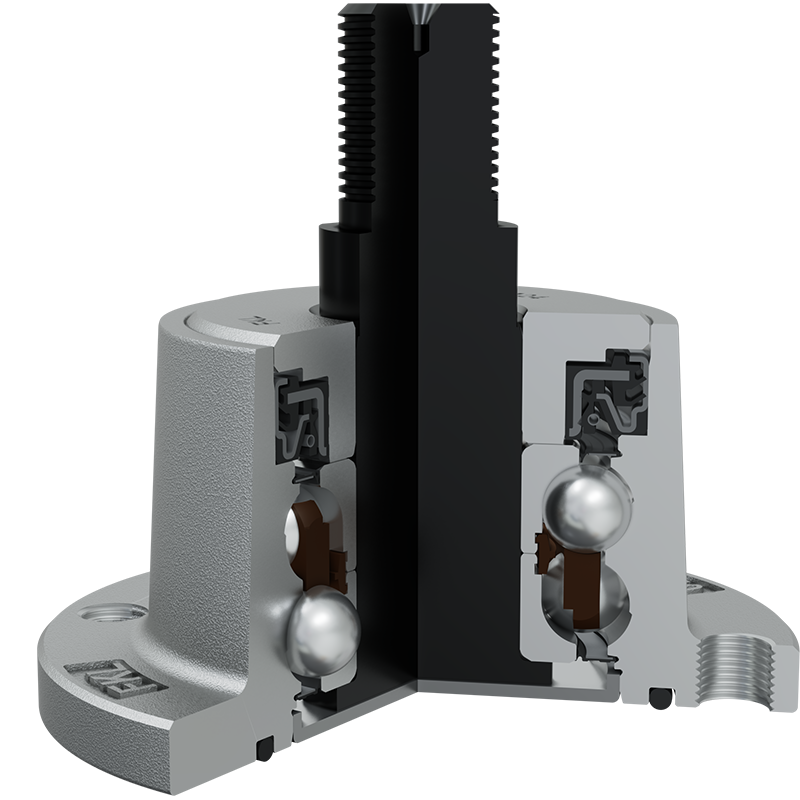

O-RING+SHEET METAL SHIELD+RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
