IL50B-125.7/4H-3/4-16UNF FKL

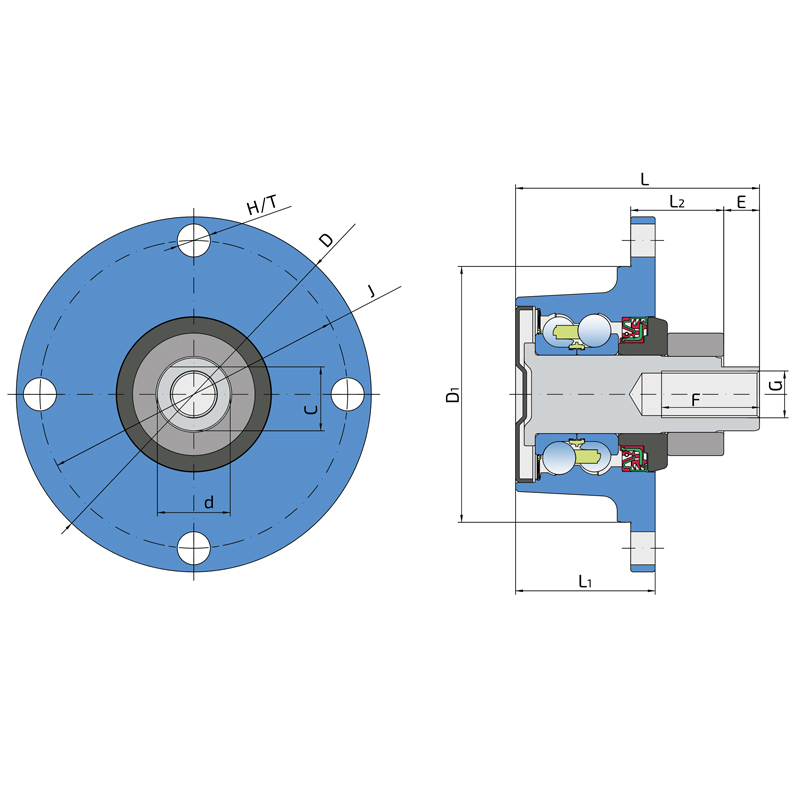

Technical datasheet:

J	Pitch circle diameter	125.7
D	Outside diameter	145
D1	Centar bore on the disc	104.5
H/T	Hole/Thread	o13.5
d	Bore diameter	29.75
C	D-shape hole cut out dimension	26.1
G	Internal Thread	3/4”–16UNF
L	Total length	99.6
L1	Total flange length	57
L2	The distance from the mounting surface to the front of the flange on which the disc is installed	38
E	Length of D shape	14.6
F	Length of threaded part	40
kg	Mass	3.245
Cdyn	Dynamic load rating	60
Co	Static load rating	45.8
Pu	Fatigue load limit	1.92

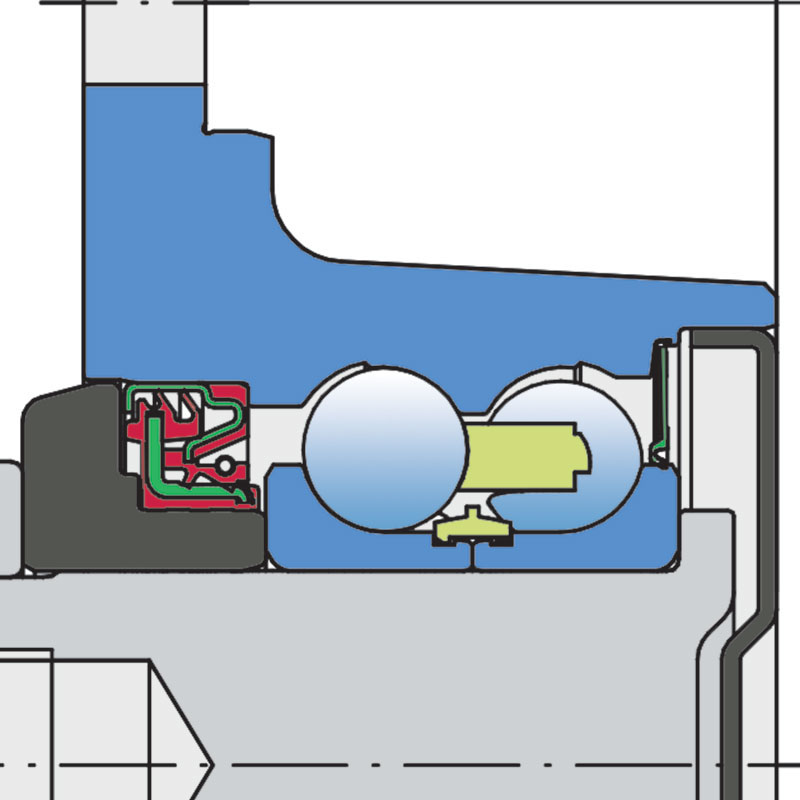

FORGED COVER PLATE+DIRTBLOC SEAL / RS SEAL+SHEET METAL SHIED

Dirtblock seal and Forged cover plate on the base side and Sheet metal shield with RS seal on the front side. Dirtblock seal and Forged cover significantly slows down the contamination. Sheet metal shield also protects the bearing from mechanical damages.
