IL50S-110/4T-D35 FKL

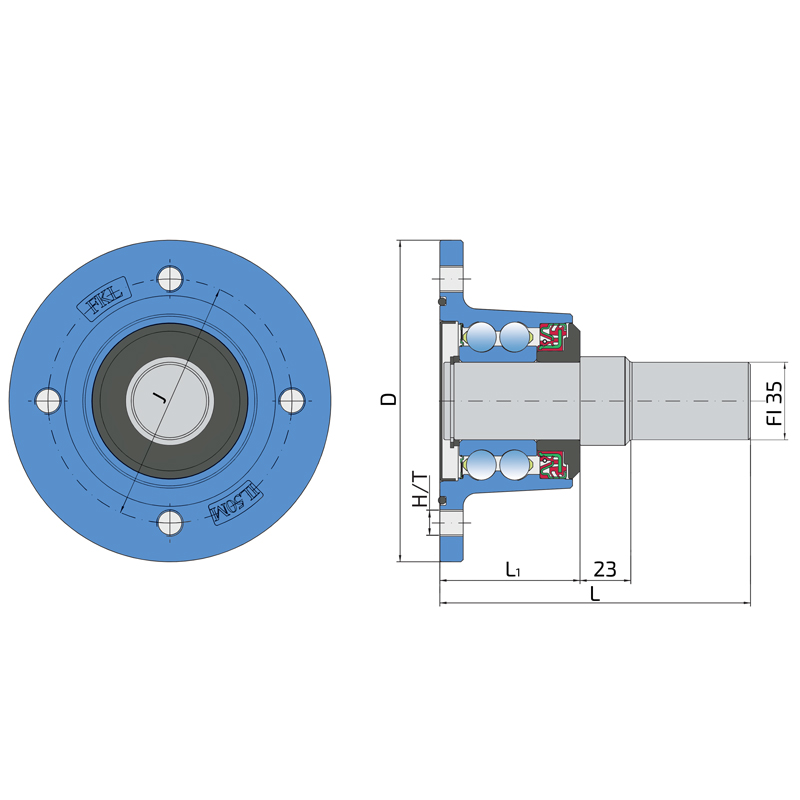

Technical datasheet:

J	Pitch circle diameter	110
D	Outside diameter	145
H/T	Hole/Thread	4xM12x1.25
M	Outher Thread	35
L	Total length	140
L1	Total flange length	63
kg	Mass	3.317
Cdyn	Dynamic load rating	48.76
Co	Static load rating	35.5
Pu	Fatigue load limit	1.49

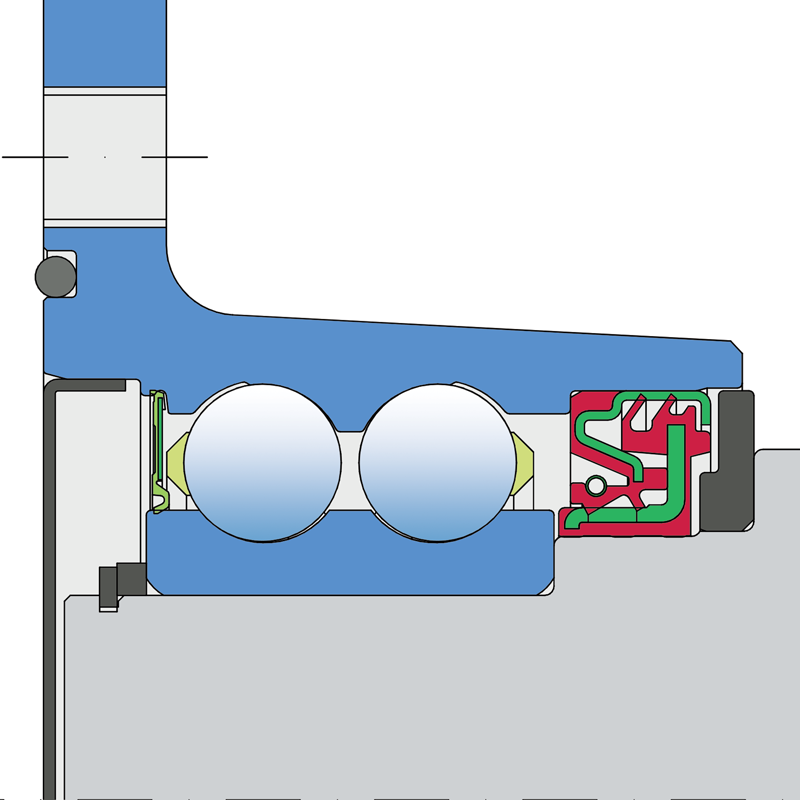

O-RING + SHEET METAL SHIELD + RS SEAL / DIRTBLOCK SEAL + FORGED COVER PLATE

Sealing O-RING + SHEET METAL SHIELD + RS SEAL / DIRTBLOCK SEAL + FORGED COVER PLATE O-ring, Sheet metal shield and RS seal on the base side and Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
