IL50S-122/6H-M24x2-R616 FKL

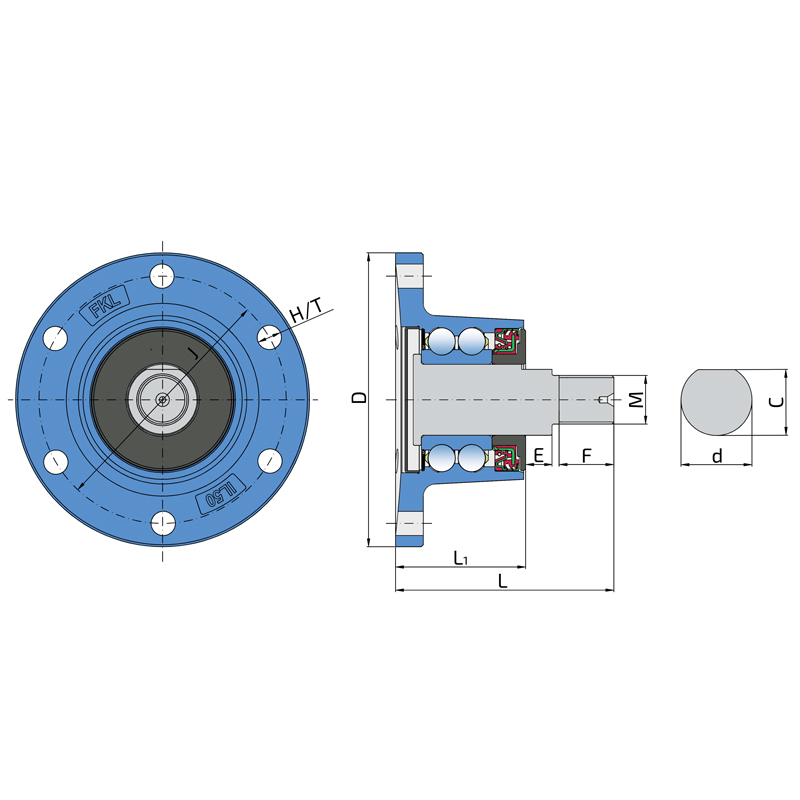

Technical datasheet:

J	Pitch circle diameter	122
D	Outside diameter	145
H/T	Hole/Thread	6x12
d	Bore diameter	35
C	D-shape hole cut out dimension	32.5
M	Outher Thread	M24x2
L	Total length	107.7
L1	Total flange length	63.2
E	Length of D shape	13.5
F	Length of threaded part	27
kg	Mass	3.012
Cdyn	Dynamic load rating	48.76
Co	Static load rating	35.5
Pu	Fatigue load limit	1.49

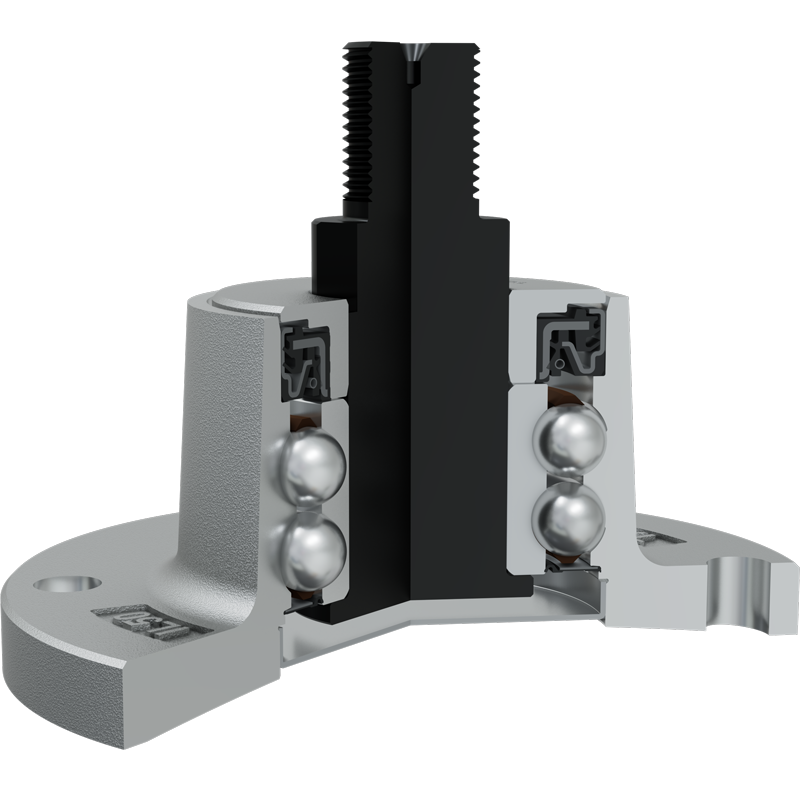

SHEET METAL SHIELD+RS SEAL / DIRTBLOCK SEAL+FORGED COVER PLATE

Sheet metal shield and RS seal on the base side and Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants. Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
