Product number:

IL 50 S-98/3T-2xM16

Brand:

Product name:

csapágyegység

Replacements:

PN60044 34189000 HORSCH 1186732689

Inquiry Subscribe

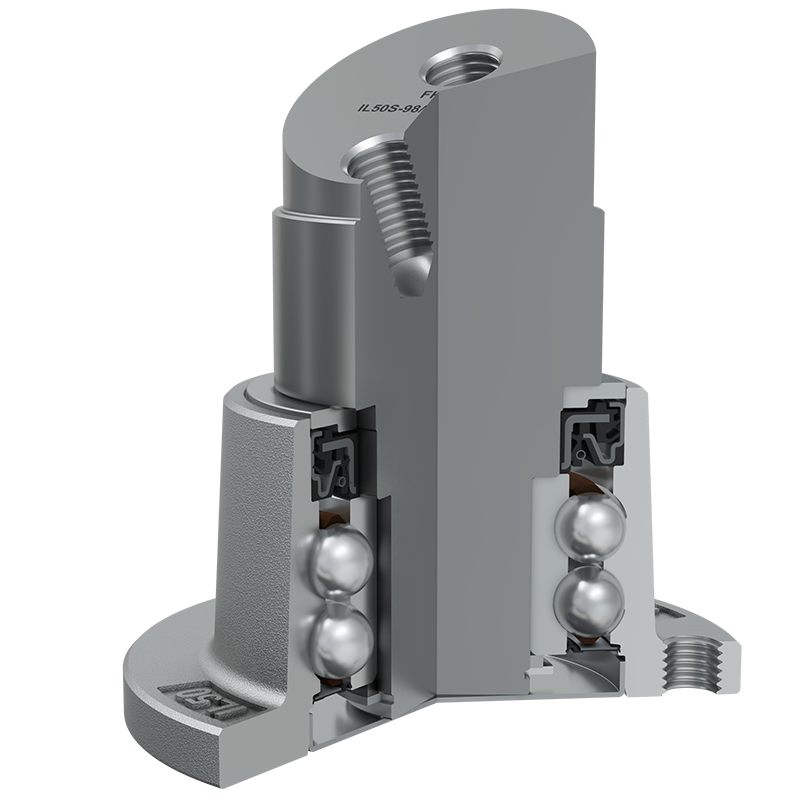

IL50S-98/3T-2xM16 FKL

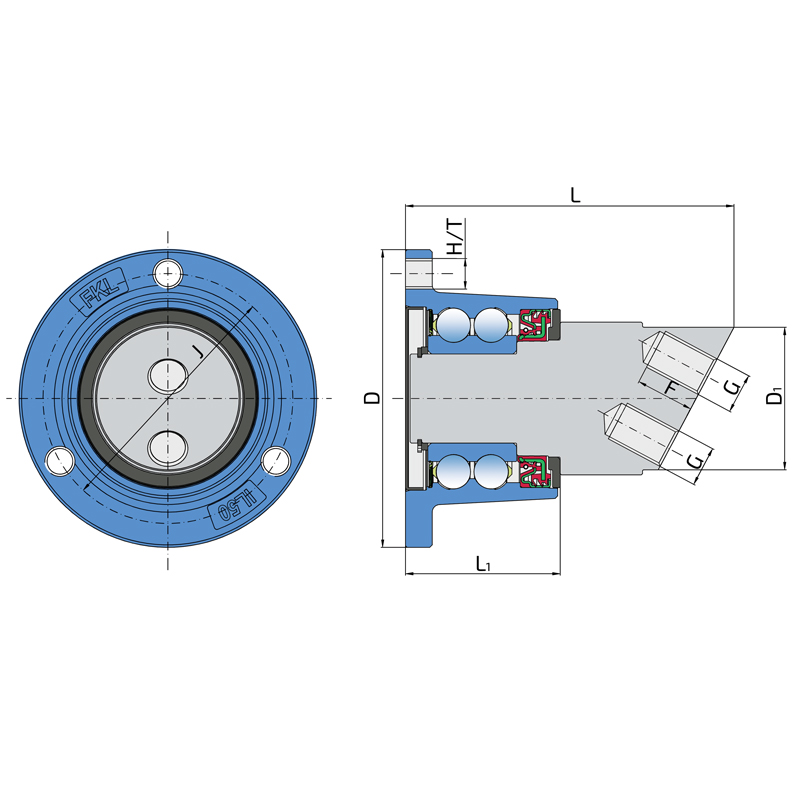

Technical datasheet:

J	Pitch circle diameter	98
D	Outside diameter	117
D1	Outside diameter	56
H/T	Hole/Thread	M12
G	Internal Thread	2xM16
L	Total length	130
L1	Total flange length	59.8
F	Length of threaded part	23
kg	Mass	3.4
Cdyn	Dynamic load rating	48.76
Co	Static load rating	35.5
Pu	Fatigue load limit	1.49

Interchange:

OEM	Manufacturer	Comments
34189000	HORSCH

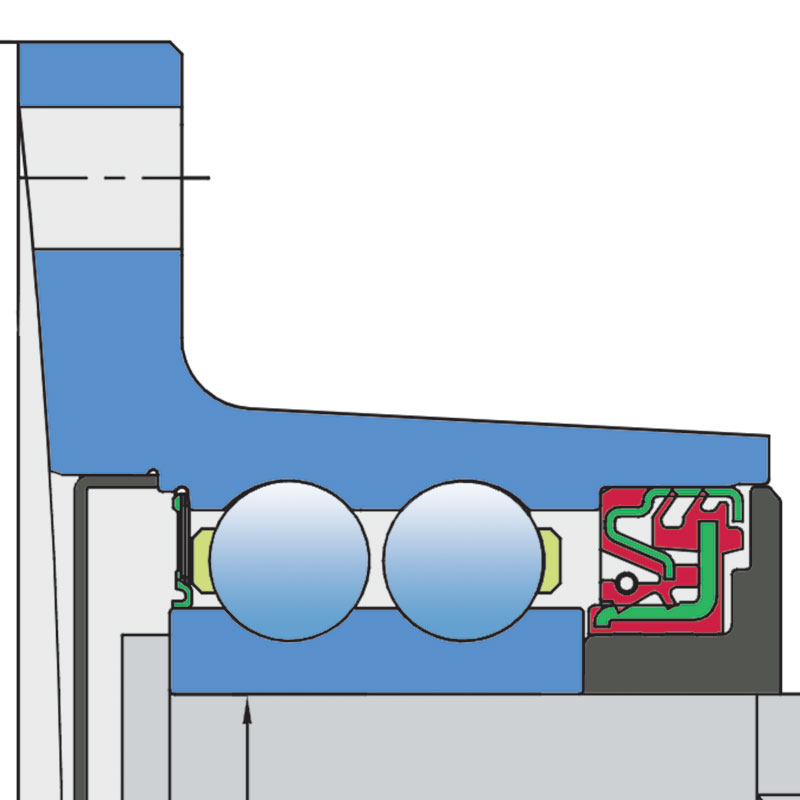

SHEET METAL SHIELD+RS SEAL / DIRTBLOCK SEAL+FORGED COVER PLATE

Sheet metal shield and RS seal on the base side and Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants. Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
