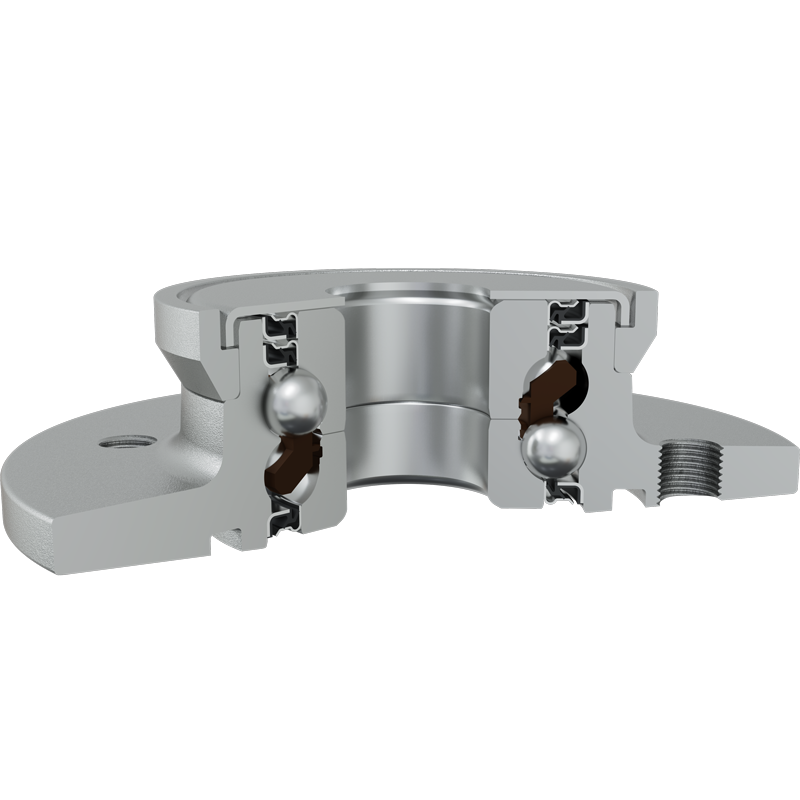

IL50V-104/4T-B30 FKL

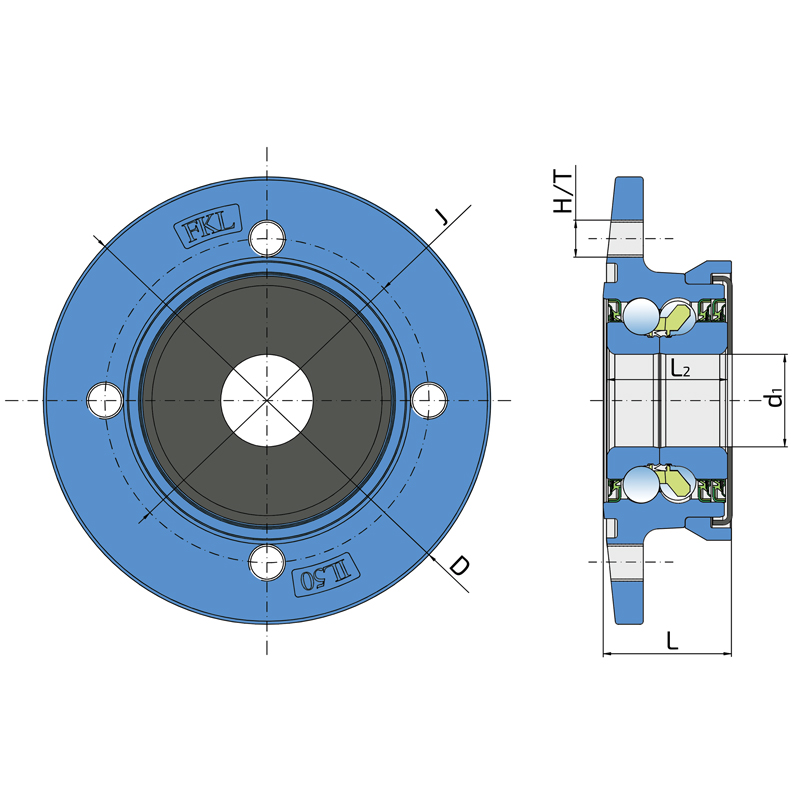

Technical datasheet:

J	Pitch circle diameter	104
D	Outside diameter	145
H/T	Hole/Thread	4xM12x1.25
d1	Bore diameter	30
L	Total length	41.8
L2	Bearing width	39
Cdyn	Dynamic load rating	47.4
Co	Static load rating	38.3
Pu	Fatigue load limit	1.61

Interchange:

OEM	Manufacturer	Comments
177483-SP	VADERSTAD
184594	VADERSTAD	old original designation

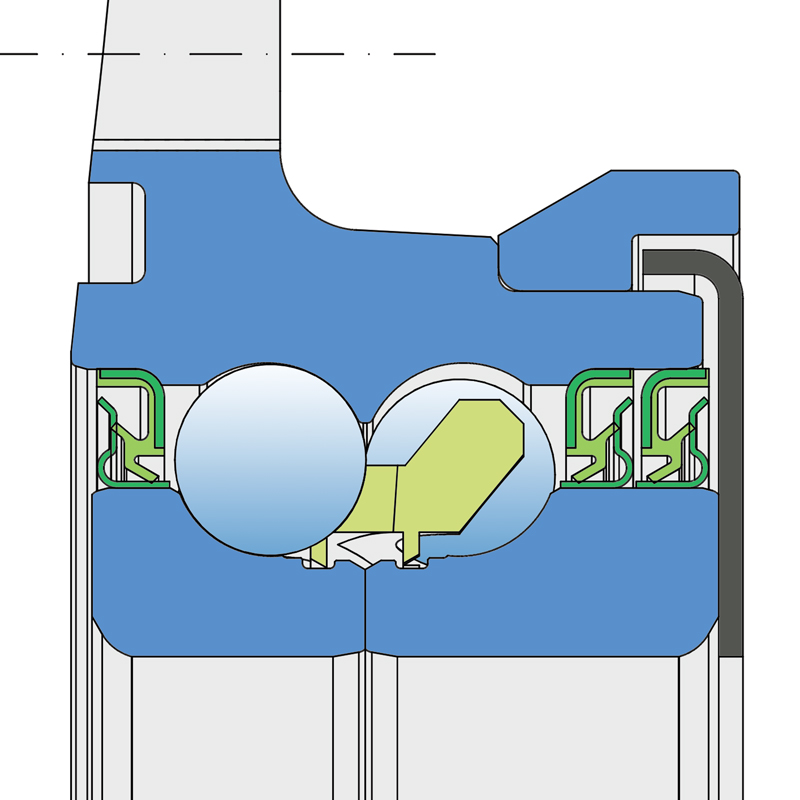

CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD

Sealing CASSETTE SEAL / DOUBLE CASSETTE SEAL + METAL SHIELD Cassette seal on the base side and double cassette seal with metal shield on the front side. This sealing provides excellent protection from contamination and low friction.
