IL60-00-M20X1.5 FKL

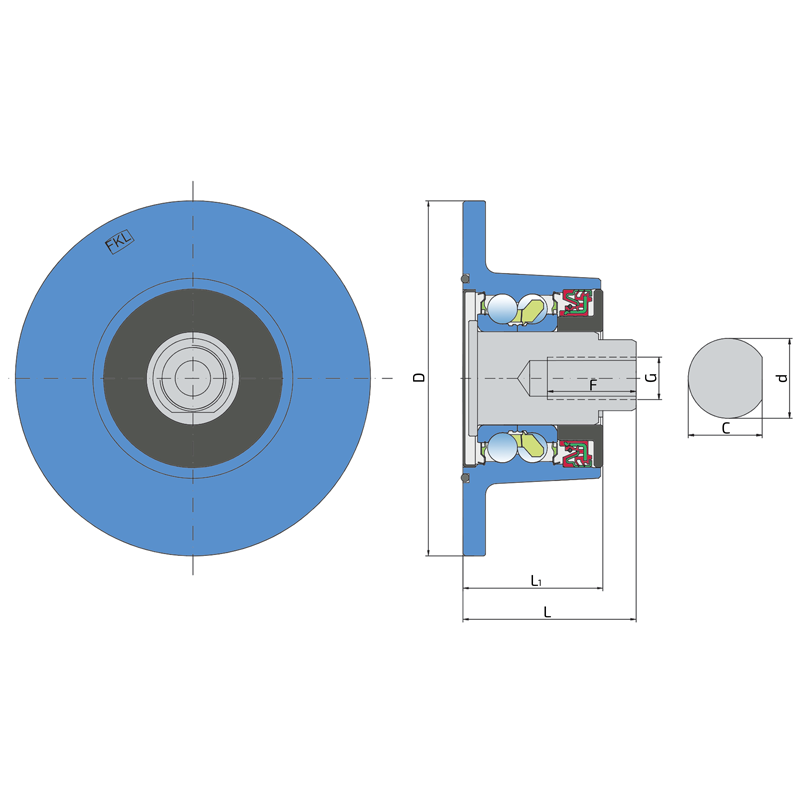

Technical datasheet:

D	Outside diameter	160
H/T	Hole/Thread	blank
d	Bore diameter	31
C	D-shape hole cut out dimension	34.9
G	Internal Thread	M20X1.5
L	Total length	78
L1	Total flange length	63
F	Length of threaded part	40
kg	Mass	4.2
Cdyn	Dynamic load rating	66.35
Co	Static load rating	56.5
Pu	Fatigue load limit	2.37

Interchange:

OEM	Manufacturer	Comments
BAA-0037A	SKF

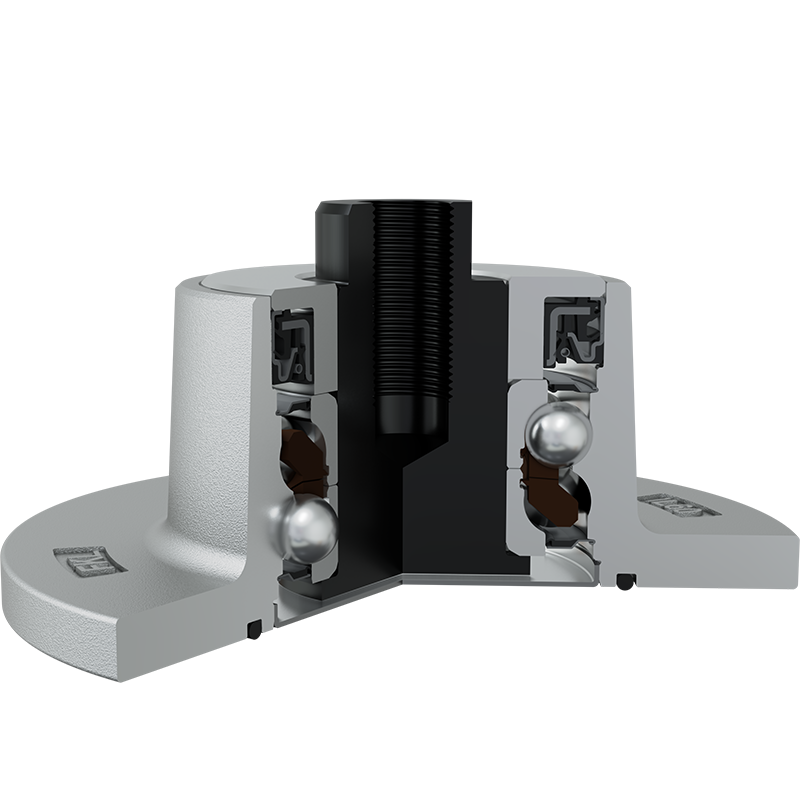

O-RING+ SHEET METAL SHIELD+S SEAL / S SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and S seal on the base side and S seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
