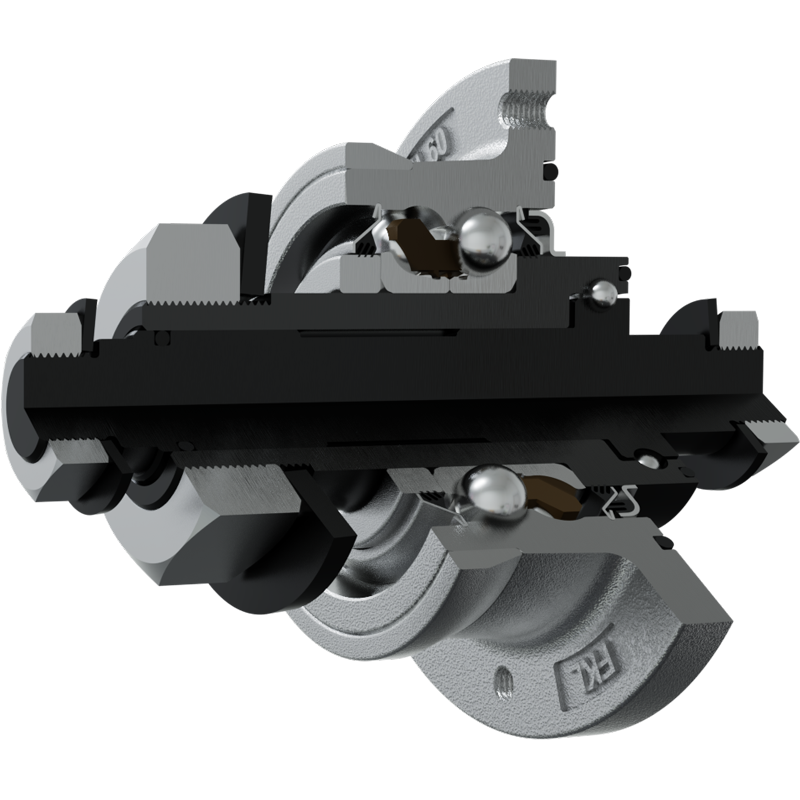

IL60-115/6T-M20 FKL

Technical datasheet:

J	Pitch circle diameter	115
D	Outside diameter	135
H/T	Hole/Thread	6xM8
d	Bore diameter	42
C	D-shape hole cut out dimension	39.5
M	Outher Thread	M39x1.5
F	Length of threaded part	26
L	Total length	167
L1	Total flange length	48
E	Length of D shape	15
kg	Mass	4.214
Cdyn	Dynamic load rating	66.35
Co	Static load rating	56.49
Pu	Fatigue load limit	2.37

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants. The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
