Product number:

IL60-140/5T-B37

Brand:

Product name:

bearing

Inquiry Subscribe

IL60-140/5T-B37 FKL

Technical datasheet:

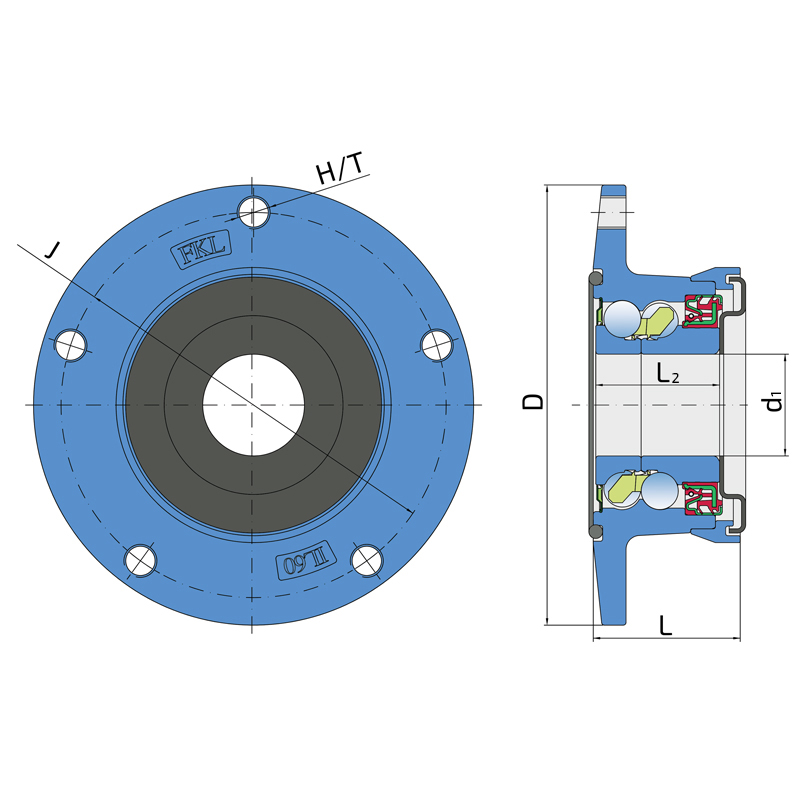

J	Pitch circle diameter	140
D	Outside diameter	160
H/T	Hole/Thread	5xM12x1.25
d1	Bore diameter	37
L	Total length	53.4
L2	Bearing width	45
Cdyn	Dynamic load rating	66.35
Co	Static load rating	56.49
Pu	Fatigue load limit	2.37

Interchange:

OEM	Manufacturer	Comments
162256	VADERSTAD
170099	VADERSTAD
182814	VADERSTAD
PN60050	RBF

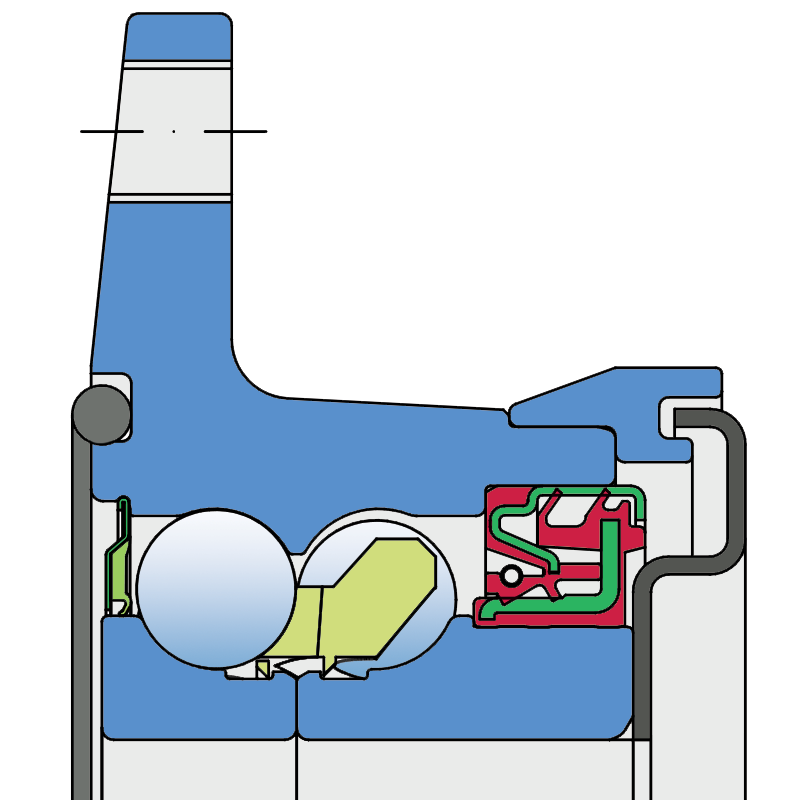

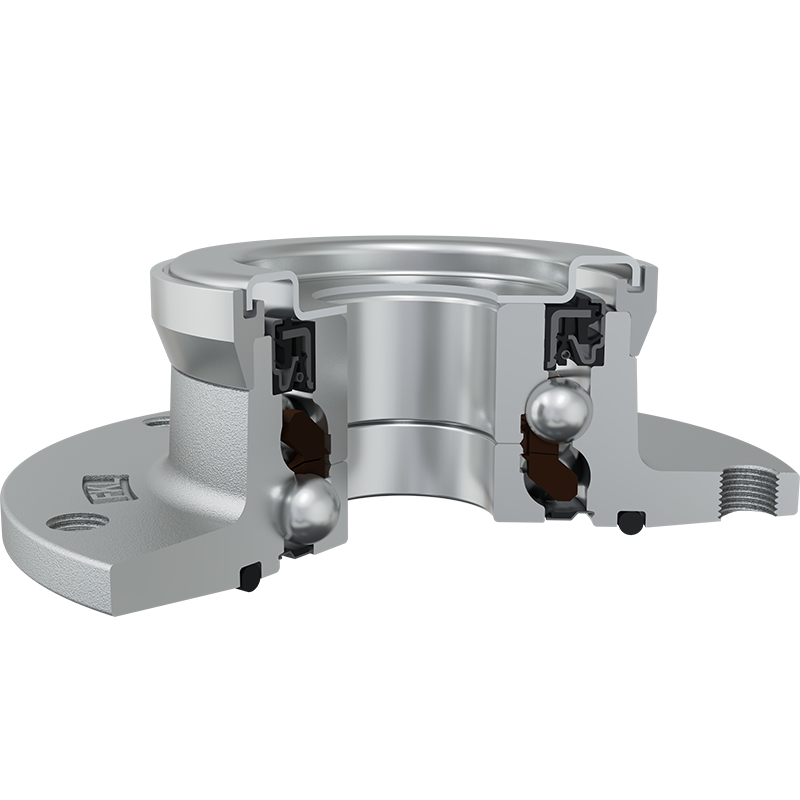

O-RING + S SEAL / DIRTBLOCK SEAL + METAL SHIELD

Sealing O-RING + S SEAL / DIRTBLOCK SEAL + METAL SHIELD O-ring and S seal on the base side and Dirtblock seal with Metal shield on the front side which is exposed to contaminants. O-ring and S seal together with attached special disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
