IL60-150/6T-M24 FKL

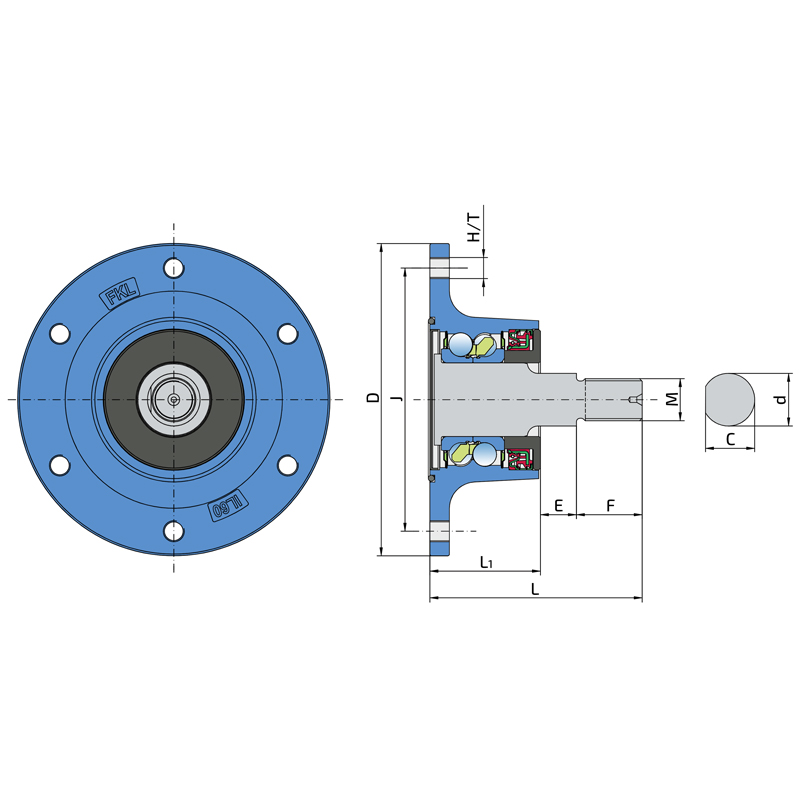

Technical datasheet:

J	Pitch circle diameter	150
D	Outside diameter	178
H/T	Hole/Thread	6xM12x1.25
d	Bore diameter	30
C	D-shape hole cut out dimension	28
M	Outher Thread	M24x2
L	Total length	121
L1	Total flange length	63
E	Length of D shape	20.5
F	Length of threaded part	37.5
kg	Mass	4.486
Cdyn	Dynamic load rating	66.35
Co	Static load rating	56.49
Pu	Fatigue load limit	4.746

Interchange:

OEM	Manufacturer	Comments
AGHK35150X6D-7LC	SKF
AGHU35150X6D-7LC	SKF
AGHU35150X6D-7LC-V12	SKF
HUB-35MM-X-ASSY-A243	PEER
HUB-35MM-X-ASSY-A601	PEER
KIT-HUB-35MM-ASSY-A243	PEER

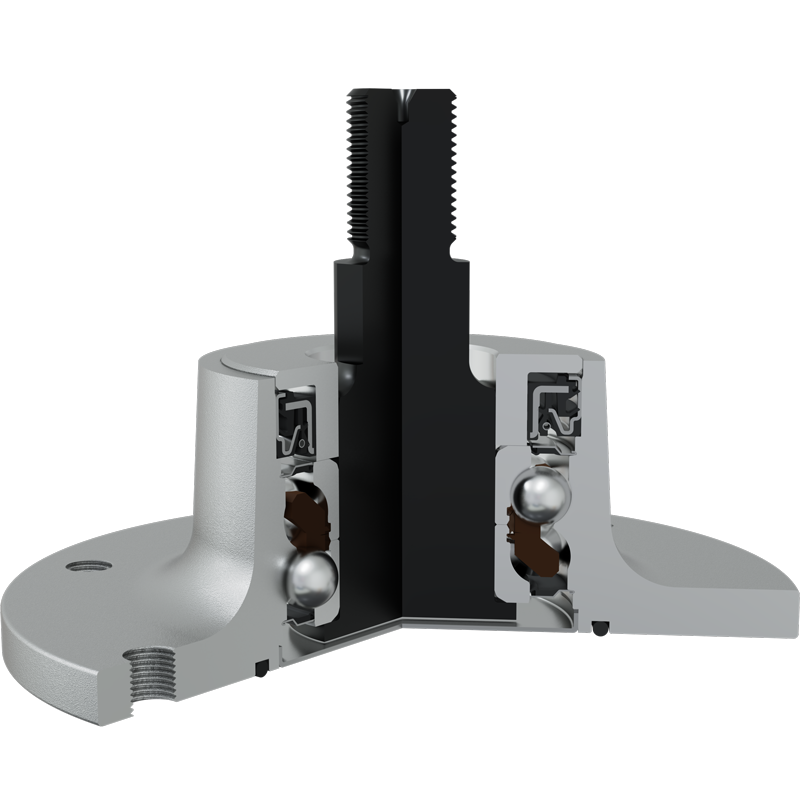

O-RING+ SHEET METAL SHIELD+S SEAL / S SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and S seal on the base side and S seal, Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
