IL60C-150/6T-D95-RH FKL

Technical datasheet:

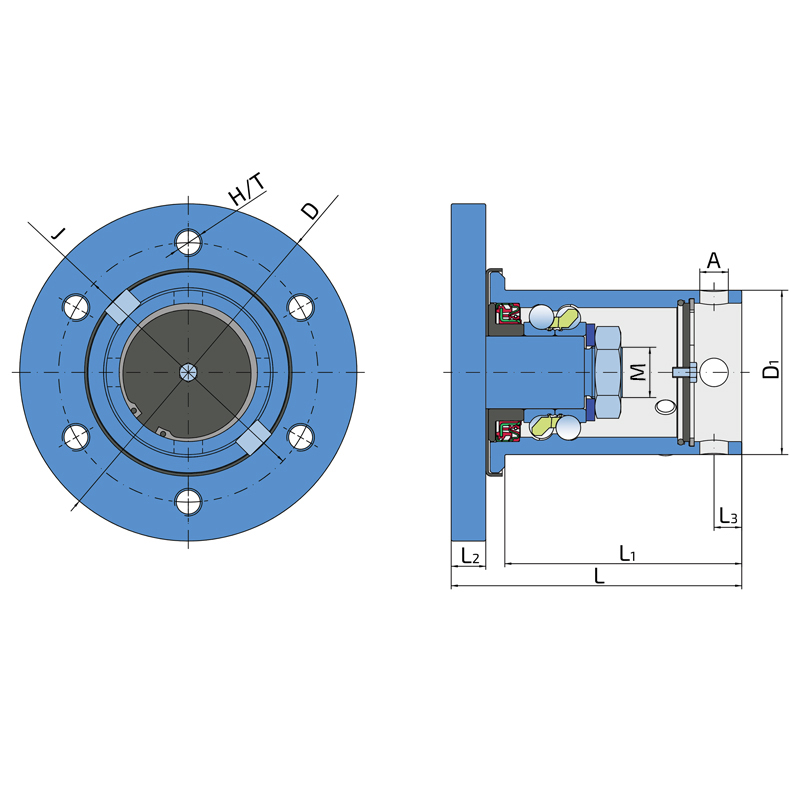

D	Outside diameter	195
J	Pitch circle diameter	150
H/T	Hole/Thread	6xM16
M	Outher Thread	M30x1.5-RH
L	Total length	168
L1	The length of the sleeve	137
L2	Flange thickness	20
L3	The distance from the face of the sleeve to the axis of the locking hole	16
A	Locking hole diameter	4x16.5
D1	Outer diameter of the sleeve	95
kg	Mass	9.74
Cdyn	Dynamic load rating	75.86
Co	Static load rating	66.2
Pu	Fatigue load limit	2.78

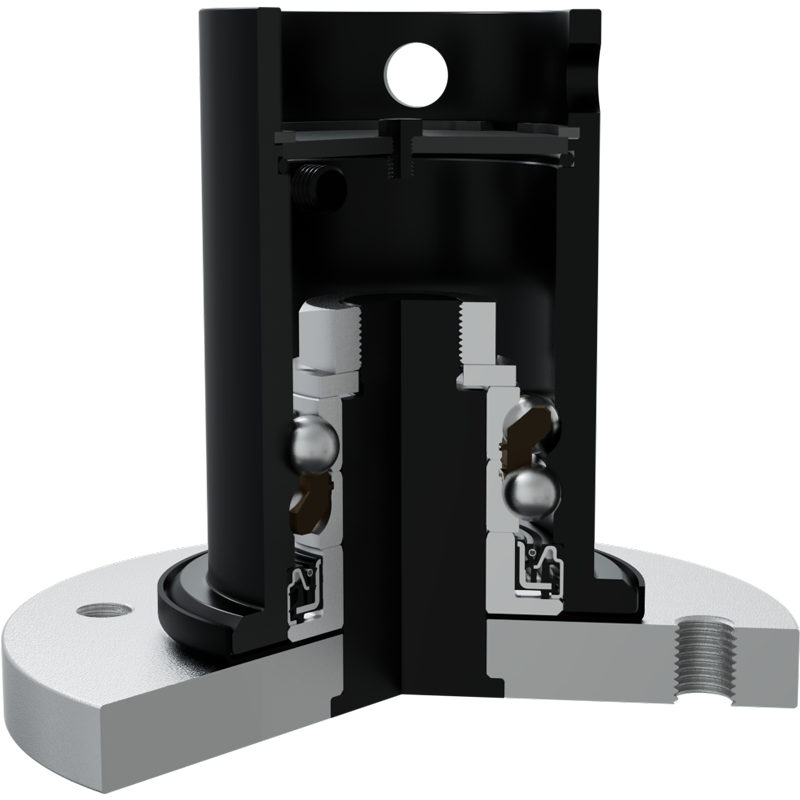

SHEET METAL SHIELD + FORGED COVER PLATE + DIRTBLOCK SEAL / O-RING + COVER PLATE

Sealing SHEET METAL SHIELD + FORGED COVER PLATE + DIRTBLOCK SEAL / O-RING + COVER PLATE Sheet metal shield, forged cover plate and dirtblock seal on the base side and o-ring with cover plate on the front side. Sheet metal shield, forged cover plate and dirtblock seal together eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
