IL70-122/6T-M24 FKL

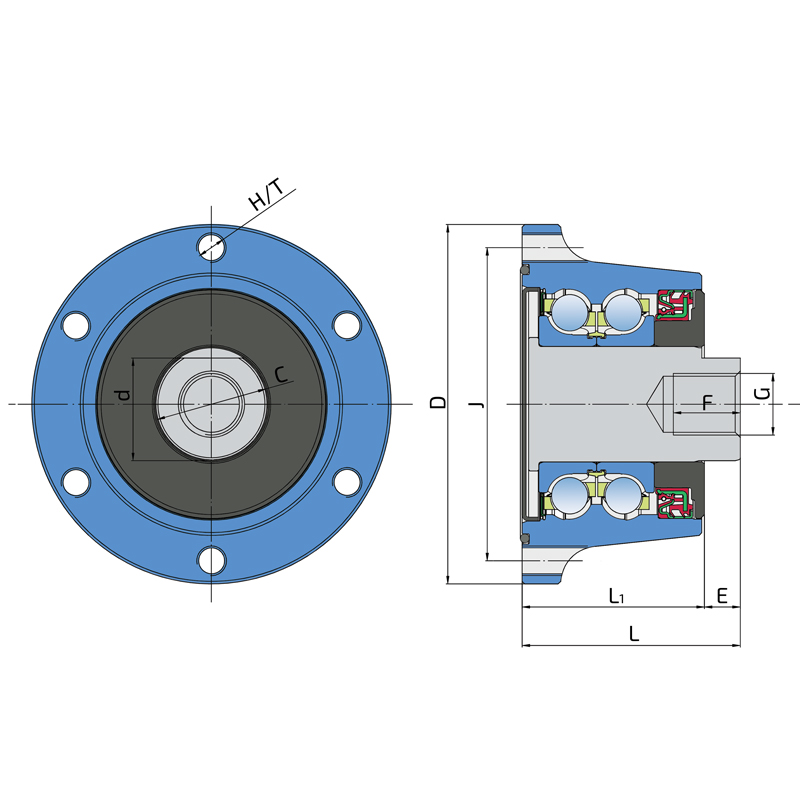

Technical datasheet:

J	Pitch circle diameter	122
D	Outside diameter	140
H/T	Hole/Thread	6xM12
d	Bore diameter	44
C	D-shape hole cut out dimension	40
G	Internal Thread	26
L	Total length	85
L1	Total flange length	71
E	Length of D shape	14
F	Length of threaded part	26
kg	Mass	4.802
Cdyn	Dynamic load rating	94.45
Co	Static load rating	77.88
Pu	Fatigue load limit	3.271

Interchange:

OEM	Manufacturer	Comments
AHU44140B	NWG
H2238130	KUHN

O-RING + SHEET METAL SHIELD + RS SEAL / DIRTBLOCK SEAL + FORGED COVER PLATE

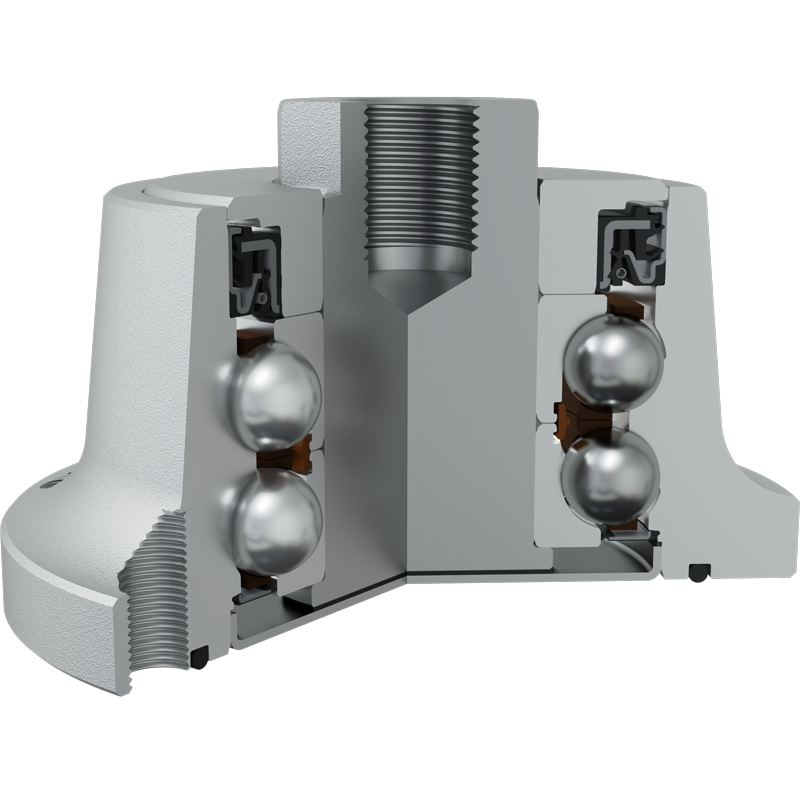

Sealing O-RING + SHEET METAL SHIELD + RS SEAL / DIRTBLOCK SEAL + FORGED COVER PLATE O-ring, Sheet metal shield and RS seal on the base side and Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
