IL70-170/4H-M24 FKL

Technical datasheet:

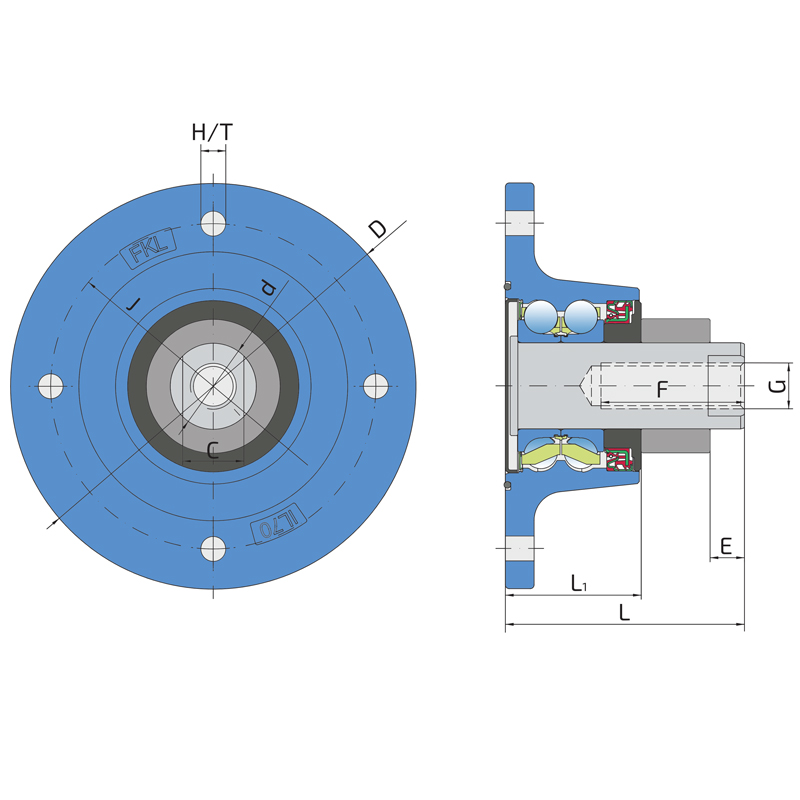

J	Pitch circle diameter	170
D	Outside diameter	212
H/T	Hole/Thread	4x13
d	Bore diameter	45
C	D-shape hole cut out dimension	32
G	Internal Thread	M24
L	Total length	125
L1	Total flange length	71
E	Length of D shape	18
F	Length of threaded part	75
kg	Mass	8.128
Cdyn	Dynamic load rating	94.45
Co	Static load rating	77.88
Pu	Fatigue load limit	3.271

Interchange:

OEM	Manufacturer	Comments
78101702	AMAZONE
78101866	AMAZONE	Housing only

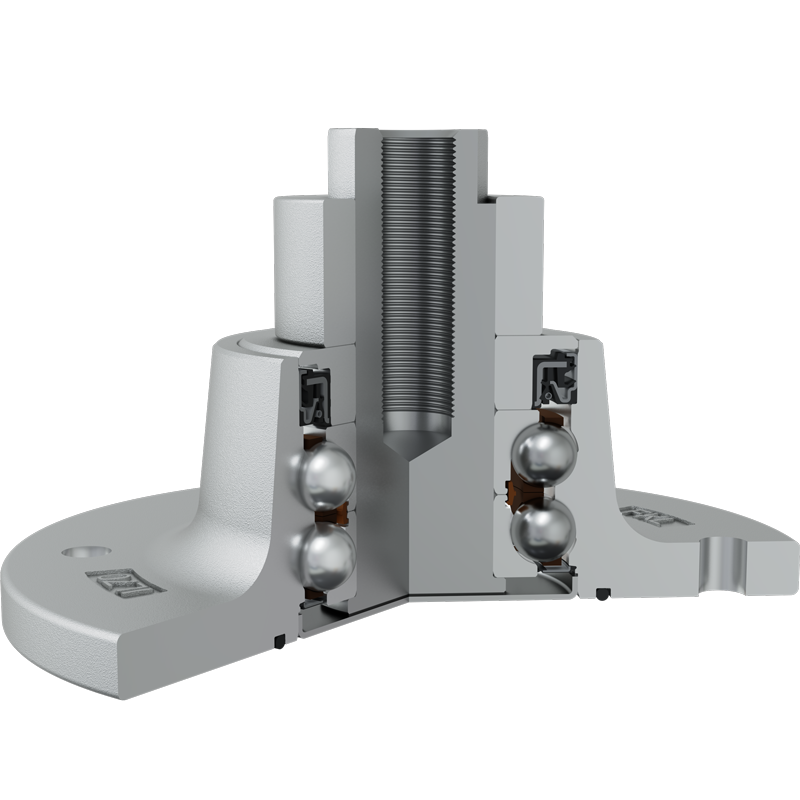

O-RING+SHEET METAL SHIELD+RS SEAL / DIRTBLOCK SEAL+FORGED COVER PLATE

O-ring, Sheet metal shield and RS seal on the base side and Dirtblock seal with Forged cover plate on the front side which is exposed to contaminants. O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side. Dirtblock seal is designed for hard working condition at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage. This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
