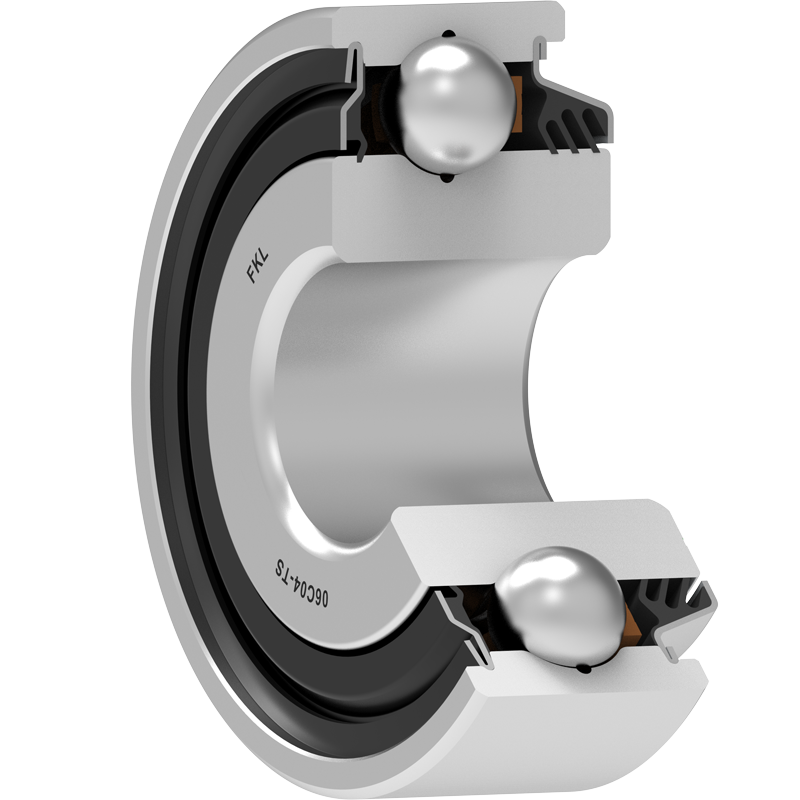

06C04-TS FKL

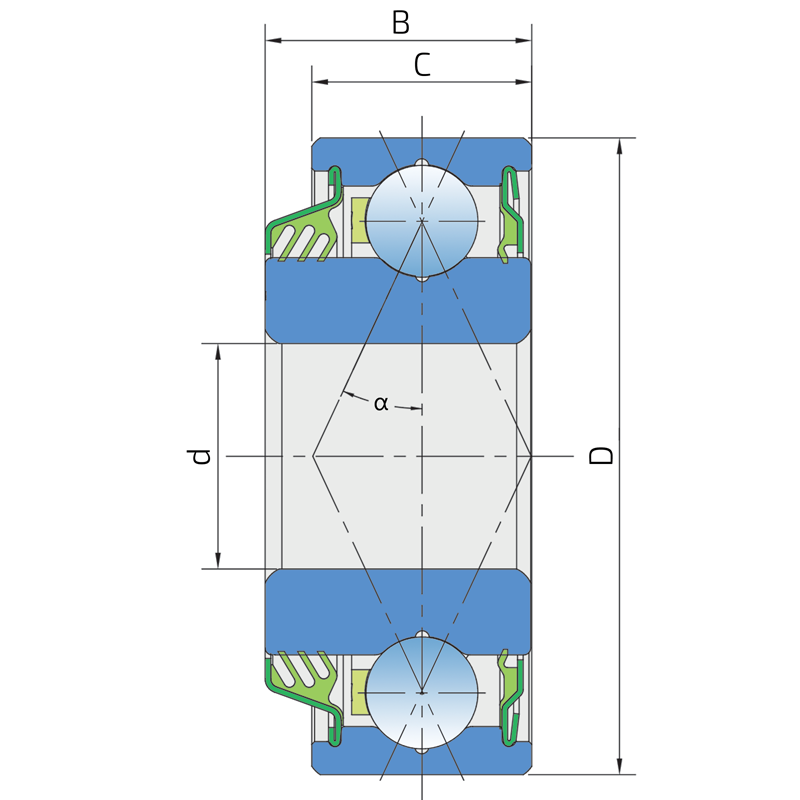

Technical datasheet:

d	Bore diameter	16
D	Outside diameter	45.2
B	Width inner ring	18.67
C	Width outer ring	15.4
α	Contact angle	25
kg	Mass	0.23
Cdyn	Dynamic load rating	19.6
Co	Static load rating	12.5
Pu	Fatigue load limit	0.525

Interchange:

OEM	Manufacturer	Comments
00210104	HORSCH
00240199	HORSCH
00240199	FAG
00310104	ZKL
00509465	HORSCH
1258017C91	CASE
1268017C91	CASE
145161C91	CASE
204AGR	SNR
204PY3	TIMKEN
204PY3	PEER
204RY2	FAFNIR
204XAGR	SNR
40-138	KUHN
492757R91	CASE
493532R91	CASE
820-003C	GREAT PLAINS
822-011C	GREAT PLAINS
822-011C	GREAT PLAINS
AA21480	JOHN DEERE
F556129	NSK
GA2014	KINZE
QJ6204SO3LSLB-1	NSK

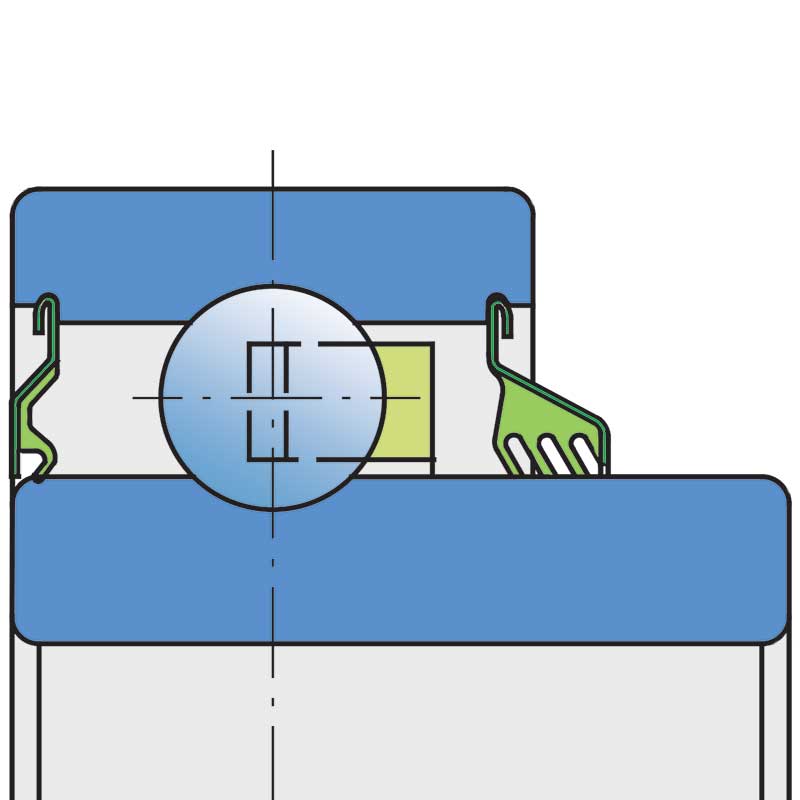

S SEAL / T SEAL

S seal on the base side and 3-lip seal on the front side which is exposed to contaminants. The 3-lip seal on the front side protects the bearing from contaminant penetration.
