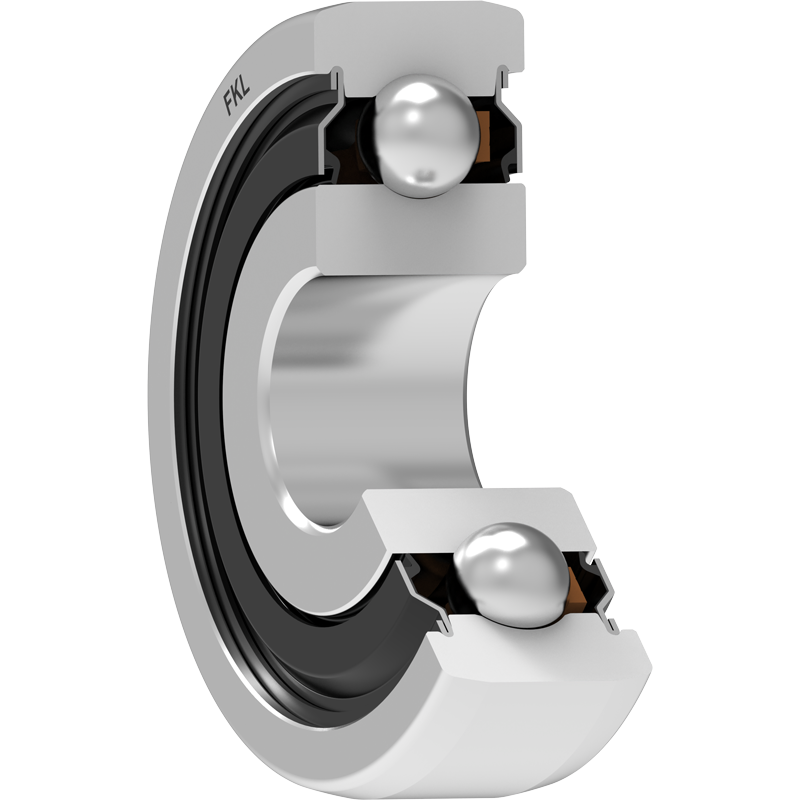

203KRR3 FKL

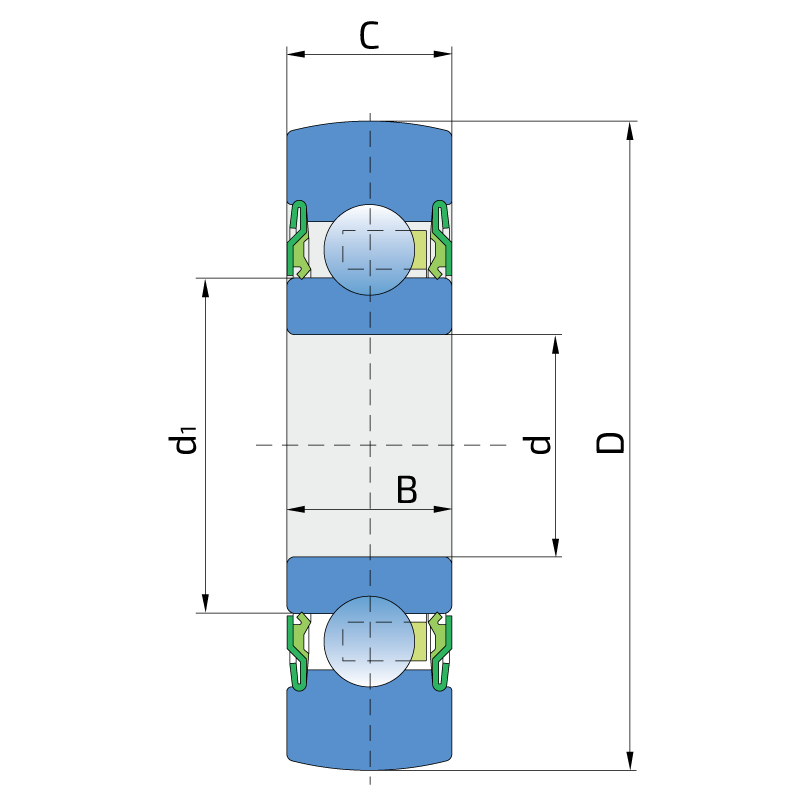

Technical datasheet:

d	Bore diameter	15.95
D	Outside diameter	50.8
B	Width inner ring	15
C	Width outer ring	15
d1	Outer diameter inner ring	27.5
Cdyn	Dynamic load rating	12.7
Co	Static load rating	6.55
kg	Mass	0.25

Interchange:

OEM	Manufacturer	Comments
165484	NEW HOLLAND
203KRR	INA
203KRR.AH03	INA
203KRR3	PEER
203KRR3	FAFNIR
203RR3	TIMKEN
50184	CASE
667925R91	CASE
80535663	NEW HOLLAND
AE74534	JOHN DEERE
JD8646	JOHN DEERE
SC0274LL2A	NTN
SX0360LL/L014	NTN

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
