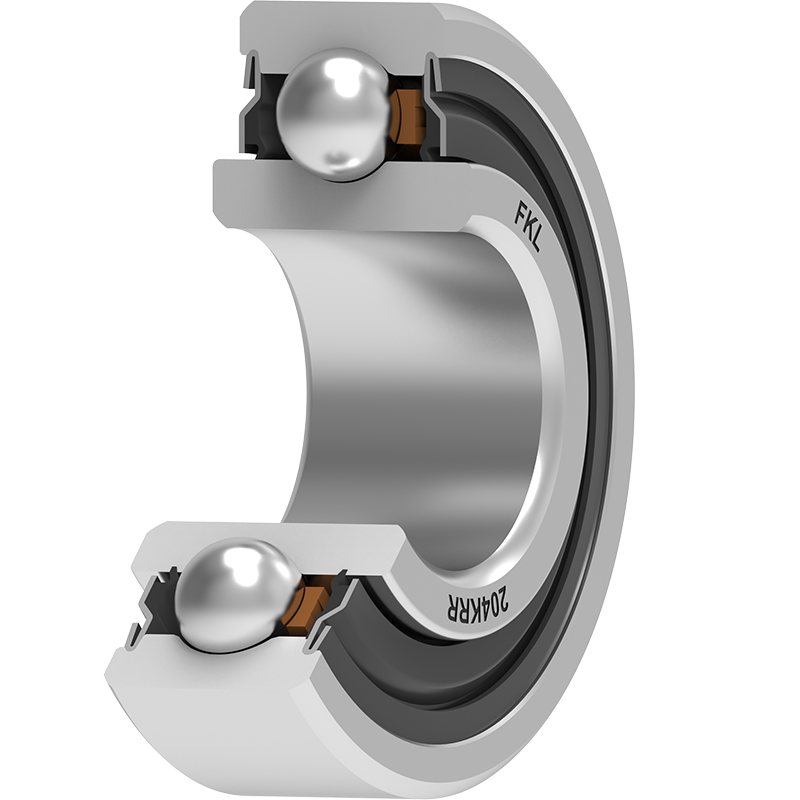

204KRR FKL

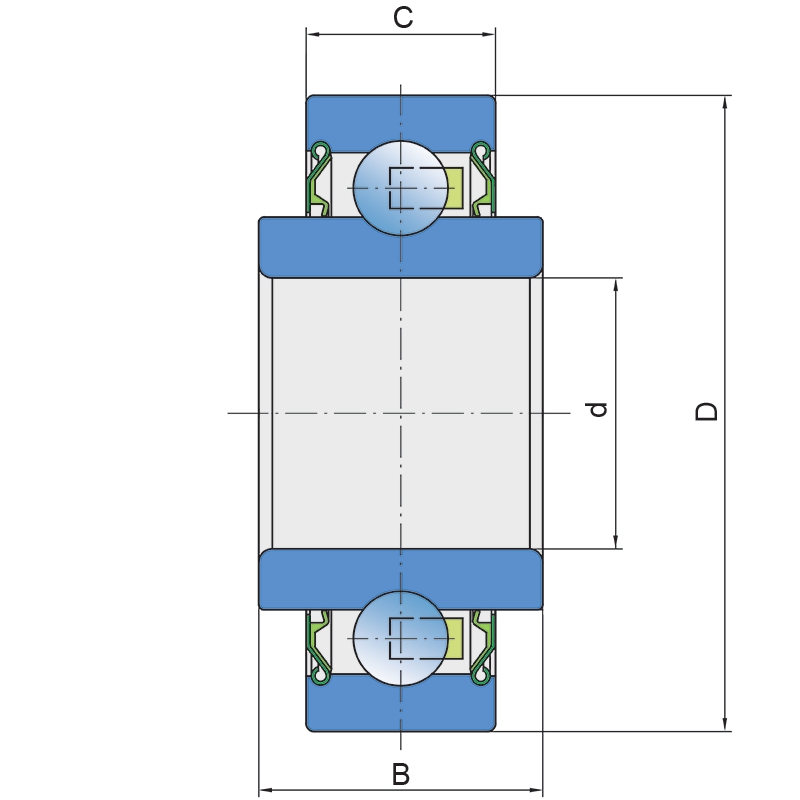

Technical datasheet:

Cdyn	Dynamic load rating	12.9
Co	Static load rating	6.6
D	Outside diameter	47
d	Bore diameter	20
C	D-shape hole cut out dimension	14
kg	Mass	0.12
B	Width inner ring	17.7

Interchange:

OEM	Manufacturer	Comments
204-XL-KRR	INA
204KRR	FAFNIR
AC671872	KVERNELAND

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
