Product number:

204 KRRB2

Brand:

Product name:

bearing

Catalog:

Catalog #1: https://www.fkl-czech.cz/en/product/204krr2

Replacements:

822-173C PER.204 HRRB2 HPS 011 GP 11K204N

Inquiry Subscribe

204KRRB2 FKL

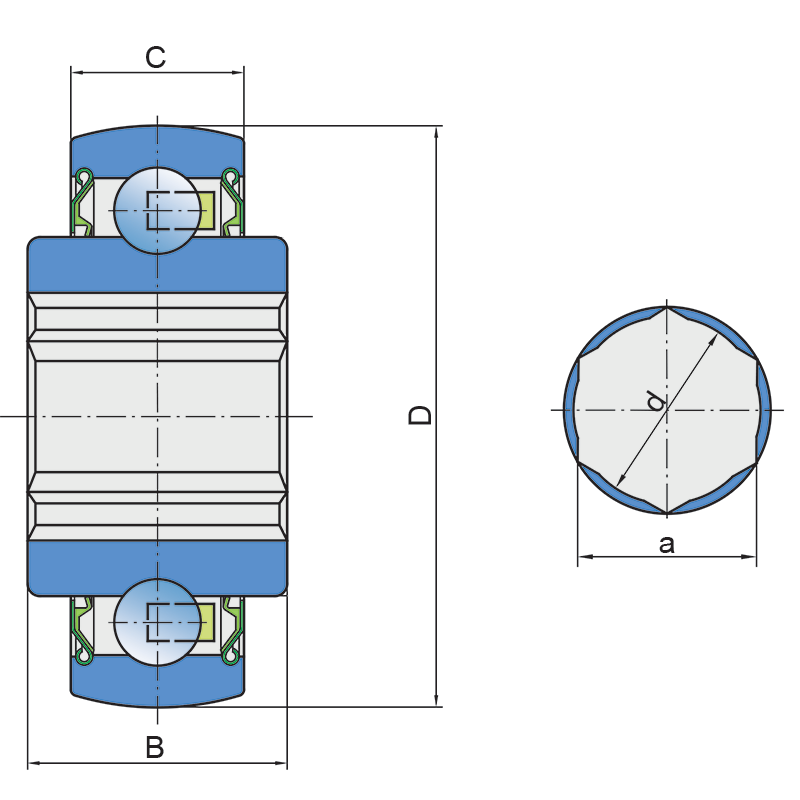

Technical datasheet:

a	Hexagonal bore	17.65
D	Outside diameter	47
B	Width inner ring	20.96
C	D-shape hole cut out dimension	14
d	Bore diameter	18.2
kg	Mass	0.2
Cdyn	Dynamic load rating	12.9
Co	Static load rating	6.6
Pu	Fatigue load limit	0.277

Interchange:

OEM	Manufacturer	Comments
11K204N	LINK BELT
204KRRB2	INA
204KRRB2	FAFNIR
204KRRB2	PEER
A-HPS011GP	GREAT PLAINS
HPS011GP	BCA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
