Product number:

205 KRR2

Brand:

Product name:

bearing

Sizes:

22.2X52X25.4/15

Replacements:

1AH05-7/8 SK014-205 KRR 205KRR AH02

Inquiry Subscribe

205KRR2 FKL

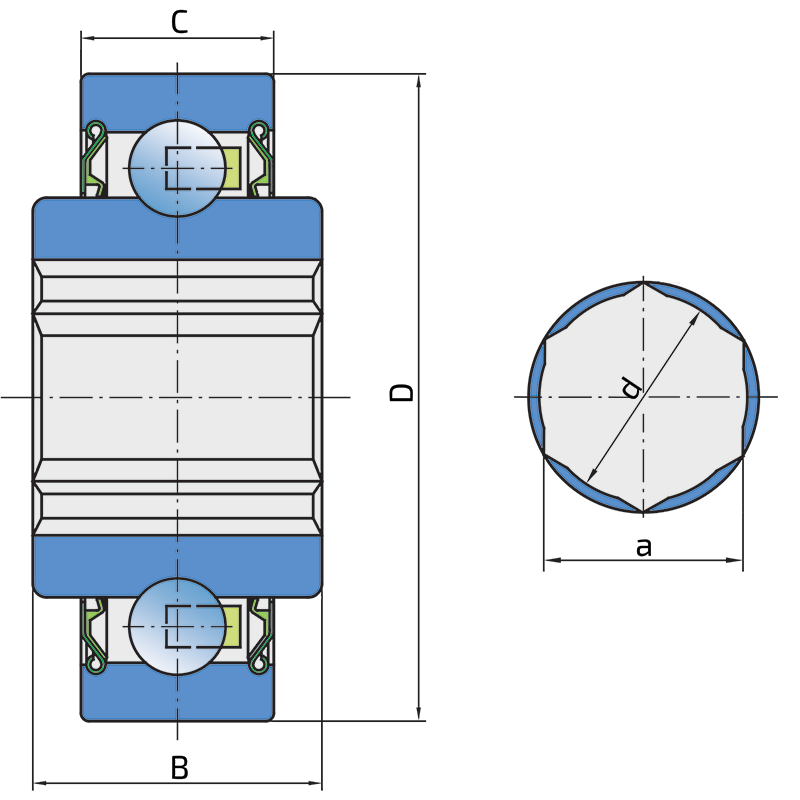

Technical datasheet:

D	Outside diameter	52
B	Width inner ring	25.4
C	Width outer ring	15
d1	Outer diameter inner ring	33.6
a	Shaft size	22.25
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
kg	Mass	0.2

Interchange:

OEM	Manufacturer	Comments
1AH05-7/8	NTN
1AH05-7/8LLM	NTN
205KRR2	PEER
205KRR2	PFI
205KRR2	FAFNIR
49436	NEW HOLLAND
842696M1	MASSEY FERGUSON
AA28271	JOHN DEERE
AE29876	JOHN DEERE
GA5116	KINZE
HPC014GP	BCA

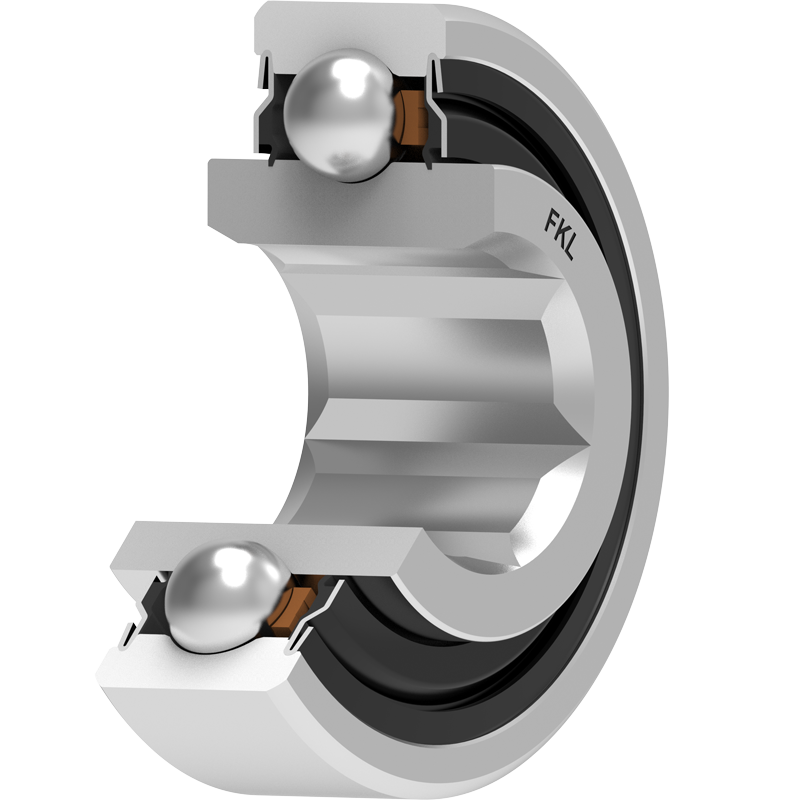

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
