205KRRB2 FKL

Technical datasheet:

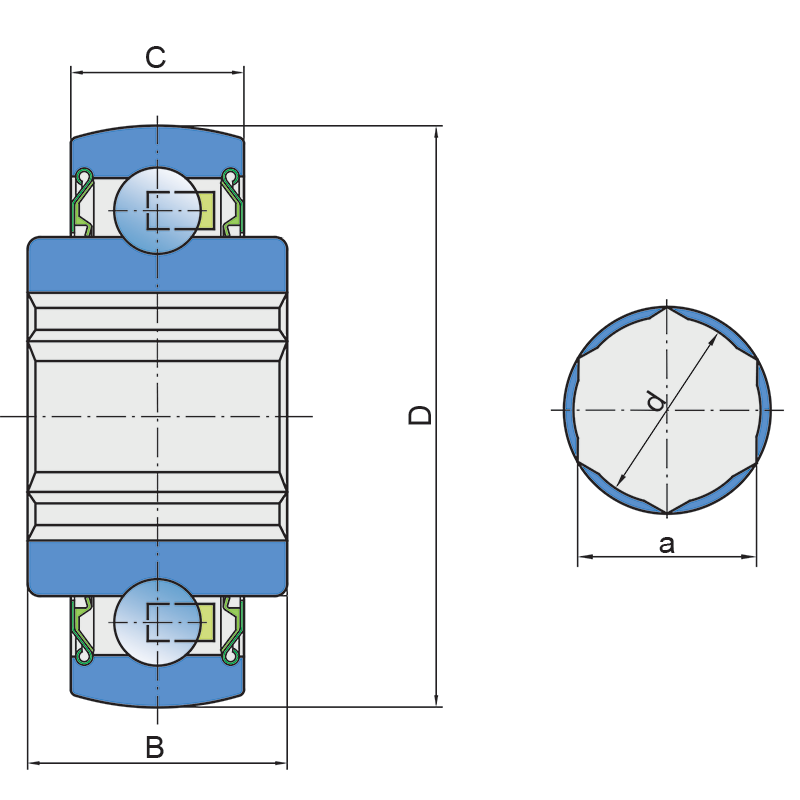

D	Outside diameter	52
B	Width inner ring	25.4
C	Width outer ring	15
d1	Outer diameter inner ring	33.6
a	Shaft size	22.25
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
kg	Mass	0.2

Interchange:

OEM	Manufacturer	Comments
195293C91	CASE
205KRRB.AH02	INA
205KRRB2	INA
205KRRB2	FAFNIR
205KRRB2	PEER
2AH05-7/8	NTN
2AH05-7/8LLM	NTN
380301A1	CASE
420905EL	HARP
50775	NEW HOLLAND
80049436	NEW HOLLAND
822-119C	GREAT PLAINS
86900821	CASE
86900821	NEW HOLLAND
87650438	NEW HOLLAND
AA22097	JOHN DEERE
G2100-03	KINZE
GA9846	KINZE	В корпусе С205
HPS014GP	BCA
JD9260	JOHN DEERE
P880-30-7	KUHN
SK014-205KRRB	INA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
