205PP13 FKL

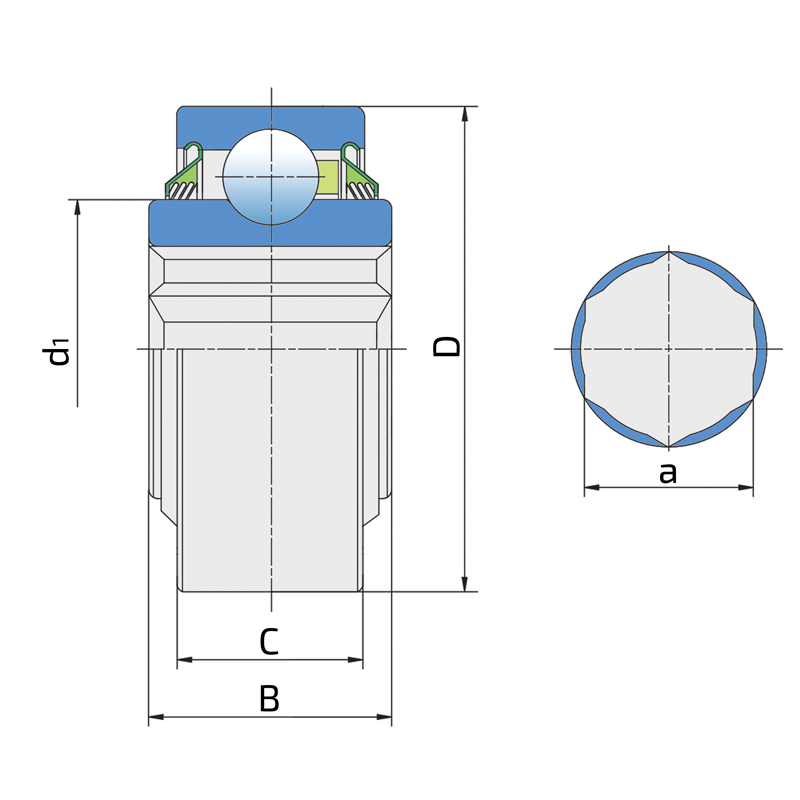

Technical datasheet:

D	Outside diameter	52
B	Width inner ring	25.4
C	Width outer ring	15
d1	Outer diameter inner ring	33.6
a	Shaft size	22.25
Cdyn	Dynamic load rating	14
Co	Static load rating	7.8
kg	Mass	0.2

Interchange:

OEM	Manufacturer	Comments
205PP13	INA

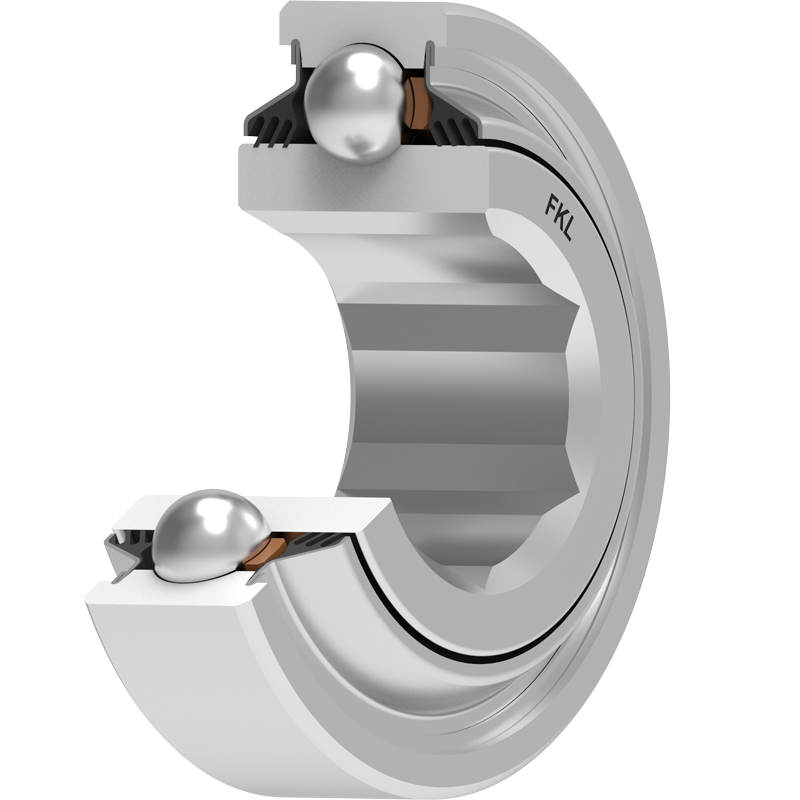

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
