Net price:
14.338 €/pcs
Main warehouse:
Product number:
206 KPP3
Brand:

Product name:
bearing
Sizes:
25.4X62X24/16
Replacements:
1AH06-1 V2
Inquiry
Subscribe
Product details from catalogue

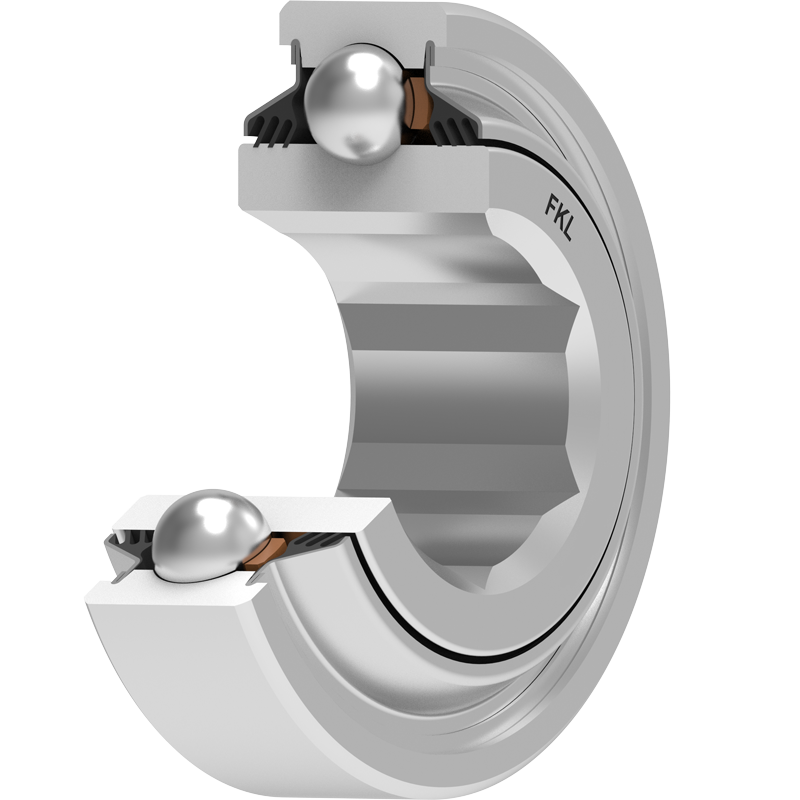

206KPP3 FKL

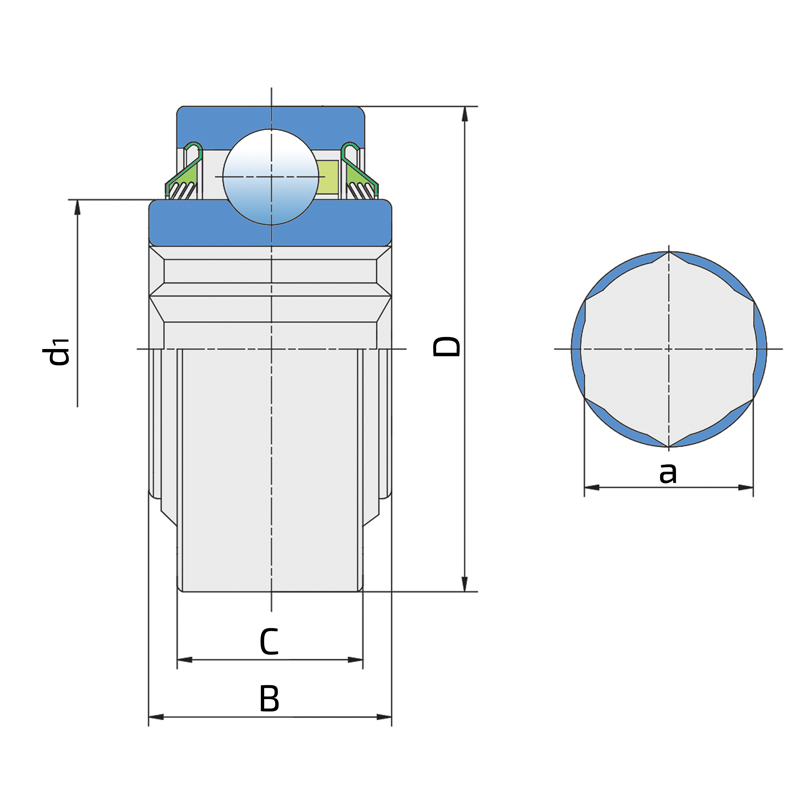

Technical datasheet:
| D |
Outside diameter |
62 |
| B |
Width inner ring |
24 |
| C |
Width outer ring |
16 |
| d1 |
Outer diameter inner ring |
39.7 |
| a |
Shaft size |
25.43 |
| kg |
Mass |
0.4 |
| Cdyn |
Dynamic load rating |
19.5 |
| Co |
Static load rating |
11.3 |
| Pu |
Fatigue load limit |
0.475 |
Interchange:
| OEM |
Manufacturer |
Comments |
| 1AH06-1LLSV9 |
NTN |
|
| 206KPP3 |
INA |
|
| SK100-206KRR.AH11 |
INA |
|
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
