206KPPB3 FKL

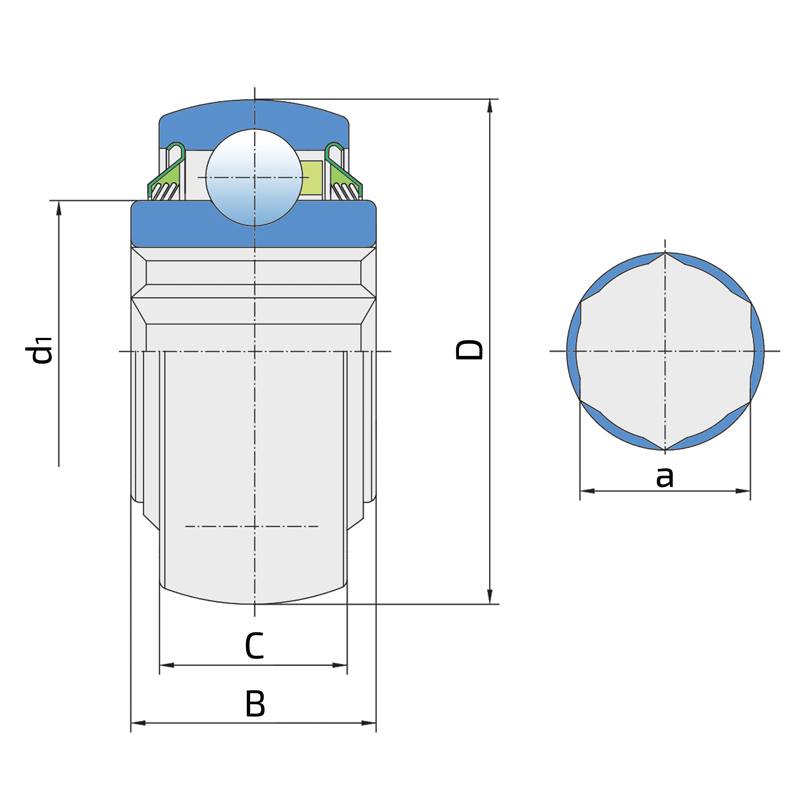

Technical datasheet:

D	Outside diameter	62
B	Width inner ring	24
C	Width outer ring	16
d1	Outer diameter inner ring	39.7
a	Shaft size	25.43
kg	Mass	0.4
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
Pu	Fatigue load limit	0.475

Interchange:

OEM	Manufacturer	Comments
206KPPB3	INA
206KRB6	INA
2AH06–1LLSV9	NTN
SK100-206KRRB.AH11	INA

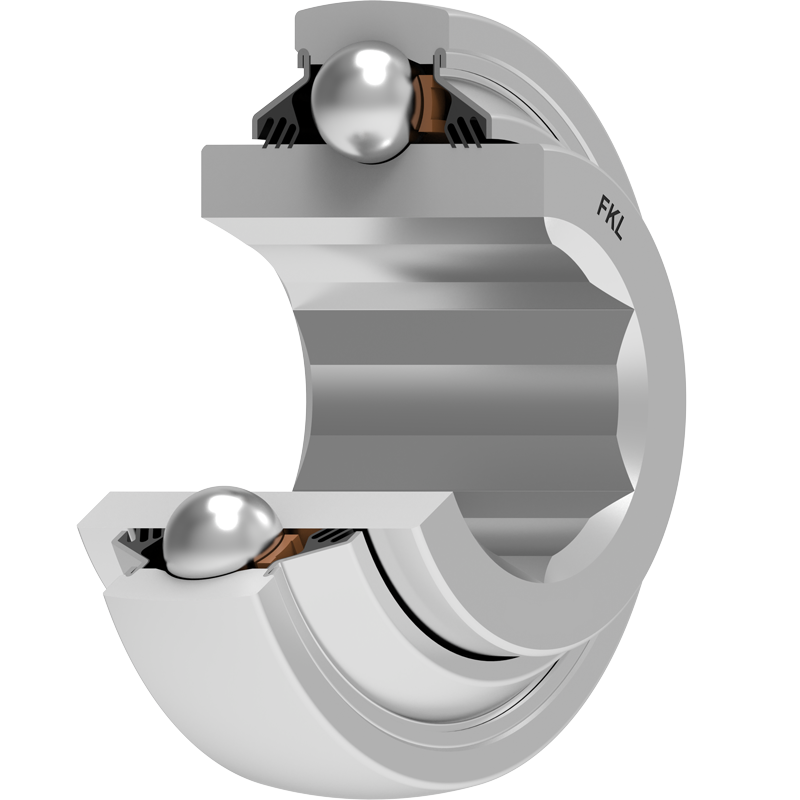

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
