206KRR6 FKL

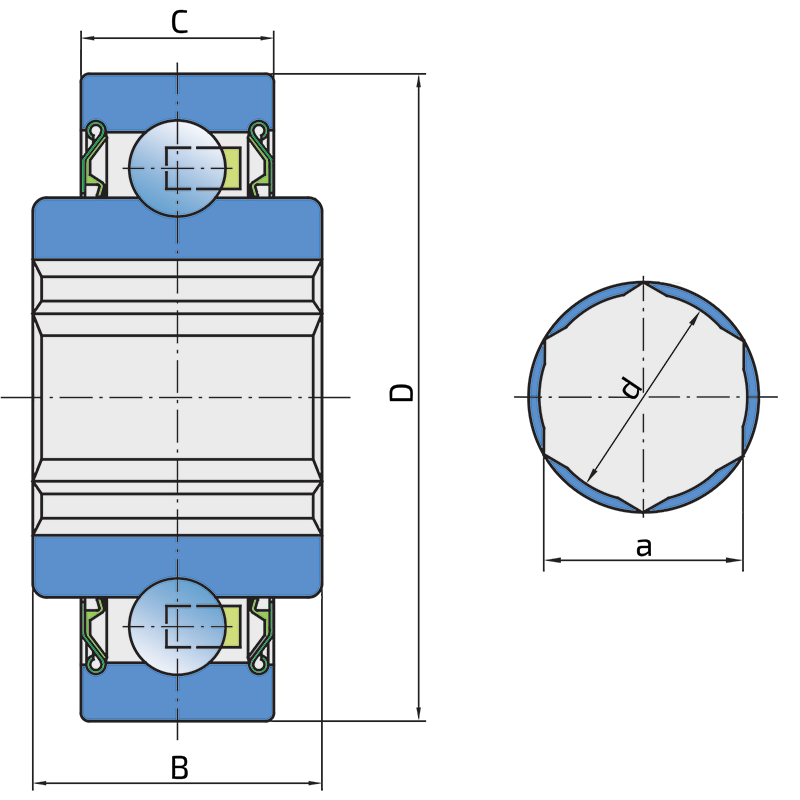

Technical datasheet:

D	Outside diameter	62
B	Width inner ring	24
C	Width outer ring	16
d1	Outer diameter inner ring	39.7
a	Shaft size	25.43
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
kg	Mass	0.34

Interchange:

OEM	Manufacturer	Comments
1AH06-1	NTN
1AH06-1LLS	NTN
1AH06-1LLSV9	NTN
1AH06-1LLX	NTN
1AH06-1V	NTN
206KRR6	INA
206KRR6	FAFNIR
HPC100GP	BCA
JD9338	JOHN DEERE
SK100-206-KRR-AH11	INA
SK100-206KRR.AH11	INA

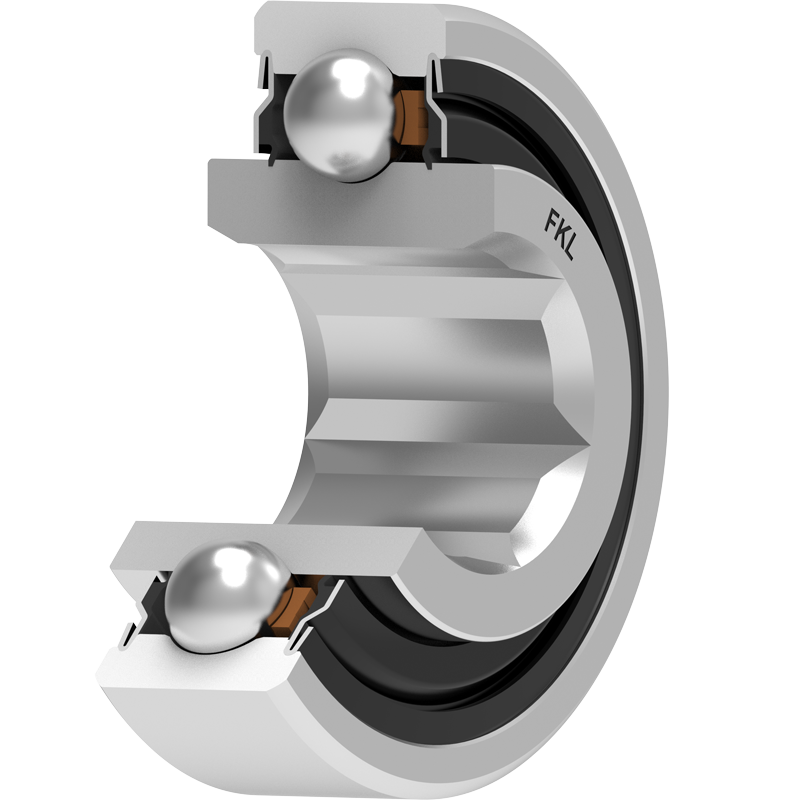

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
