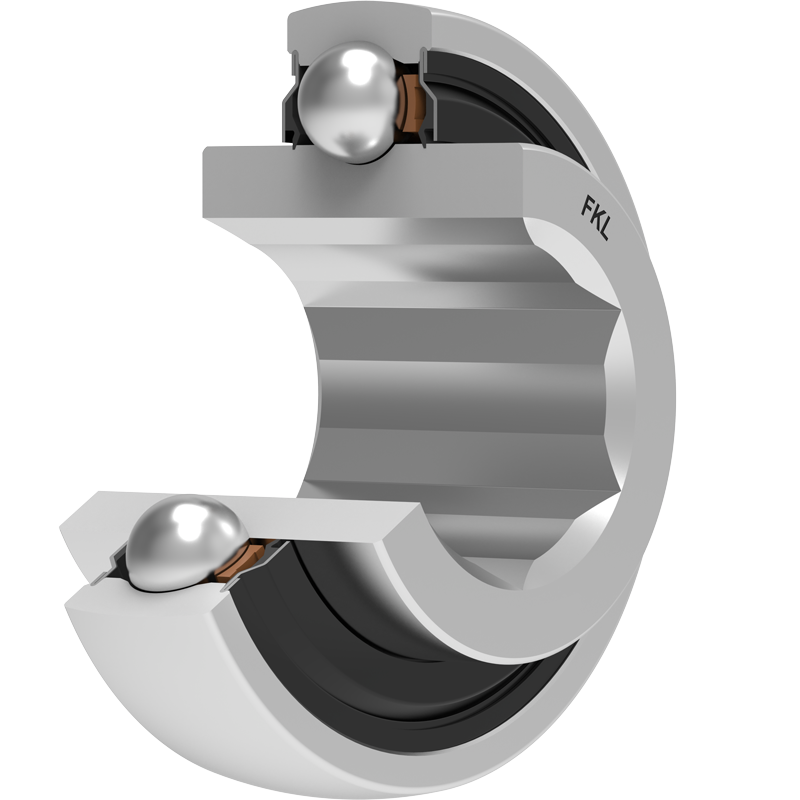

206KRRB6 FKL

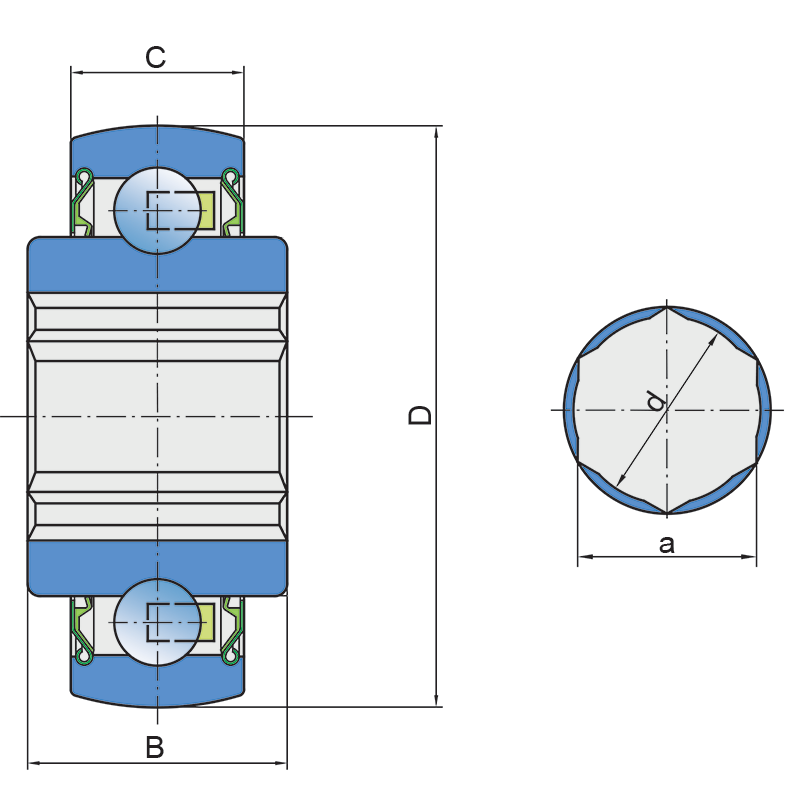

Technical datasheet:

D	Outside diameter	62
B	Width inner ring	24
C	Width outer ring	16
d1	Outer diameter inner ring	39.7
a	Shaft size	25.43
Cdyn	Dynamic load rating	19.5
Co	Static load rating	11.3
kg	Mass	0.34

Interchange:

OEM	Manufacturer	Comments
135241	NEW HOLLAND
203389C91	CASE
206KRRB6	FAFNIR
206KRRB6	FAFNIR
206KRRB6	INA
211587C91	CASE
2AH06-1	NTN
2AH06-1	NTN
2AH06-1/L	NTN
2AH06-1LLX	NTN
84330028	CASE
HPS100GP	BCA
JD9313	JOHN DEERE
JD9407	JOHN DEERE
SK100-206KRRB.AH11	INA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
