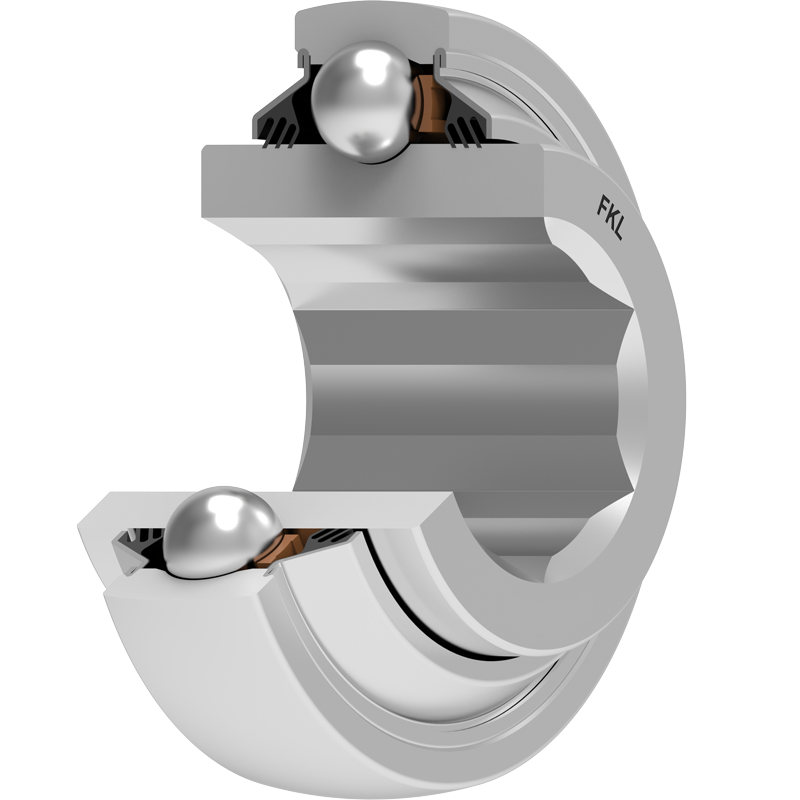

207KPPB3 FKL

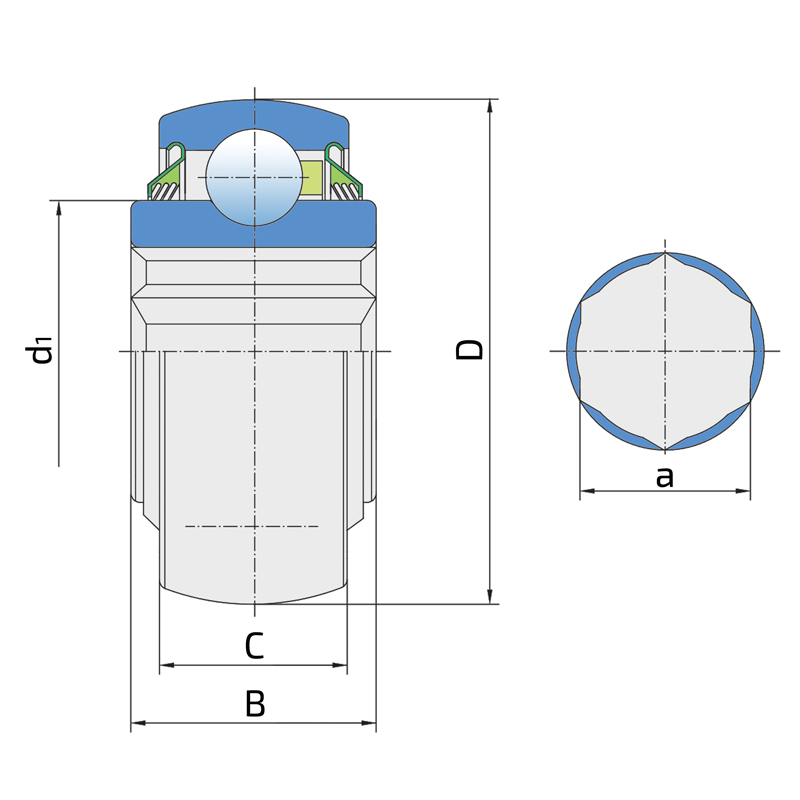

Technical datasheet:

D	Outside diameter	80
B	Width inner ring	36.5
C	Width outer ring	18
d1	Outer diameter inner ring	52
a	Shaft size	31.78
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
kg	Mass	0.4

Interchange:

OEM	Manufacturer	Comments
207KPPB3	INA

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
