207KPPB9 FKL

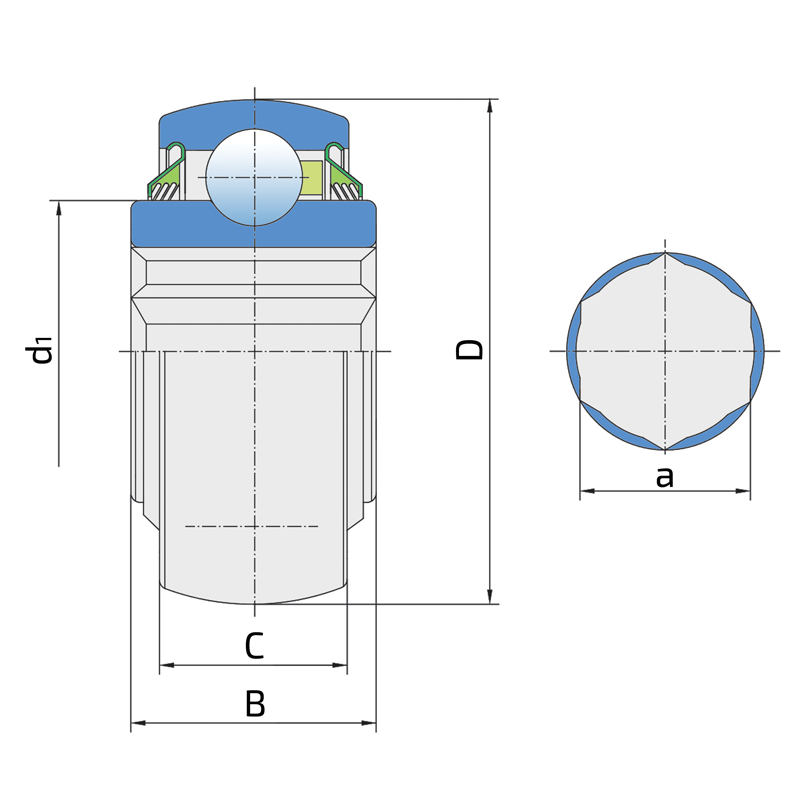

Technical datasheet:

D	Outside diameter	72
B	Width inner ring	37.7
C	Width outer ring	17
d1	Outer diameter inner ring	46.1
a	Shaft size	28.6
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
kg	Mass	0.45

Interchange:

OEM	Manufacturer	Comments
207KPPB9	INA

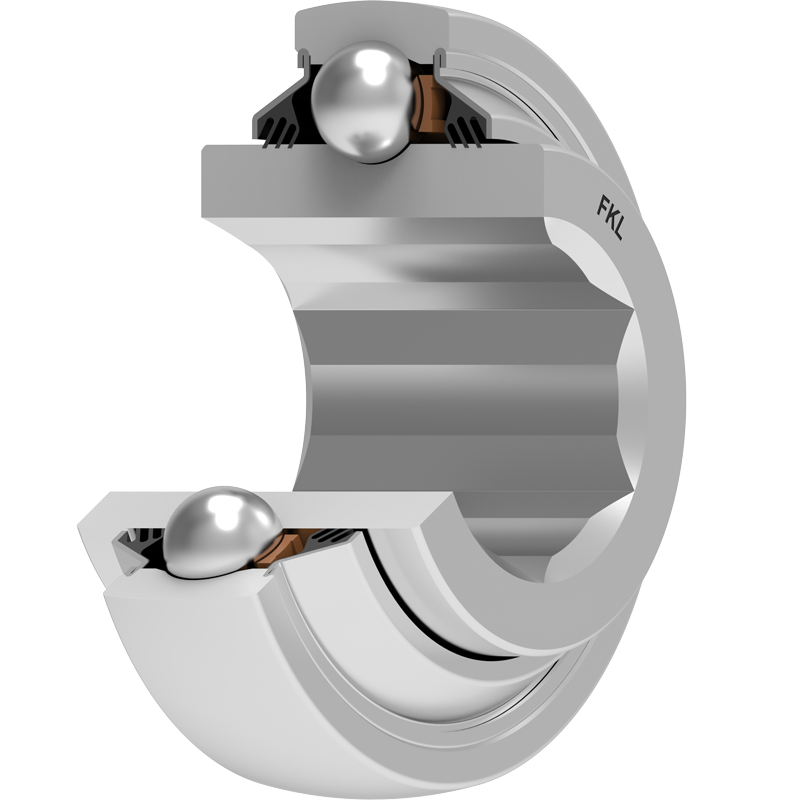

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
