Product number:

207 KRRB12

Brand:

Product name:

bearing

Sizes:

28.575X72X25/17

Suffixes:

KRRB - domború külsõ gyûrû, lemzzel védett tömítés

Replacements:

199209C91 SBX 07A25 LLM C3/Q1 AN102010 JD-AN102010

Inquiry Subscribe

207KRRB12 FKL

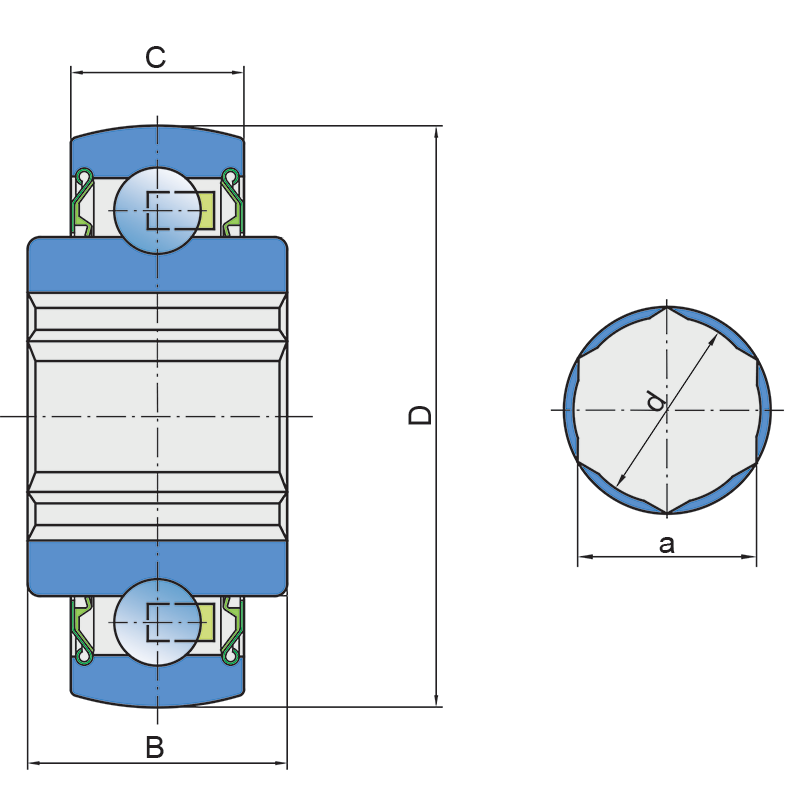

Technical datasheet:

D	Outside diameter	72
B	Width inner ring	25
C	Width outer ring	17
d1	Outer diameter inner ring	46.1
a	Shaft size	28.6
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
kg	Mass	0.4

Interchange:

OEM	Manufacturer	Comments
156816C91	CASE
207KRRB12	FAFNIR
207KRRB12	PEER
207KRRB12	INA
2AH07 1 1/8	NTN
87376564	CASE
AN102010	JOHN DEERE
SBX07A25LLMC3	NTN

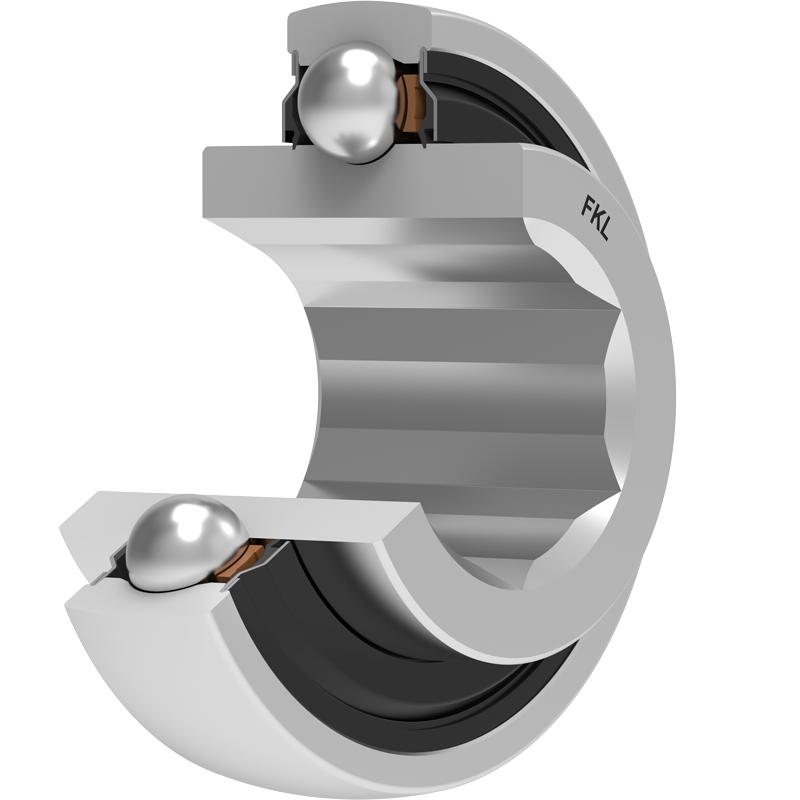

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
