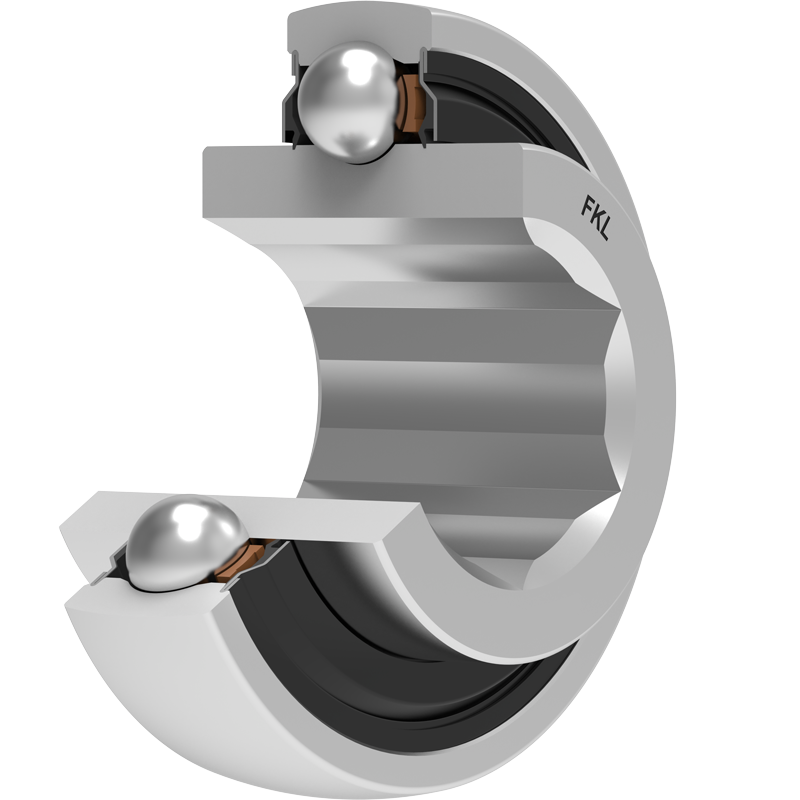

207KRRB12C19 FKL

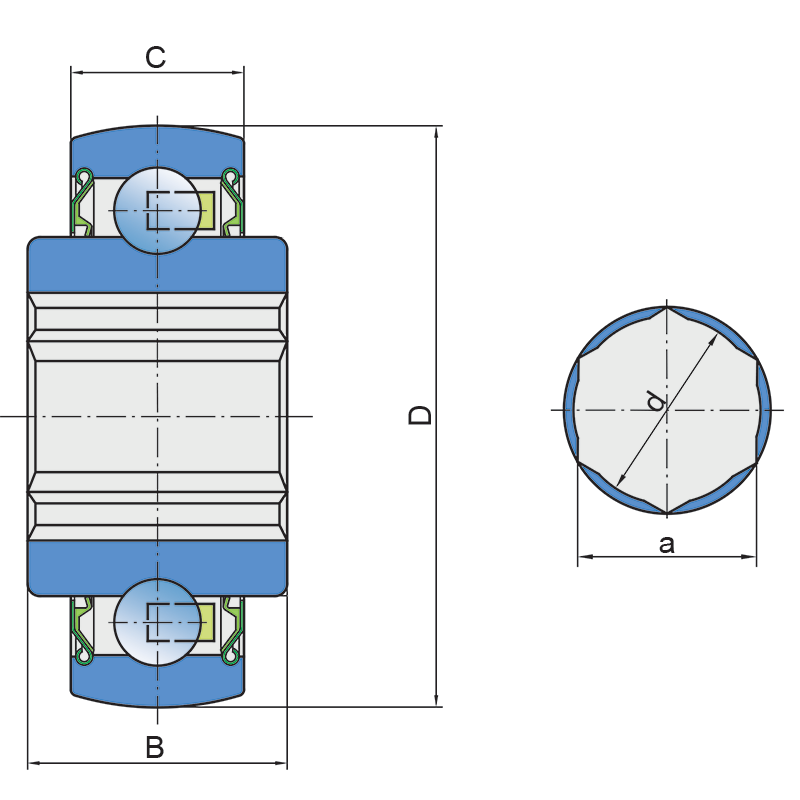

Technical datasheet:

D	Outside diameter	72
B	Width inner ring	25
C	Width outer ring	17
d1	Outer diameter inner ring	46.1
a	Shaft size	28.6
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
kg	Mass	0.42

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
