Product number:

207 KRRB9

Brand:

Product name:

bearing

Sizes:

28.575X72X17/37.6

Suffixes:

KRRB - domború külsõ gyûrû, lemzzel védett tömítés

Replacements:

JD9457 JOHN DEERE 18K207N LINKBELT 121602 NEW HOLLAND 2AH07-1 1/8 NTN 207 KRRB AH09 F-45802 SK102-207 KRRB AH10

Inquiry Subscribe

207KRRB9 FKL

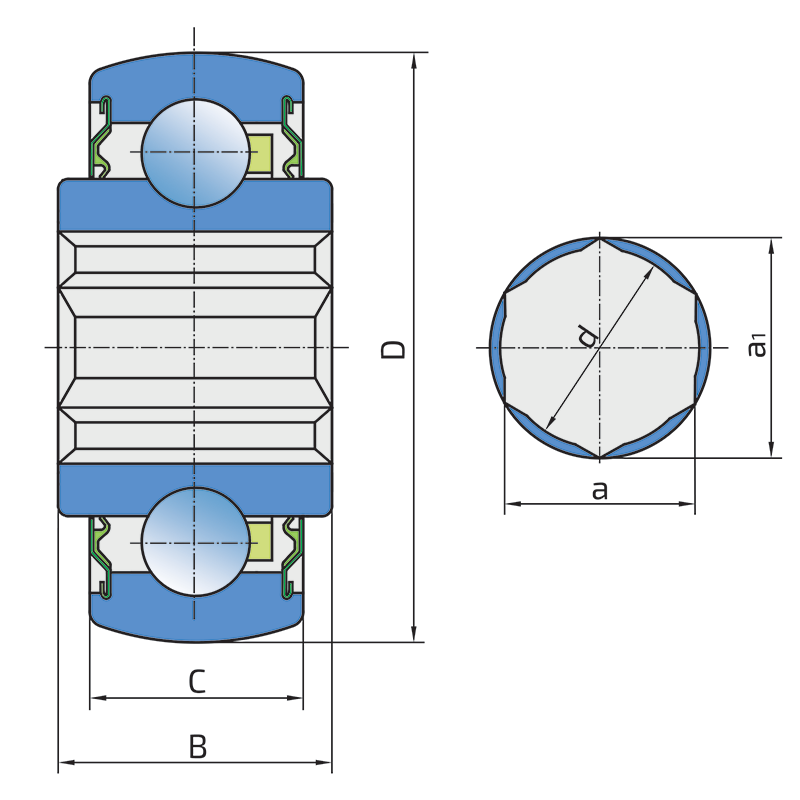

Technical datasheet:

a	Size of the hexagon	28.6
a1	Diagonal of the hexagon	32.95
d	Bore diameter	29.3
D	Outside diameter	72
B	Width inner ring	37.7
C	D-shape hole cut out dimension	17
kg	Mass	0.51
Cdyn	Dynamic load rating	25.5
Co	Static load rating	15.3
Pu	Fatigue load limit	0.643

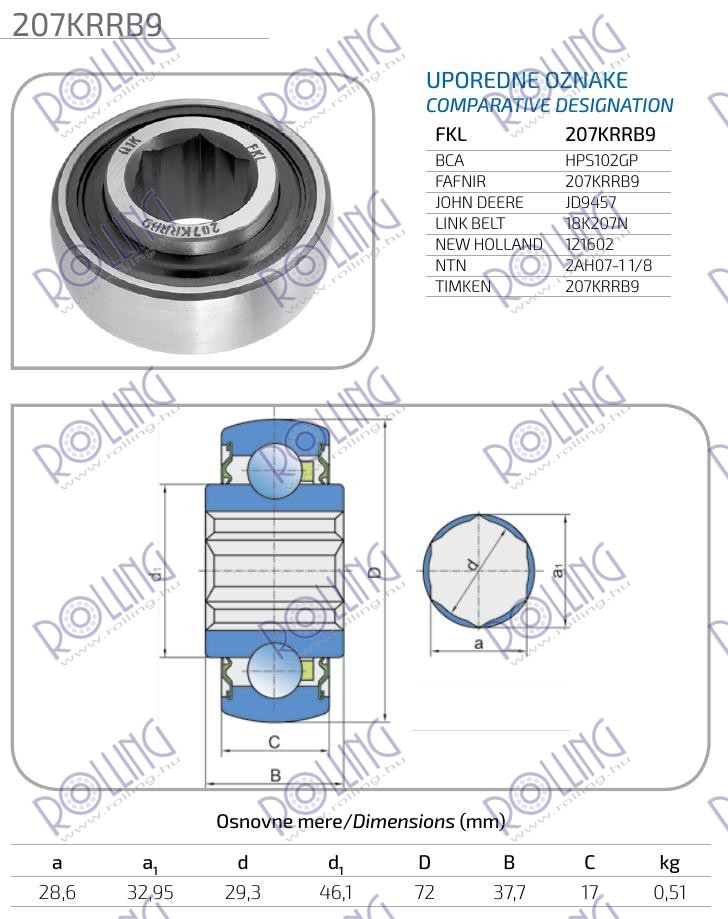

Interchange:

OEM	Manufacturer	Comments
121602	NEW HOLLAND
18K207N	LINK BELT
207KRRB9	TIMKEN
207KRRB9	FAFNIR
2AH07-1 1/8	NTN
AH07-1.1/8D1	NTN
HPS102GP	BCA
JD9457	JOHN DEERE
SBX0787LLS.C4	NTN
SK102-207KRRB.AH10	INA

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
