209KPPB2 FKL

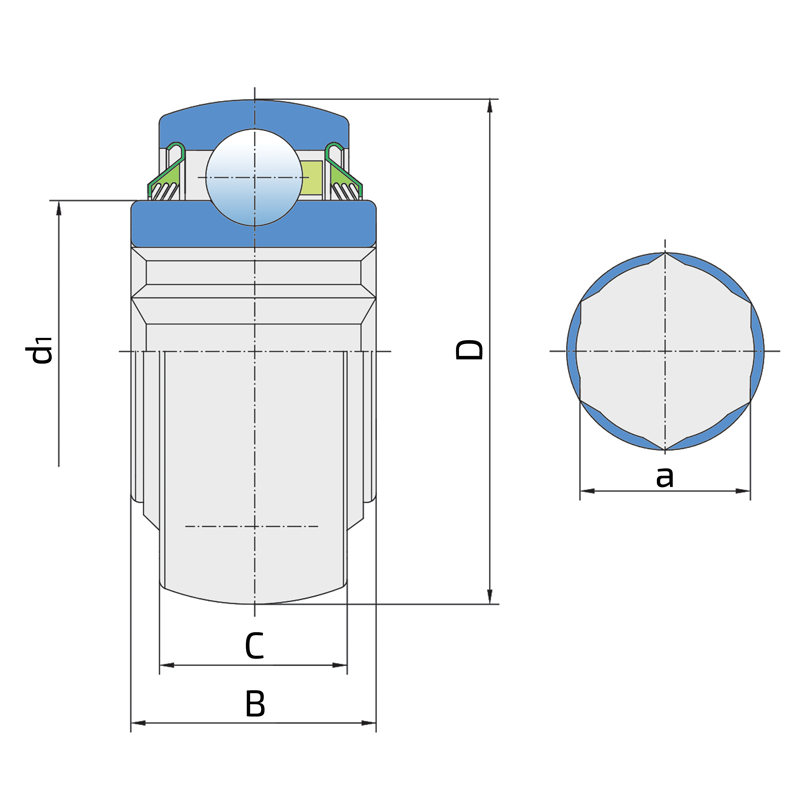

Technical datasheet:

D	Outside diameter	85
B	Width inner ring	30
C	Width outer ring	19
d1	Outer diameter inner ring	56.6
a	Shaft size	38.12
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
kg	Mass	0.58

Interchange:

OEM	Manufacturer	Comments
209KPPB2	INA

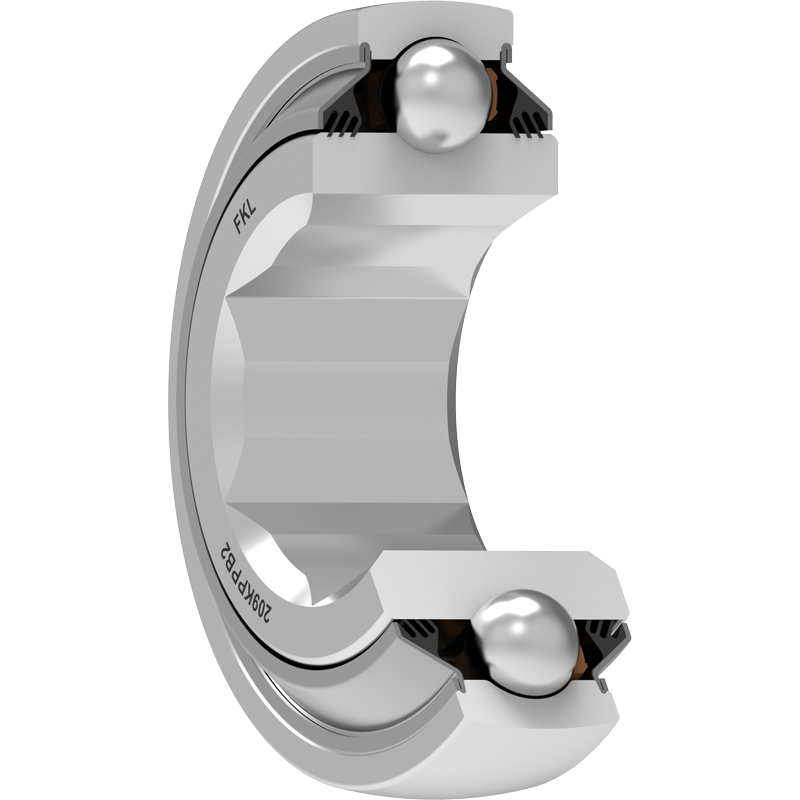

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
