Product number:

209 KRRB2

Brand:

Product name:

megszûnt

Sizes:

38.12X85X30/19

Suffixes:

KRRB - domború külsõ gyûrû, lemzzel védett tömítés

Replacements:

209 KPPB2 179665C91 AE40895 JOHN DEERE 2AH09-1.1/2 SBX 0977 C3/L014Q1 HPS108GPH 24K209N 179665C91 IHC 700703197 HESTON 286909 NEW HOLLAND SBX09A95 LLX C3/Q1 SBX09A95 LLX C3 SBX 09A82 LLU C3 SBX 09A82 LLU C3*NTN SBX 0977 C3 179665C91 CASE

Inquiry Subscribe

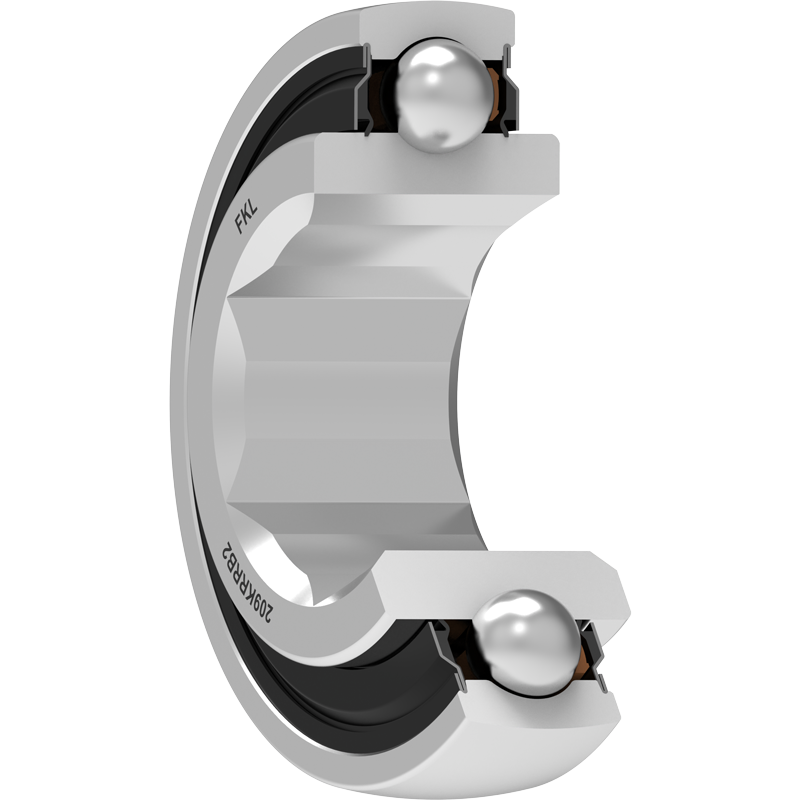

209KRRB2 FKL

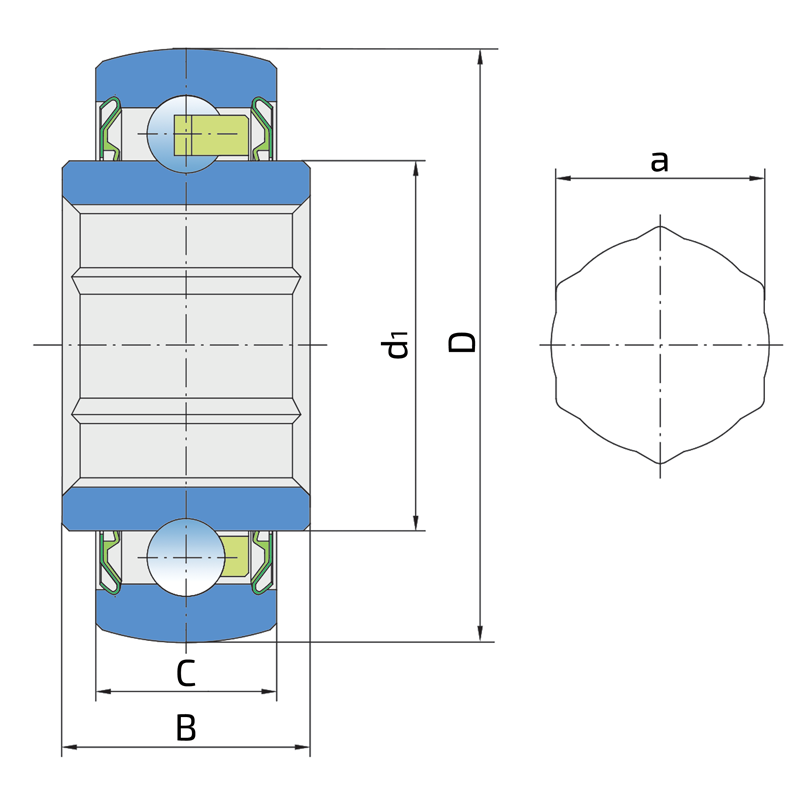

Technical datasheet:

D	Outside diameter	85
B	Width inner ring	30
C	Width outer ring	19
d1	Outer diameter inner ring	56.8
a	Shaft size	38.12
kg	Mass	0.58
Cdyn	Dynamic load rating	32.5
Co	Static load rating	20.4
Pu	Fatigue load limit	0.857

Interchange:

OEM	Manufacturer	Comments
179665C91	CASE
209KRRB2	INA
209KRRB2	FAFNIR
209KRRB2	PFI
286909	NEW HOLLAND
2AH09-1.1/2	NTN
2AH09-1.1/2D1	NTN
80286909	AMAZONE
84330027	AMAZONE
AE40895	JOHN DEERE
F234795	INA
HPS108GPA	NEW HOLLAND
HPS108GPH	BCA
SBX09A82LLM	NTN
SBX09A82LLMC3	NTN
SBX09A95LLXC3	NTN

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
