210RRB6 FKL

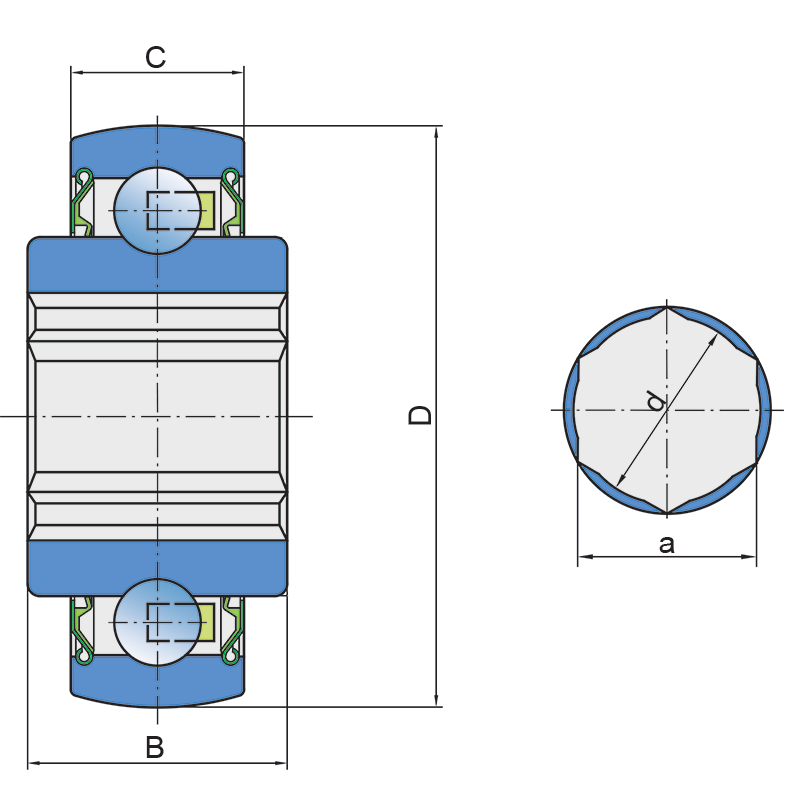

Technical datasheet:

D	Outside diameter	90
B	Width inner ring	30
C	Width outer ring	22
d1	Outer diameter inner ring	62.5
a	Shaft size	38.12
Cdyn	Dynamic load rating	35
Co	Static load rating	23.2
kg	Mass	0.8

Interchange:

OEM	Manufacturer	Comments
210KRRB.AH02	INA
210RRB6	FAFNIR
210RRB6	INA
A-HPS108GPB	JOHN DEERE
AE42880	JOHN DEERE
BP13043A	TIMKEN
G210KPPB2	PEER
HPS108GPB-I	BCA
SBX10-A02.LLM	NTN

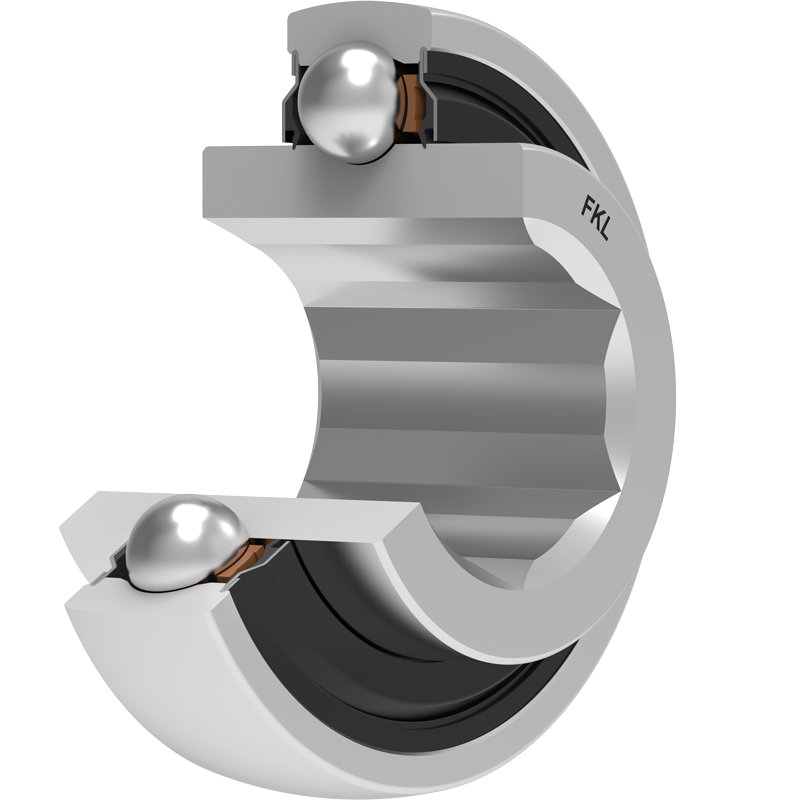

S SEAL / S SEAL (2S)

Single lip seal with the labyrinth between the sheet part and the rubber lip which conducts the contact sealing. The friction and speeds are the same as with RS but provides much better protection against the rough impurity particles. This is very good sealing system: the sheet part protects the seal from the soil, dust and rough particles. At the same time makes the labyrinth with the rubber part. The rubber part provides contact sealing which prevents penetration of finer impurities, water, moisture, steam etc. Suitable for neutral conditions because of the presence of the foreign materials. It is used with the Y bearing (standard) and deep groove ball bearings.
