Product number:

306230

Brand:

Product name:

bearing

Sizes:

30X62X30

Replacements:

3198760 LEMKEN 575093

Inquiry Subscribe

306230 FKL

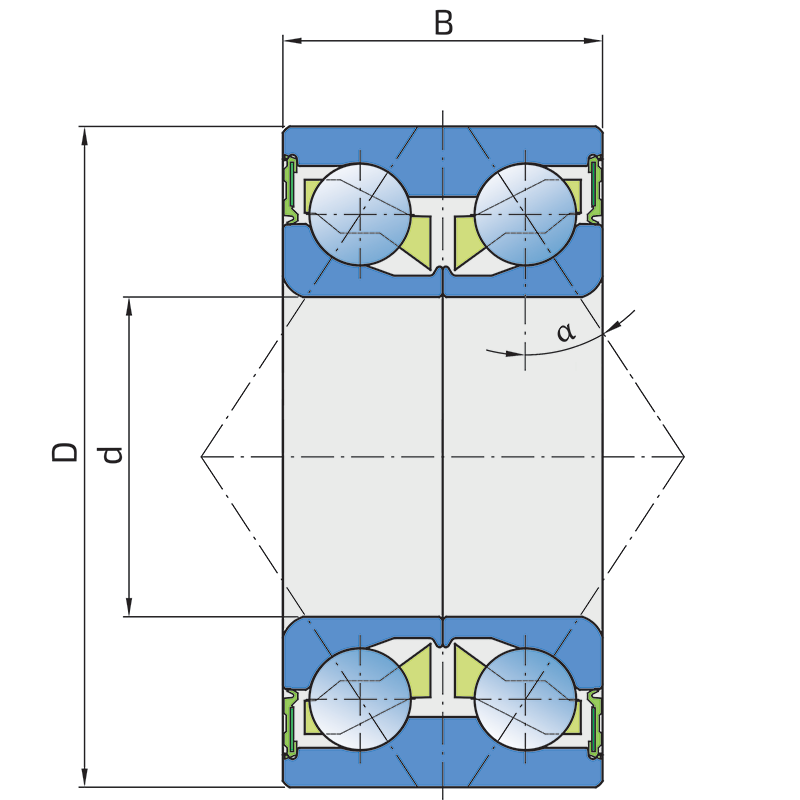

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	30
α	Contact angle	34
kg	Mass	0.39
Cdyn	Dynamic load rating	37.5
Co	Static load rating	26.5
Pu	Fatigue load limit	1.113

Interchange:

OEM	Manufacturer	Comments
3198760	LEMKEN

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
