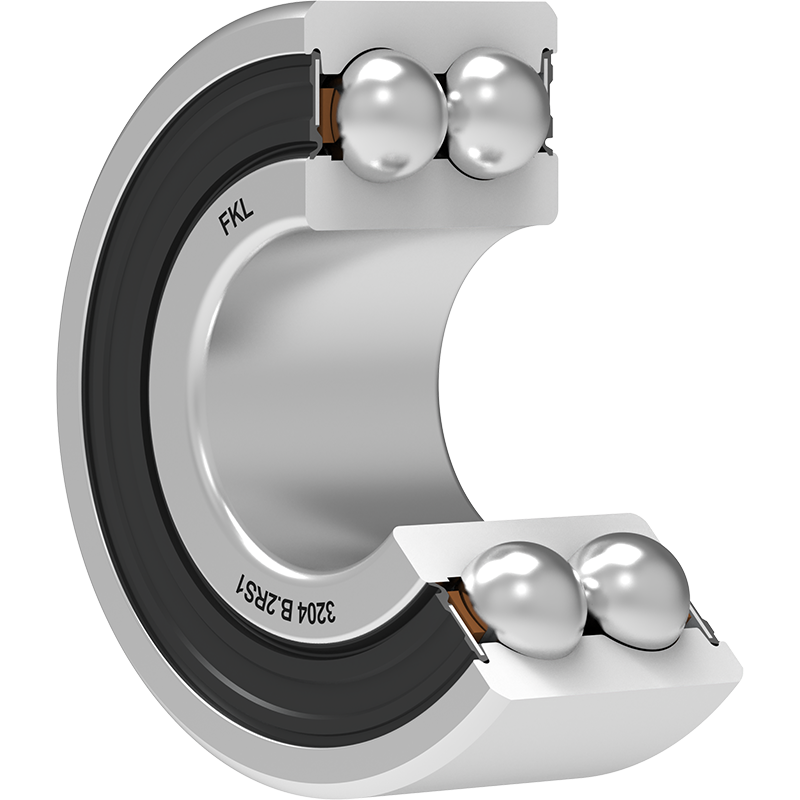

3204 B.2RS1 FKL

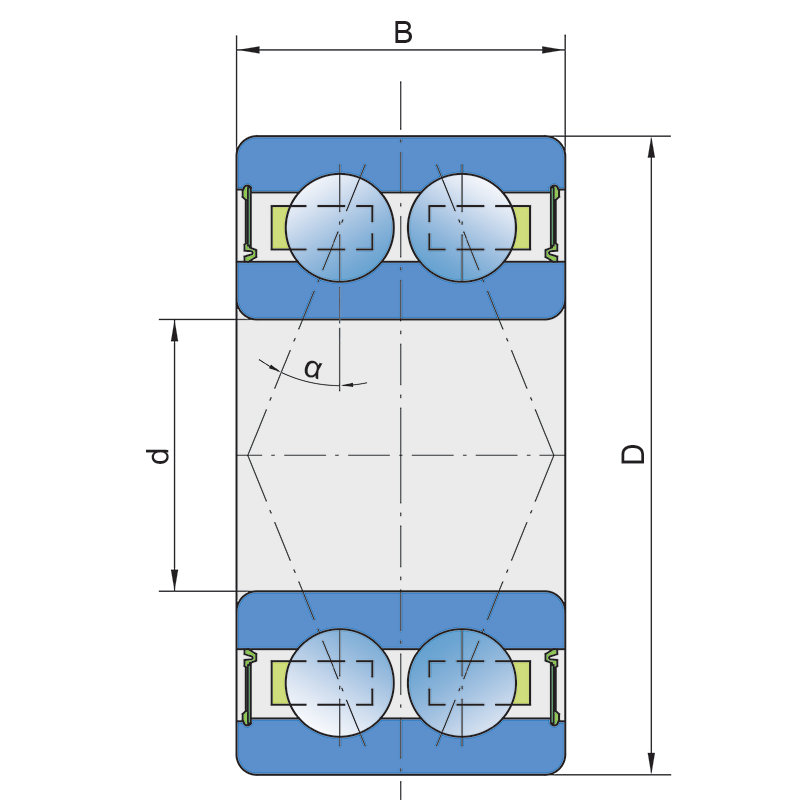

Technical datasheet:

d	Bore diameter	20
D	Outside diameter	47
B	Width inner ring	20.6
α	Contact angle	25
kg	Mass	0.16
Cdyn	Dynamic load rating	18.8
Co	Static load rating	12.6
Pu	Fatigue load limit	0.51

Interchange:

OEM	Manufacturer	Comments
10161020	MONOSEM
7014A	MONOSEM
AC671262	KVERNELAND
EMS000676R	GASPARDO
JD9243T	JOHN DEERE
TM-5204LLU	SNR

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
