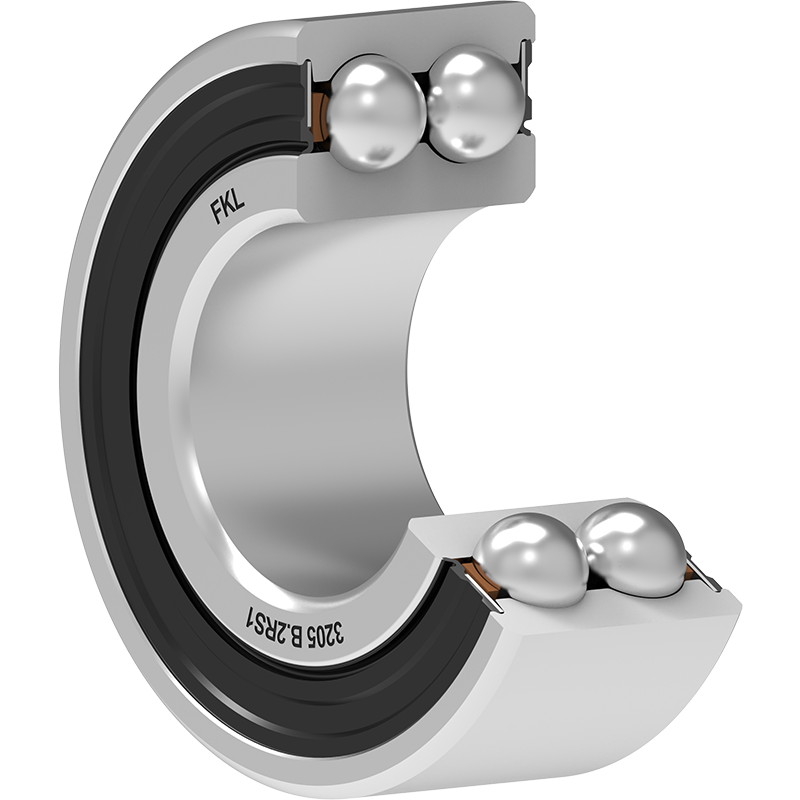

3205 B.2RS1 FKL

Technical datasheet:

Cdyn	Dynamic load rating	21.6
Co	Static load rating	14.3
D	Outside diameter	52
d	Bore diameter	25
kg	Mass	0.18
B	Width inner ring	20.6
α	Contact angle	25
Pu	Fatigue load limit	0.6

Interchange:

OEM	Manufacturer	Comments
3198708	LEMKEN
3205A-2Z-TN9.MT33	SKF
3205A.2RS1-TN9	SKF
3205BD-2HRS-TVH	FAG
3205BDXL-2HRS-TVH	INA
5205EEG15	SNR
AZ64070	JOHN DEERE

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
