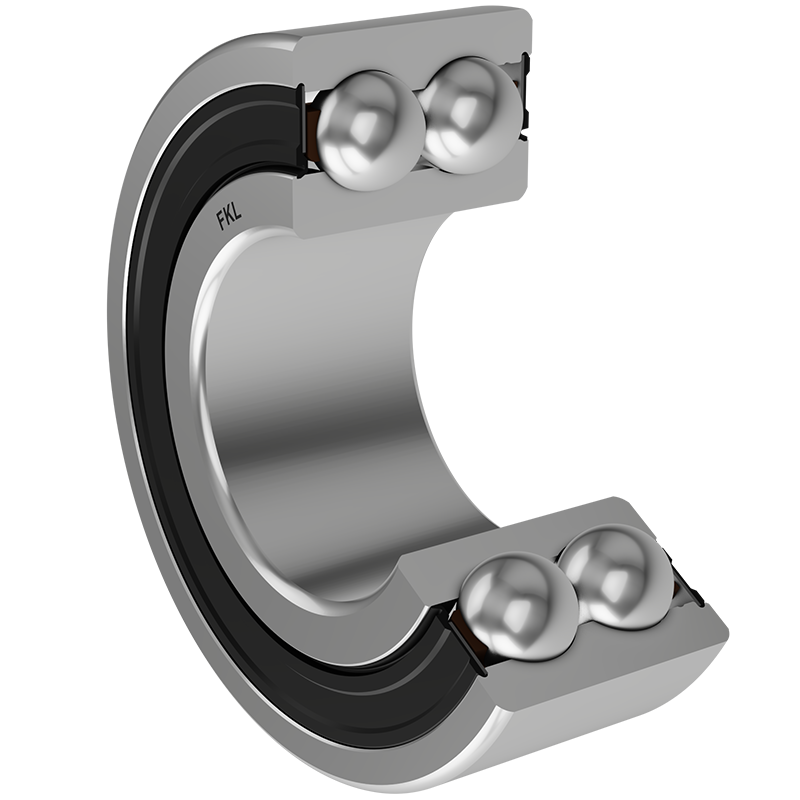

3206 B.2RS1 FKL

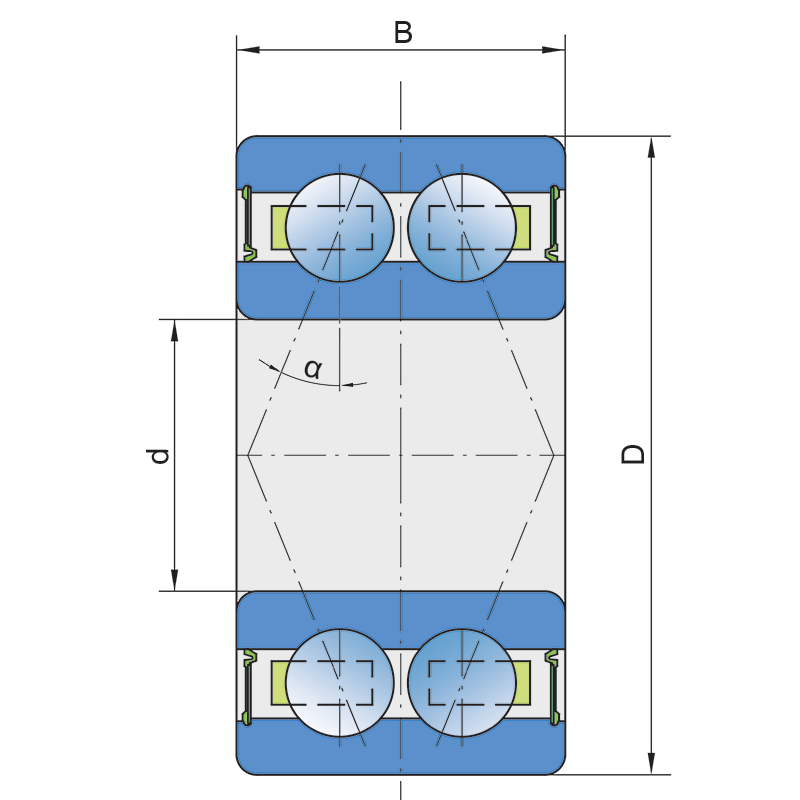

Technical datasheet:

d	Bore diameter	30
D	Outside diameter	62
B	Width inner ring	23.8
α	Contact angle	30
kg	Mass	0.285
Cdyn	Dynamic load rating	31
Co	Static load rating	22.2
Pu	Fatigue load limit	0.87

Interchange:

OEM	Manufacturer	Comments
00240161	HORSCH
3056206	GPZ
3206-BD-XL-2HRS-TVH	FAG
3206A-2RS-TN9.MT33	SKF
3206A.2RS1-TN9	SKF
405814	VADERSTAD
5206C-LLU	NTN
5206EEG15	SNR
AC671261	KVERNELAND
CC010	AMAZONE	подшипник диска

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
