Product number:

3209 NPPB AH02

Brand:

Product name:

bearing

Sizes:

45X90X30.2

Suffixes:

NPPB - Két oldalt tömített, domború palást

Replacements:

3209 NPPB2 AZ37467 JOHN DEERE 3209 NPP-B-AH02

Inquiry Subscribe

3209 NPPB.AH02 FKL

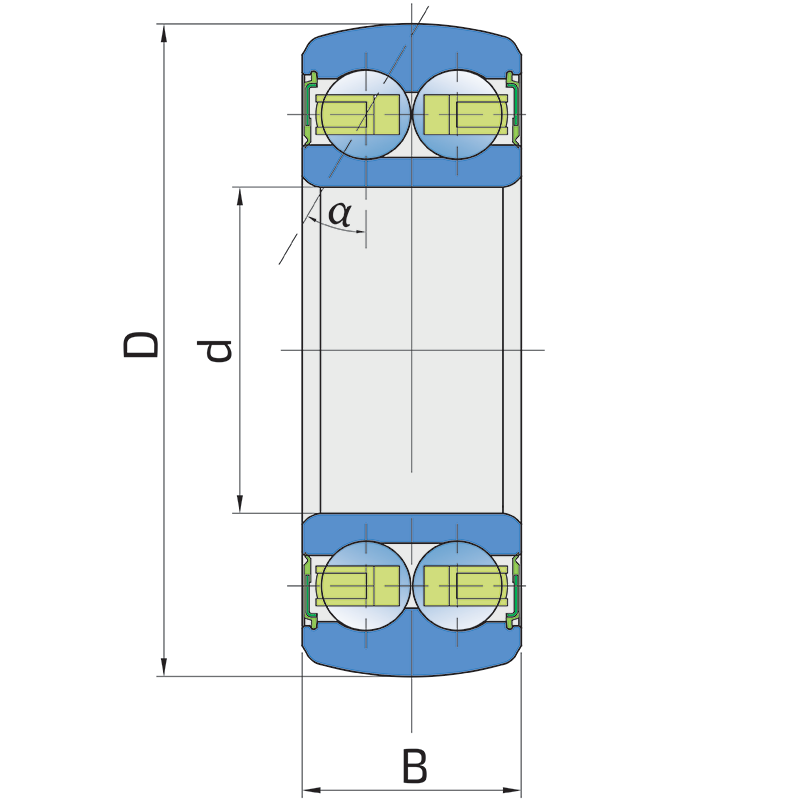

Technical datasheet:

d	Bore diameter	45
D	Outside diameter	90
B	Width inner ring	30.2
α	Contact angle	30
kg	Mass	0.63
Cdyn	Dynamic load rating	51
Co	Static load rating	39
Pu	Fatigue load limit	1.638

Interchange:

OEM	Manufacturer	Comments
3209NPPBAH02	INA
AZ37467	JOHN DEERE

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
