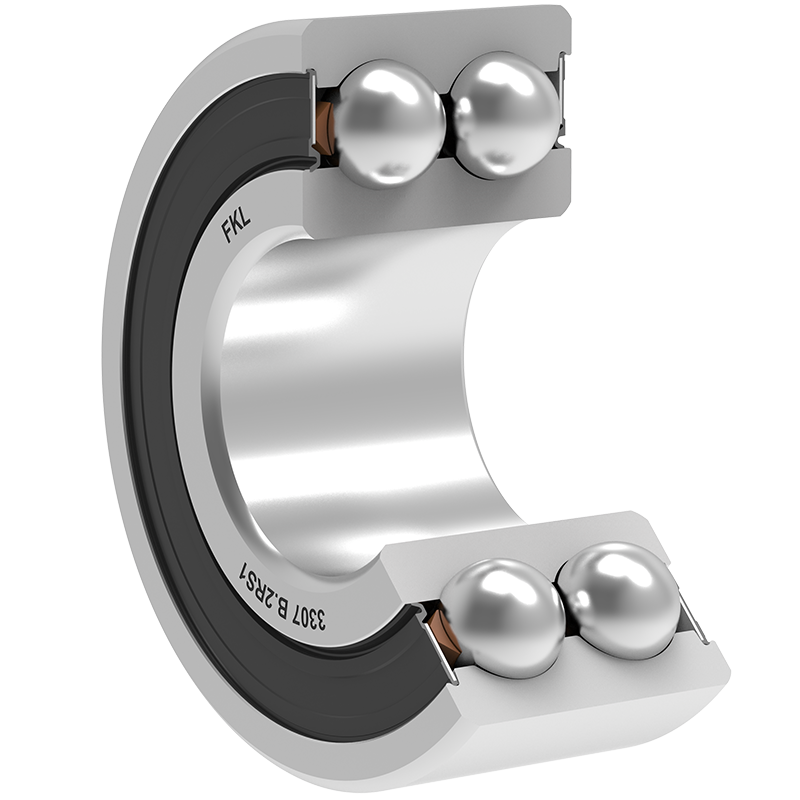

3307 B.2RS1 FKL

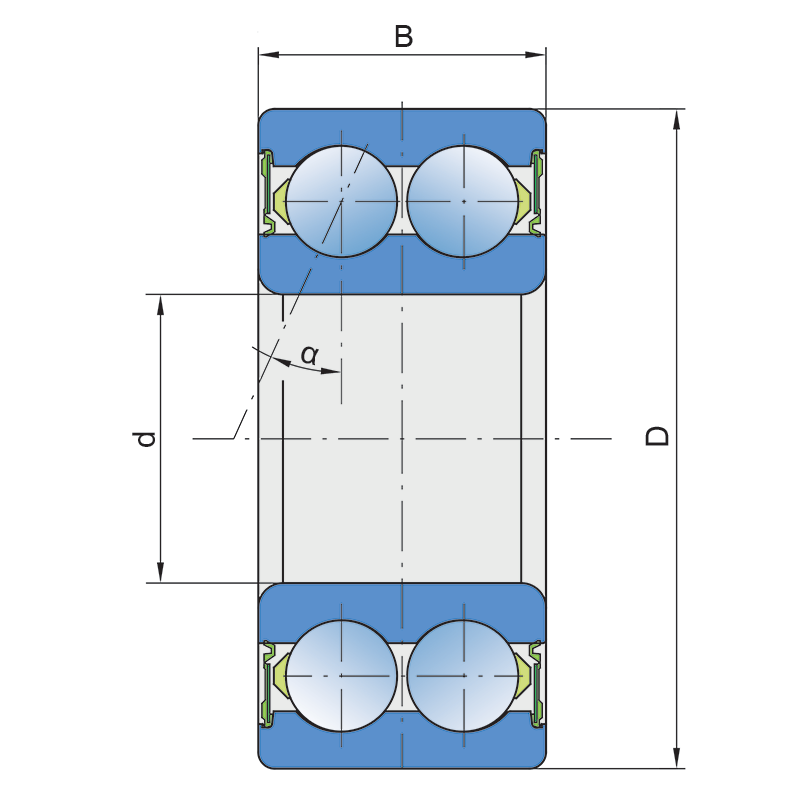

Technical datasheet:

d	Bore diameter	35
D	Outside diameter	80
B	Width inner ring	34.9
α	Contact angle	25
kg	Mass	0.7
Cdyn	Dynamic load rating	48.8
Co	Static load rating	35.3
Pu	Fatigue load limit	1.5

Interchange:

OEM	Manufacturer	Comments
00240189	HORSCH
00240213	HORSCH
3307-BD-XL-2HRS-TVH	INA
3307A-2RS1-TN9.MT33	SKF
3307B-2RS.TNG	NSK
3307BD-2HRS-TVH	FAG
5307C-LLU	NTN
5307EEG15	SNR
CC014	AMAZONE

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
