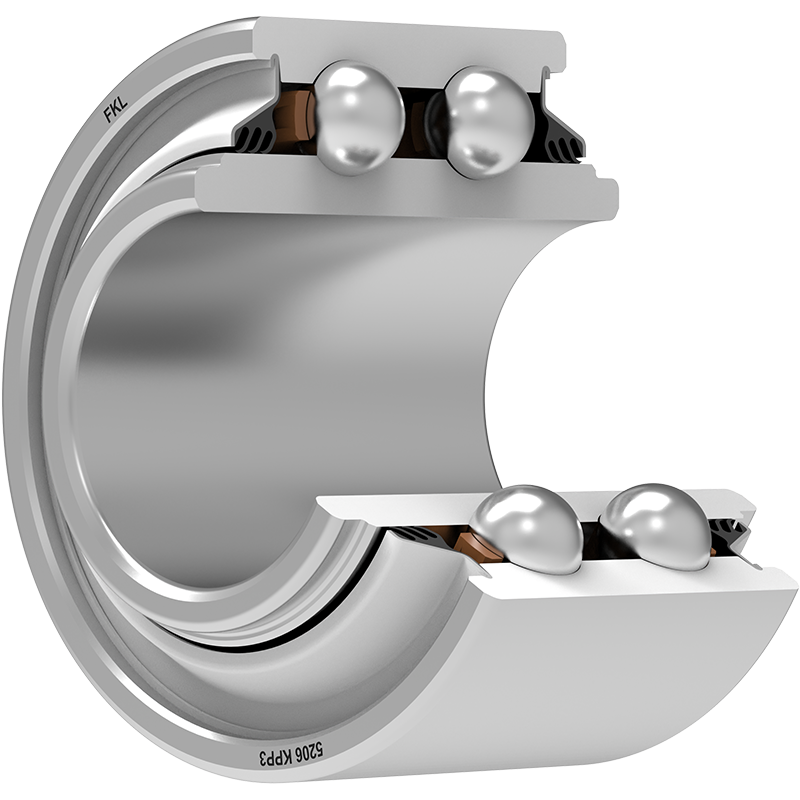

5206 KPP3 FKL

Technical datasheet:

Cdyn	Dynamic load rating	28.7
Co	Static load rating	21.8

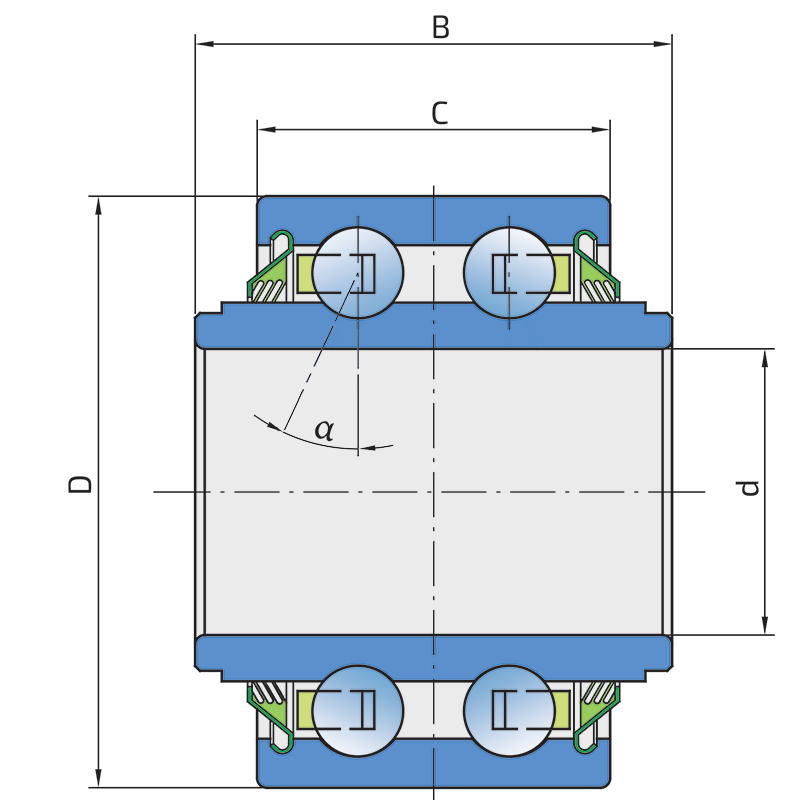

D	Outside diameter	62
d	Bore diameter	30.15
C	D-shape hole cut out dimension	37
kg	Mass	0.5
B	Width inner ring	50
α	Contact angle	25

Interchange:

OEM	Manufacturer	Comments
5206KPP3	FAFNIR
5206KPP3	PEER
822-215C	GREAT PLAINS
GA8603	KINZE
GA8641	KINZE

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
